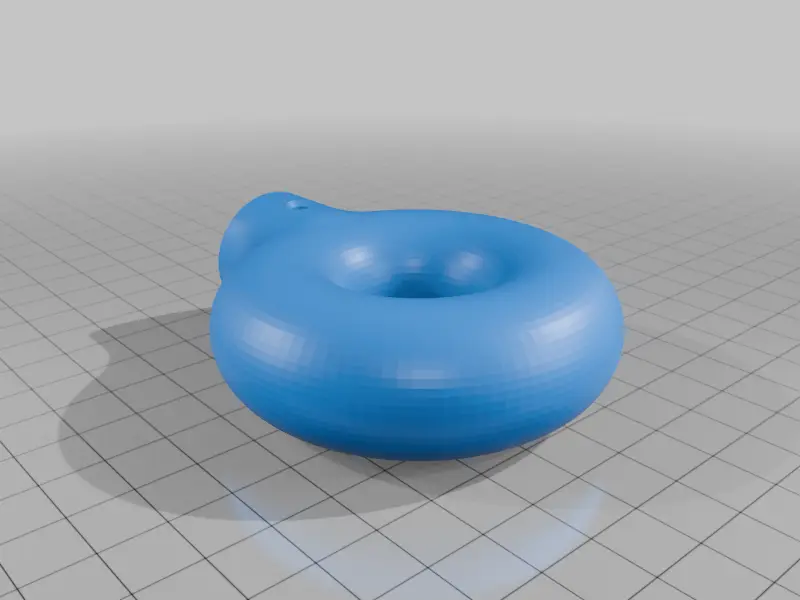

Ring eye for PVC tubing
por Ken Craig en Thingiverse
As part of my harpoon tip prop, I wanted an eye loop on the back for attaching a rope, so this came about. I've included the Fusion 360 configurable file and it's got configurations for 1/2" and 3/4" PVC, but I've only printed and tested the 1/2". While designed as a prop, this is strong enough to..
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Ken Craig.
Archivos (3)
- Categoría
- Cosplay y props
- Formatos
- STL, F3Z
- Descargas
- 0
- Publicado
Sobre este modelo
As part of my harpoon tip prop, I wanted an eye loop on the back for attaching a rope, so this came about. I've included the Fusion 360 configurable file and it's got configurations for 1/2" and 3/4" PVC, but I've only printed and tested the 1/2". While designed as a prop, this is strong enough to be useful for hanging string lights, or rope for a lightweight barrier. I added holes for securing with a set screw or a through pin, since I doubt my PVC cement will work with any of my filaments. I printed mine in PETG (that's what I had available) laying flat, for strength, and added supports, but got a pretty bad bottom where the supports attached to the ring. It's not a model problem though, so if you've got your printer tuned up better than mine, yours should be fine.
Descripción original del autor, publicada en Thingiverse.
