Retractable Wolverine Claws

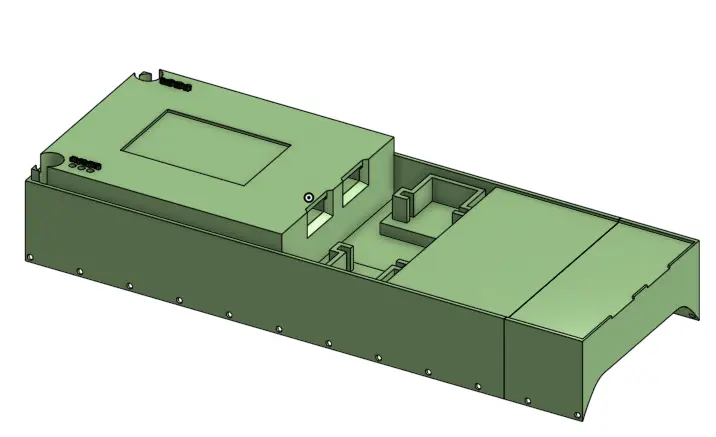

I made low profile wolverine claws (x-23/Laura Kinney) that can be sewn onto gloves. There is a cutout for a pcb that includes 2 servos and 2 touch sensors. There are 2 claws that have a rack set in the bottom that can be used with a gear and continuous servo to make the claws move in and out. It had to be split into multiple parts for printing so some of the parts have to be glued together. Claw holder base - This has 3 hole going from the bottom to the top for the conductive thread to go through so it can be tied to the pcb

- there is 2 servo cutouts so they can stay in place to spin the gears.

- the whole this is shaped to your arm so it is easier to sew on using the holes on the side

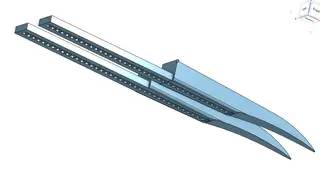

Claws themself - these have a rack on the bottom to be driven in and out

- little edge on the top to stop it from completely coming out

- ~11in long and ~1in tall

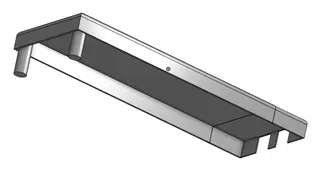

Top cover of claw base - it has the 2 poles to lock into the bottom and stay down

- has 2 pieces needed to be glued together

- 2 cutouts for claws

- space to keep pieces under the cover

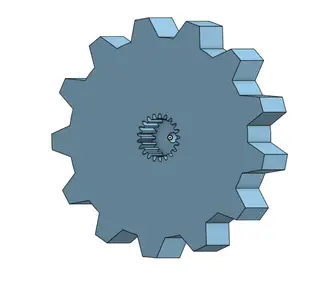

Gear - the spur gear can be used to drive the claws/rack

- can fit in the feetech fs90r continuous servo
