Renaissance castle box — inspired by Rosenborg, the whole castle lifts off a hidden tray

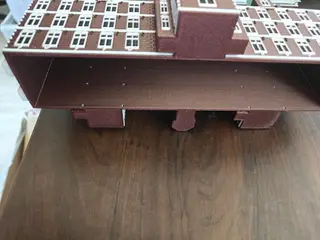

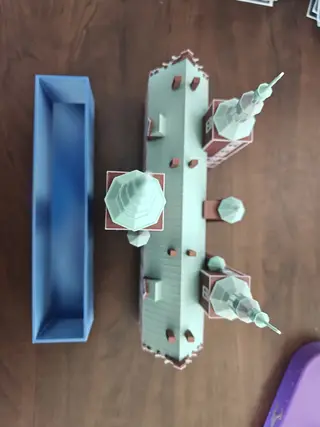

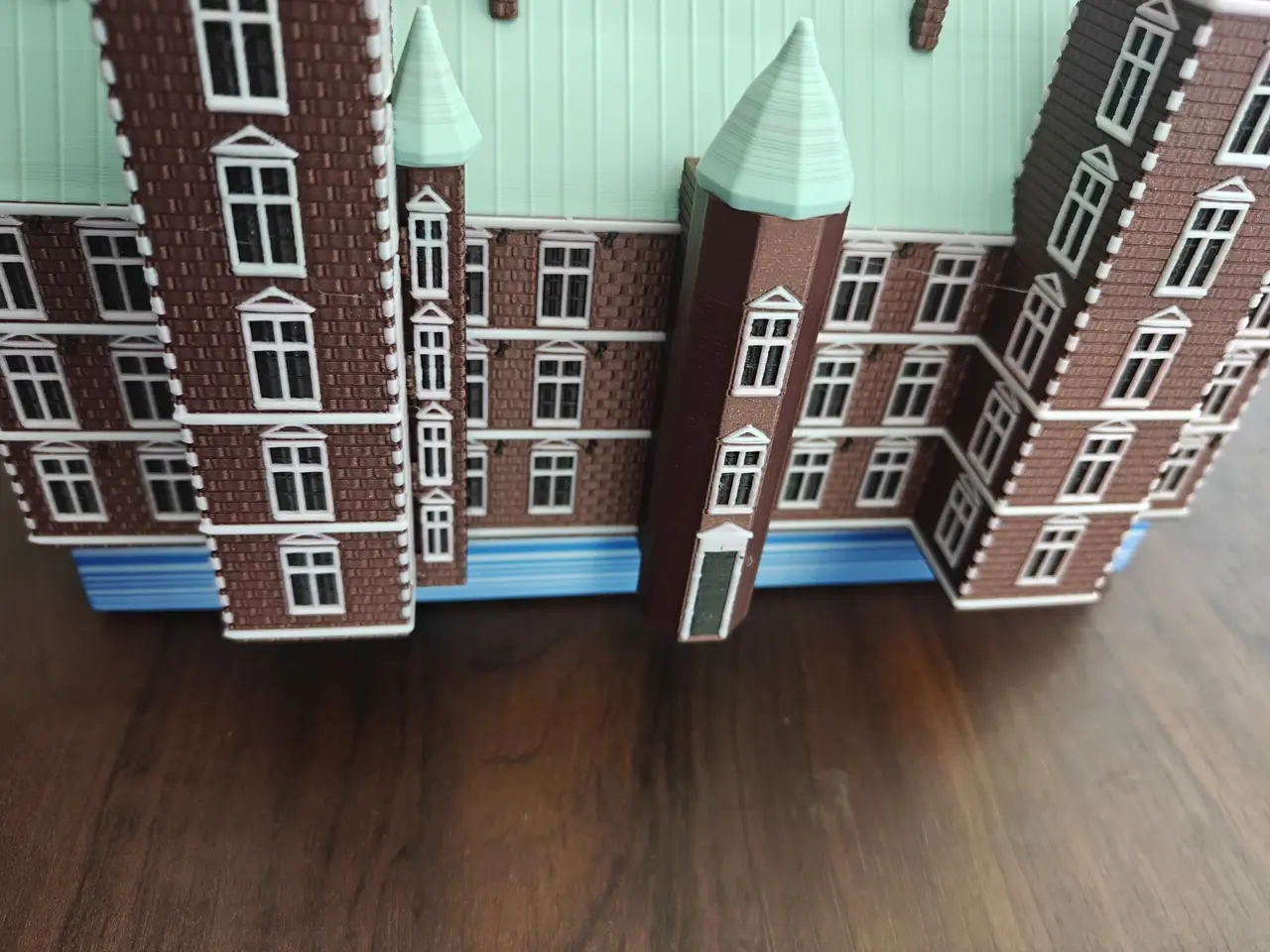

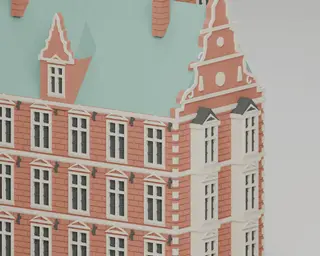

A Dutch Renaissance castle, 240 × 108 × 250 mm, that is a box. The entire castle — brick walls, sandstone trim, copper-green roofs, three spired towers and the stair tower — is one four-colour print that lifts off a plain tray hidden inside it. Lift the castle and the tray stays on the table.

Read before you print

It is not a 1:1 replica. The castle is inspired by Rosenborg Castle in Copenhagen, not a measured model of it. Proportions, window rhythm, towers, gables and sculpture are simplified and adapted to a 0.4 mm nozzle and to the box, and many details differ from the real building. Treat it as a castle of that era, after Rosenborg.

It takes almost three days to print in colour. The four-colour castle slices to 2 d 23 h 46 min and about 1.1 kg with a four-slot automatic filament changer, colour changes and prime tower included. The tray adds 2 h 12 min. Check you have the spools, and the time, before starting.

Dimensions

Measurement Millimetres

Complete castle 240 × 108.4 × 250

Main building to eaves 230 × 50 × 65

Tallest tower tip 250

Tray outside 224 × 44 × 58

Usable inside 219.2 × 39.2 × 55.6 (0.48 litre)

Tray clearance 0.6 per side, loose slip fit

At 100 % scale the castle needs 250 mm of build height; it was sliced on a printer with 256 mm.

Files

File What it is Colour

rosenborg_lid_4colour.3mf The castle as a ready four-colour project slots 1–4

rosenborg_lid_brick.stl Castle material region (alternative to the 3MF) brick red

rosenborg_lid_stone.stl Castle material region sandstone

rosenborg_lid_copper.stl Castle material region copper green

rosenborg_lid_charcoal.stl Castle material region charcoal

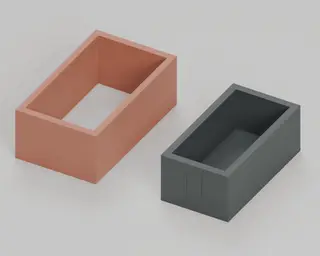

rosenborg_tray.stl The hidden tray, separate print any

rosenborg_coupon_socket.stl + rosenborg_coupon_tray.stl Fit test, 14 g together castle + tray colour

The four lid STLs are not four pieces to glue. They are the four colours of the same single print, cut from one coordinate frame. Use the 3MF or the four STLs, never both.

Filament

Castle colour Grams (sliced, incl. colour changes)

Brick red 467.8

Sandstone 290.1

Copper green 195.1

Charcoal 141.9

Tray: 106.8 g. Use one PLA family for all four colours so neighbouring regions bond. No magnets, screws, glue or paint. Have a deburring tool for the first-layer edges.
