Removable tripod mount
por loclhst en Printables

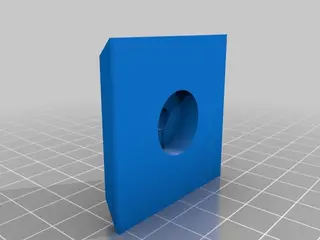

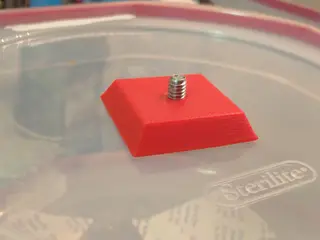

This is a generic removable tripod mount. This measures at 43.5mm squared.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a loclhst.
Archivos (1)
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 765
- Publicado
Sobre este modelo

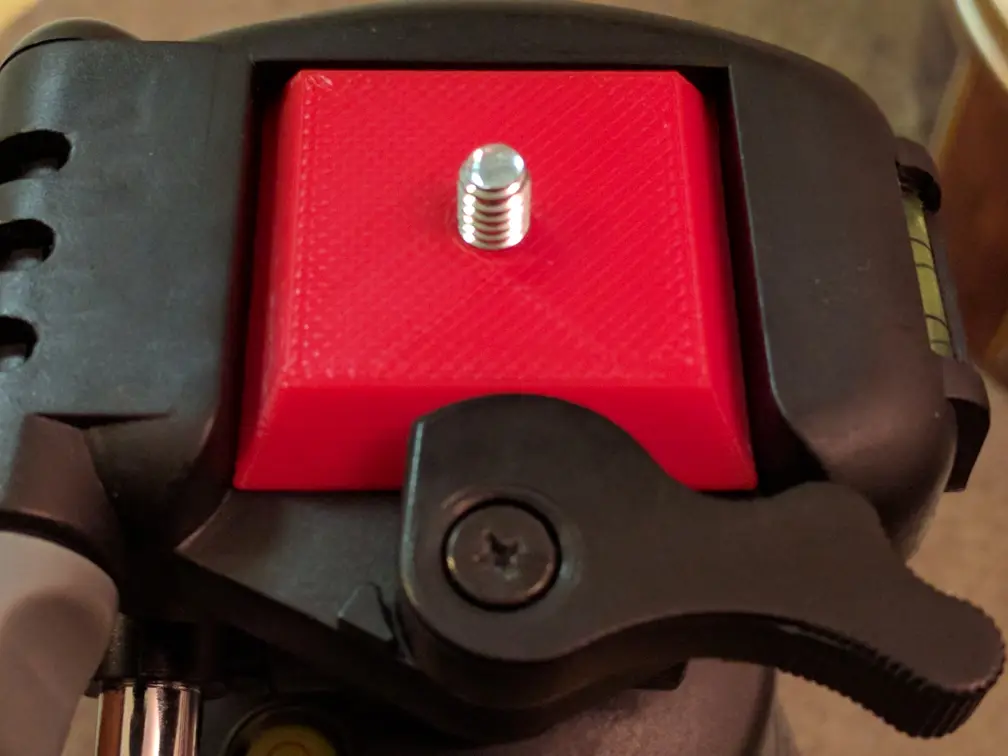

This is a generic removable tripod mount. This measures at 43.5mm squared. This is to replace or in addition to a stock removable mount with use of a 1/4in screw + washer.
This has been tested on a Merkury Innovations tripod.
The irony of this is after removing the original part to replicate it, I lost the original part.
Print instructions Category: Art Tools Print Settings
Printer Brand: RepRap
Printer: Prusa i3
Rafts: No
Supports: Yes
Resolution: 0.2mm
Infill: 20%
Notes:
Support needed for the center hole. Might be able to print upside down without support, though I have not tried this.
Descripción original del autor, publicada en Printables.
