Remix of Multiboard Angled Drill Holder
por Steven_Pierce en Thangs
Remix of Multiboard Angled Drill Holder by gray.tim1
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Steven_Pierce.
Archivos (6)
- Angled Drill Holder_Multiboard.stl STL · 509 KB
- Angled Drill Holder_Multiboard_With_Heavy_Weight_Bearing_Snaps_75mm_Apart.stl STL
- Angled Drill Holder_Multiboard_With_Heavy_Weight_Bearing_Snaps_50mm_Apart.stl STL
- Angled Drill Holder_Multiboard_With_Heavy_Weight_Bearing_Snaps_25mm_Apart.stl STL
- 1-Heavy Weight-Bearing Hook Snap With 6mm Nut One Piece.stl STL
- 1-Heavy Weight-Bearing Hook Snap With 6mm Nut.stl STL
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 429
- Publicado
Sobre este modelo

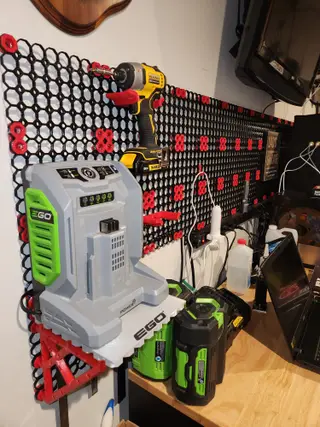

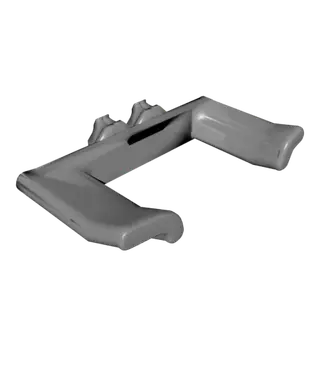

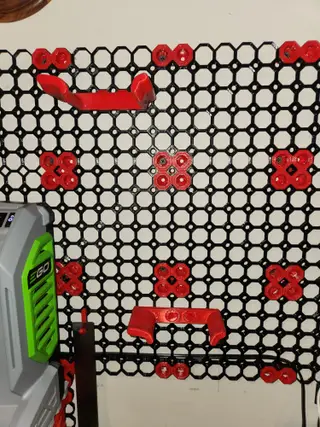

Remix of Multiboard Angled Drill Holder by gray.tim1 I Modded a Heavy weight bearing snap to accept an M6 nut that I could use an M6 Screw through the original holes because my T-Bolts just weren't strong enough and were stripping out. After Modding the Snap, I thought why can't I just add the snap directly to the holder and be done in one piece. So, Here it is.
I'll also try to add the Step file for the nut version of the Heavy weight bearing snap. I'm just learning Fusion and parameters, but you can edit the sketch and change which parameter you want to use on the split version to accommodate whichever nut and screw or Heat insert you would like to use. I haven't tested these yet, just used measurements that I could find form the internet, so who knows. I'd just print one snap and test First.
Descripción original del autor, publicada en Thangs.
