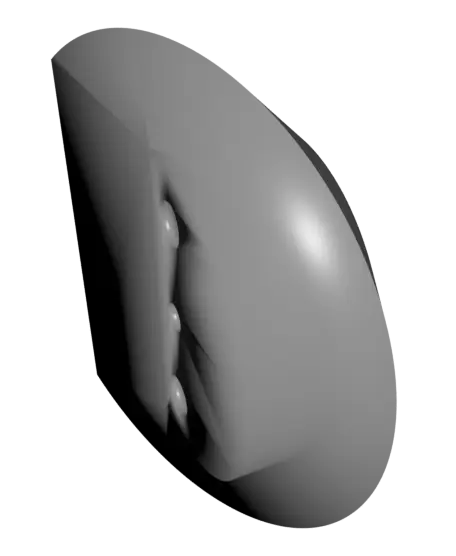

RD1 CRV Tweeter Pod.stl
por Christopher S en Thangs
This is an OEM style tweeter pod for the first generation CR-V. I designed it with Skar Audio TWS-01 tweeters in mind, but it could work for other tweeters as well. The interior diameter is 42mm with a depth of 15mm. Total diameter of the print is 60mm.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Christopher S.
Archivos (1)
- RD1 Tweeter Pod.stl STL · 878 KB
- Categoría
- Repuestos
- Formatos
- STL
- Descargas
- 217
- Publicado
Sobre este modelo
This is an OEM style tweeter pod for the first generation CR-V. I designed it with Skar Audio TWS-01 tweeters in mind, but it could work for other tweeters as well. The interior diameter is 42mm with a depth of 15mm. Total diameter of the print is 60mm.

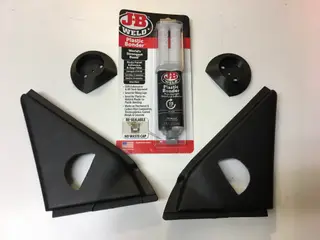

Some cutting and gluing is required to mount them, but it's not too bad. I made a paper template based on the flat bottom of the tweeter cavity poking out the back, and cut stencils out of tape so I would know where to cut.

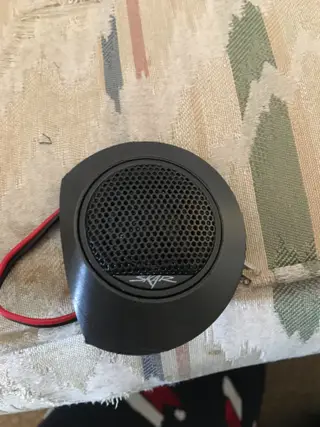

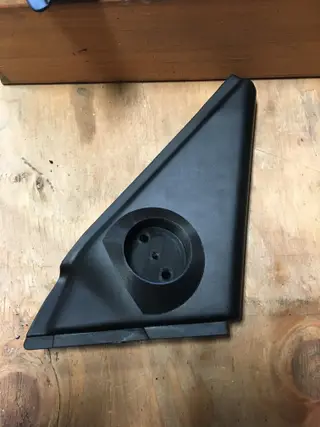

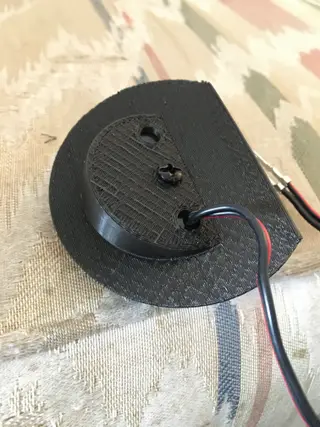

Check out the photos for the print settings I used and to see what they look like mounted.
Link for the tweeters: https://www.amazon.com/dp/B01HQRAMTS?psc=1&ref=ppx_yo2ov_dt_b_product_details
