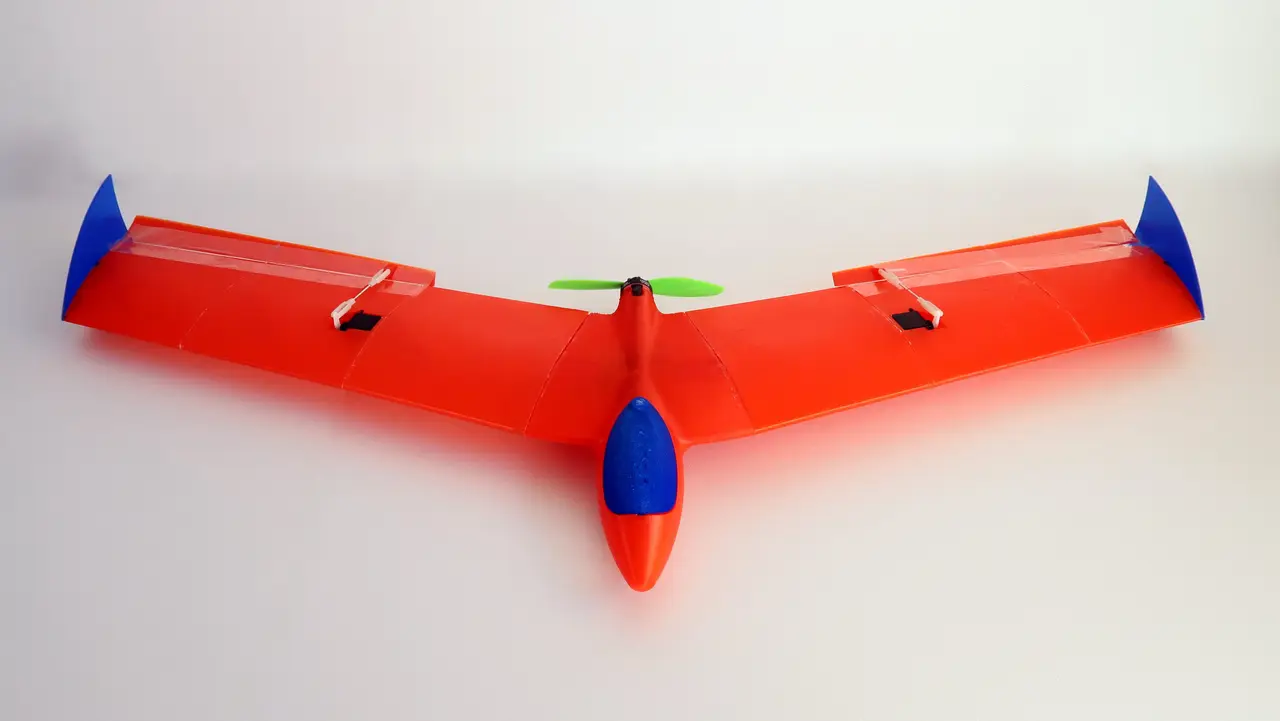

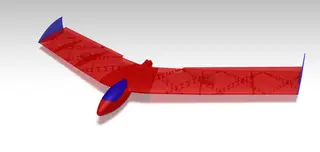

RC Flying Wing
por Tom Stanton en Thingiverse
DISCLAIMER: I highly recommend that you have experience with flying model aircraft. This is NOT a beginner plane and will most like end in a failure if you are not familiar with flying model aircraft. Fly at your own risk. Short build and flight video: https://www.youtube.com/watch?v=p39iE-oc5M8...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Tom Stanton.
Archivos (15)
- ElevonOuterRight.stl STL · 10 KB
- ElevonOuterLeft.stl STL · 10 KB
- Canopy.stl STL · 987 KB
- ElevonInnerLeft.stl STL · 42 KB
- ElevonInnerRight.stl STL · 42 KB
- WingOuterLeft.stl STL · 1,3 MB
- WingMiddleRight.stl STL · 1,7 MB
- FuselageFront.stl STL · 1,9 MB
- WingInnerLeft.stl STL · 1,7 MB
- WingOuterRight.stl STL · 1,3 MB
- WingInnerRight.stl STL · 1,7 MB
- WingMiddleLeft.stl STL · 1,7 MB
- WingletRight.stl STL · 141 KB
- WingletLeft.stl STL · 141 KB
- FuselageBack.stl STL · 11,4 MB
- Categoría
- Repuestos
- Formatos
- STL
- Descargas
- 43,912
- Publicado

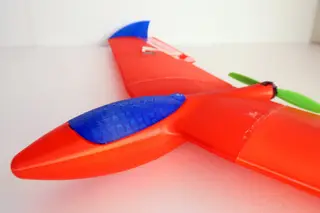

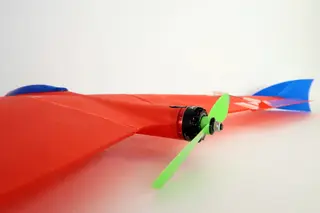

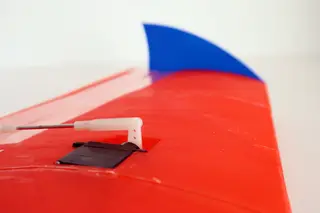

Sobre este modelo
DISCLAIMER: I highly recommend that you have experience with flying model aircraft. This is NOT a beginner plane and will most like end in a failure if you are not familiar with flying model aircraft. Fly at your own risk. Short build and flight video: https://www.youtube.com/watch?v=p39iE-oc5M8 The CG position is marked on the bottom of the fuselage with 2 circle cut outs. Plane specifications: Wingspan - 95cm Root chord - 16.3cm Tip chord - 11.5cm Sweep angle - 15 degrees Dry weight (no battery) - 468g Flying weight - 670g The CG position is marked on the bottom of the fuselage with 2 circle cut outs. General Print settings: Material - PLA (1.75mm) Nozzle diameter - 0.4mm Wall thickness - 0.5mm Layer height - 0.2mm Print settings for the wing sections: Temperature - 215 degrees Celcius Print speed - 25-30mm/s Cooling fan - off Infill - 0% Top layers - 0 Bottom layers - 1 (for bed adhesion) Outer layers - 1 Print settings for other parts: Temperature - 200 degrees Celcuis Print speed - 60mm/s Cooling fan - on Infill - 15% Top layers - 3 Bottom layers - 3 Outer layers - 2 NOTE, the fuselage and canopy will require supports. I printed the canopy with the motor mount on the bed and supports from the bed to the rear of the wing. The canopy will require support for the overhang in the center and for the small tab. All other parts can be printed without support. Electronics: ESC (x1) - http://ubuyadrone.com/ubad-30a-angry-beast-mini-esc/ 5V Regulator (x1) - https://www.banggood.com/10Pcs-Mini-DC-Adjustable-Power-Supply-Buck-Module-Step-Down-Module-p-999753.html?p=LT0710618750201406EK Servos (x2) - http://www.banggood.com/TowerPro-MG90D-13g-Metal-Gear-Digital-Servo-for-RC-Models-p-982060.html?rmmds=searchLT0710618750201406EK Motor (x1) - http://www.banggood.com/Emax-RS2205-2300-Racing-Edition-CWCCW-Motor-For-FPV-Multicopter-p-1028793.html?rmmds=searchLT0710618750201406EK Battery (x1) - http://www.banggood.com/XF-Power-14_8V-1800MAH-4S-45C-Lipo-Battery-XT60-Plug-p-1059100.html?rmmds=searchLT0710618750201406EK Other parts: Propeller (x1) - http://www.banggood.com/2-Pairs-DALPROP-J6045-PC-Propeller-CW-CCW-For-QAV250-ZMR250-280-300-RC-Multirotors-p-1056439.html?p=LT0710618750201406EK Glue Medium CA (x1) - https://hobbyking.com/en_us/hobbyking-super-glue-ca-50g-1-7oz-medium.html Canopy Magnets (x1 set of 10pcs)- https://hobbyking.com/en_us/strong-rare-earth-button-magnets-10pcs-set.html Push Rods (x2) - https://hobbyking.com/en_us/nylon-clevis-20mm-original-color-10pcs.html Push rod clevis (x4)
Descripción original del autor, publicada en Thingiverse.
