RB67 Instax Square Adapter
por maddiefuzz en Thangs

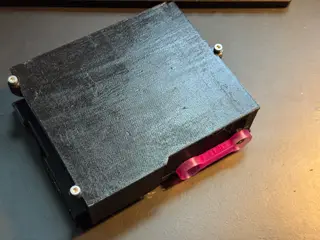

An instax square adapter for the Mamiya RB67. Requires a jollylook square dev unit.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a maddiefuzz.
Archivos (3)
- RB67 Instax Square Adapter, Back Plate v1.stl STL · 28 KB
- RB67 Instax Square Adapter, Crank Handle v1.stl STL · 50 KB

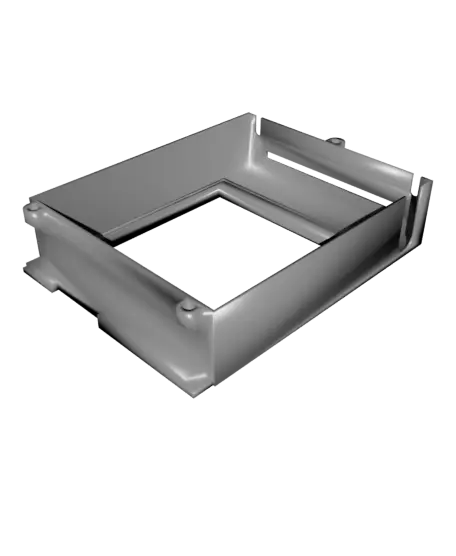

- RB67 Instax Square Adapter, Main Body v1.stl STL · 131 KB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 102
- Publicado
Sobre este modelo
An instax square adapter for the Mamiya RB67. Requires a jollylook square dev unit.
https://jollylook.com/products/jollylook-instax-square-film-development-unit?srsltid=AfmBOooaj4DzscRBPOSwKJnSIuiQGw-NAtH8RT4D-ArG9Bh1rDzYO9Ts

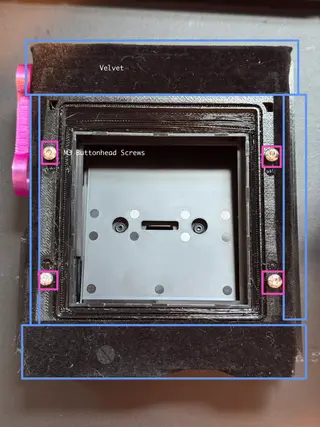

Uses three M3 heat-press inserts, three M3x12 screws to hold the back on, four M3x4 buttoned screws to mount the back to the RB67 quick-attach connector, and some velvet for light seals.
Printed at layer height 0.2mm on an Ender 3, crank printed at layer height 0.2 on a Voron 0.1. No supports needed.
This is just the first release, be prepared to run some film through it to double check you've assembled it correctly. This works for me, after a lot of testing, and your focus should be sharp and spot on.

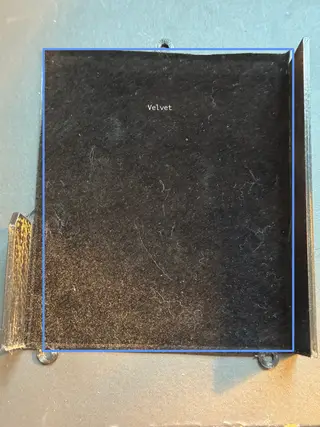

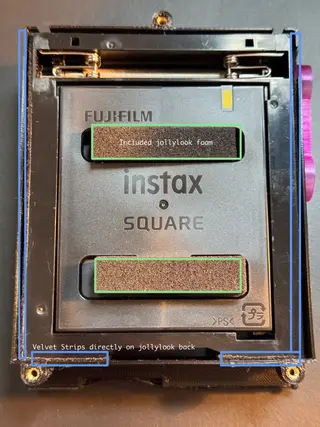

You'll find velvet and screw callouts on the photos. Improvements to come!
Descripción original del autor, publicada en Thangs.
