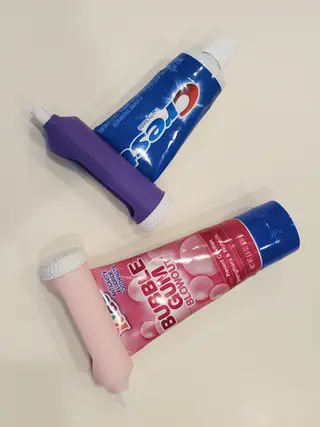

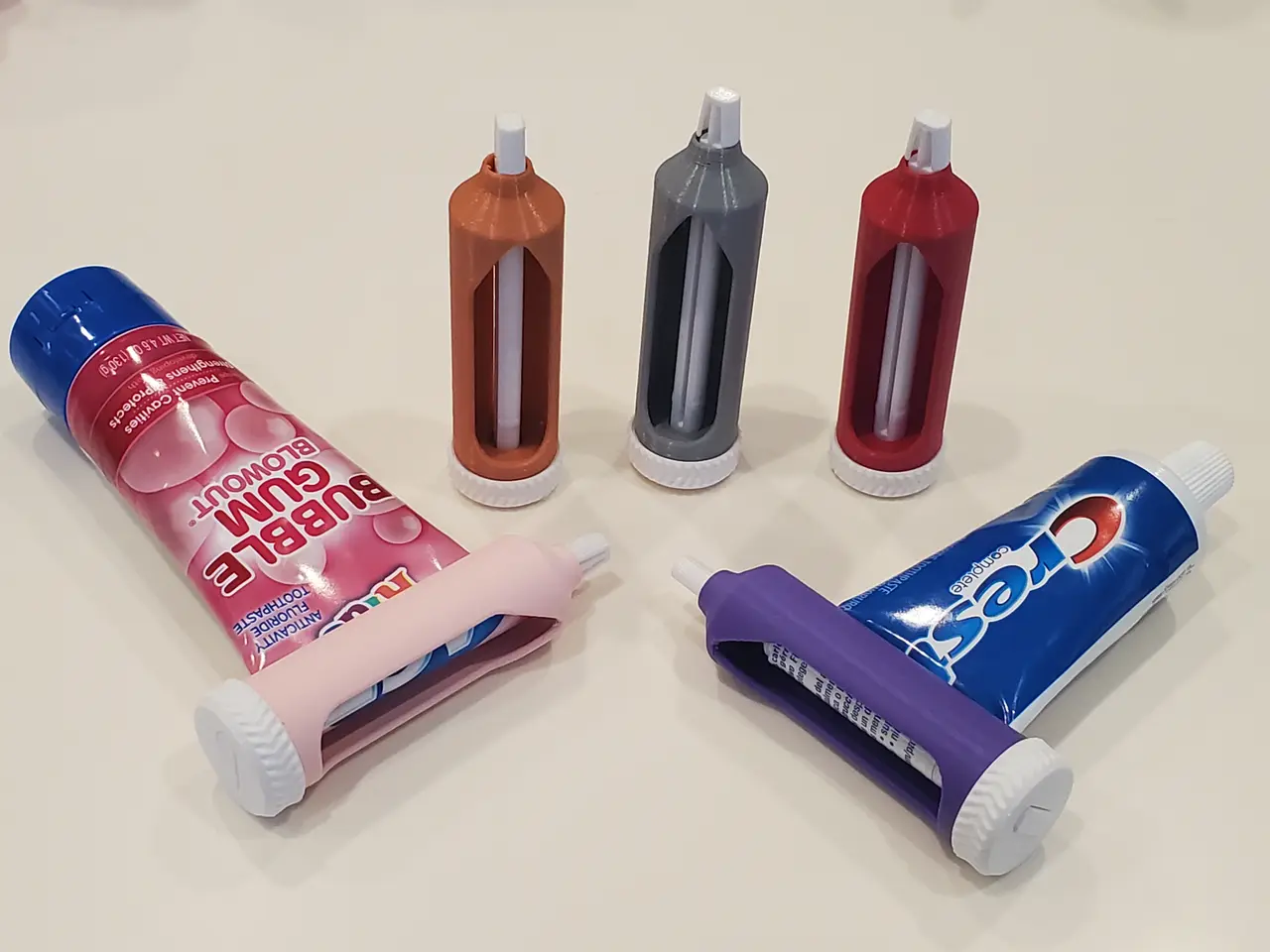

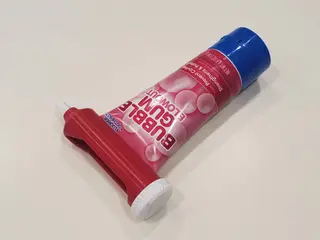

Ratcheted Toothpaste Tube Squeezer

I loved the concept behind Luke's 3D's original model but it didn't fit my daughter's toothpaste. I also found the model quite hard to assemble as the tolerances were tight and there was little to no horizontal expansion (elephant's foot) compensation built in. So while I was lengthening the model I decided to make the following improvements:

- Increased shaft and body length by 10mm

- Increased tube slot width on the shaft and body slightly

- Added chamfer to all surfaces that touch the build plate to compensate for horizontal expansion

- Added a bump on the shaft to prevent the tip from coming out while removing the tube

- Stiffened up the ratchet arms

- Improved aesthetics (subjective :))

- Less post processing is required for assembly

NOTE: You need to remove the support material from the bottom of the main tube in order for the ratchet mechanism to work correctly.

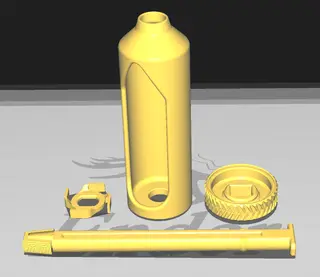

Assembly instructions:

- Insert the shaft into the knob

- Slide the ratchet, flat side down, onto the shaft.

- Insert the shaft into the body
