RaspberryPi 3 case, no screws — modelo 3D

RaspberryPi 3 case, no screws

por R en Thingiverse

Raspberry Pi 3 case, requires no screws. The two parts snap together. Models: - RaspberryPi 3B+: Works perfectly. - RaspberryPi 3B: Works perfectly. - RaspberryPi 3: Works perfectly. - RaspberryPi 2: Should fit. Feedback? - RaspberryPi B+: Community reported that it works. Snap-in mechanism: The...

Descargar los 5 archivos Ver en Thingiverse

5 archivos · 1,4 MB · se descargan uno tras otro

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a R.

Archivos (5)
Categoría
Tecnología
Formatos
STL
Descargas
33,924
Publicado

Sobre este modelo

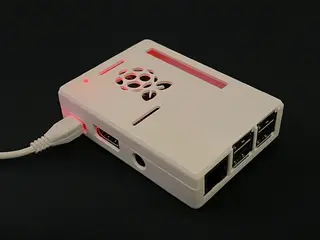

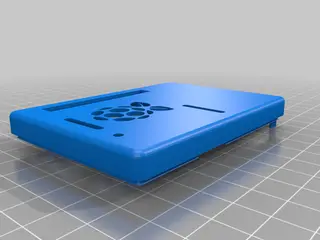

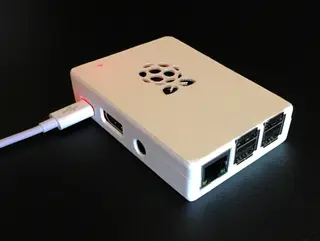

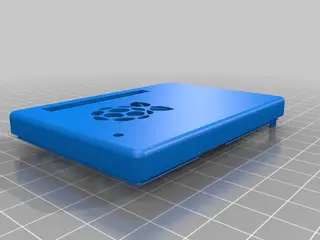

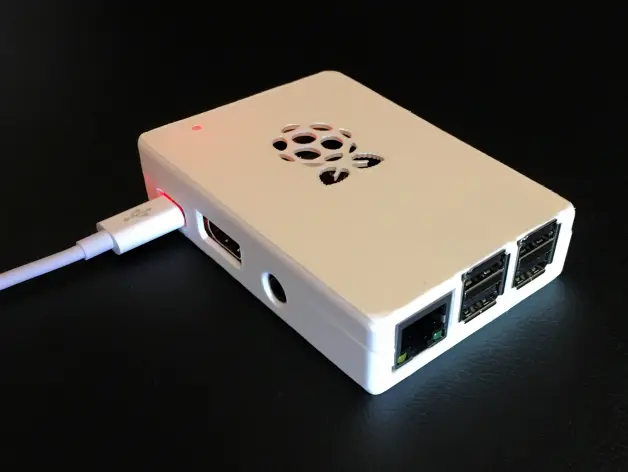

Raspberry Pi 3 case, requires no screws. The two parts snap together. Models: - RaspberryPi 3B+: Works perfectly. - RaspberryPi 3B: Works perfectly. - RaspberryPi 3: Works perfectly. - RaspberryPi 2: Should fit. Feedback? - RaspberryPi B+: Community reported that it works.

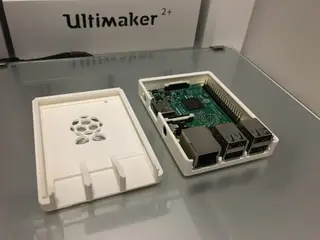

Snap-in mechanism: The case can be closed and reopened repeatedly. The snap-in mechanism goes around three sides of the case, is robust and provides a good fit. Update 2021-12-12: Now with access to camera module and GPIO ports. Remix from 0110-M-P Printer models: Printed on 20+ different 3D printer models by the community (see below) Thanks for all the comments! Printed myself: - Ultimaker 2+: Nozzle 0.4mm (not 0.6!) / Cura 2.1.2 / Normal Quality / Infill Light / 2.85mm PLA filament

Printed successfully by the community on those printers: - Anet A8: Rafts No / Supports No / Infill 30% - Anet E12 printed on glass: 0.1 layer / Hatchbox Black PLA / 205C Nozzle / 50C Bed - Anycubic I3 Mega: Rafts No / Supports No / Resolution 0.2 / Infill 20% - Anycubic All-metal Mega: Rafts: No / Support No / Resolution 0.14 / Infill 10% - Creality Ender 3 Pro: Rafts No / Support No / Resolution 0.2 / PLA - Creality CR-10S / Rafts No / Supports No / Resolution 0.2 / Infill 20% / Amazon PETG - Creality CR10S / Rafts No / Supports No / Resolution 0.2 / Infill 20% / PLA - Creality Ender 3: Rafts No / Supports No / Devil Design ABS+ - Creality CR-10S: Rafts No / Supports No / Resolution 0.2 / Devil design PETG - Creality CR-10 Mini: Rafts No / Supports No / Resolution 0.2 / Infill 20% - Da Vinci Jr: Rafts No / Supports No / Resolution 0.1mm / Infill 20% / PLA / low speed / 0.2mm layer height - FlashForge Creator Pro: Rafts No / Supports No / Resolution 0.2 / Infill 20% - Prusa i3 MK2S: Rafts No / Supports No / Resolution 0.2 / Infill 20% / ABS - Prusa Mk2: Rafts No / Supports No / Resolution 0.15mm / 0.4mm nozzle/ Infill: 0%, 10 top & 9 bottom layers, 6 perimeters - Movtech Cubica: Rafts Yes / Supports Yes / Resolution 0.2 / Infill 20 - Q3D OneUp: Rafts No / Supports No / Resolution 0.1 / Infill 20% - Silhouette Alta - Ultimaker 2 Extended: Fill 40% / Layer 0.15mm / Nozzle 0.4mm / Shell thickness 0.8mm / Retraction on / Bottom-top thickness 0.8mm / Support everywhere - Wanhao Duplicator i3 V2: Supports No / Resolution 0.2 / Infill 15% - Wanhao Duplicator i3 Plus: Rafts No / Supports No / Resolution 0.2 / Infill 50% - Zonestar Z8XM2: Rafts No / Supports No / Resolution 0.1 / Infill 50%

Descripción original del autor, publicada en Thingiverse.
