Raspberry Pi5 + Geekworm X1001 NVMe SSD Case

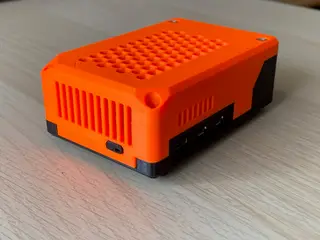

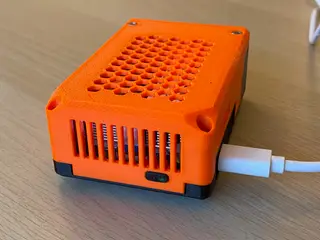

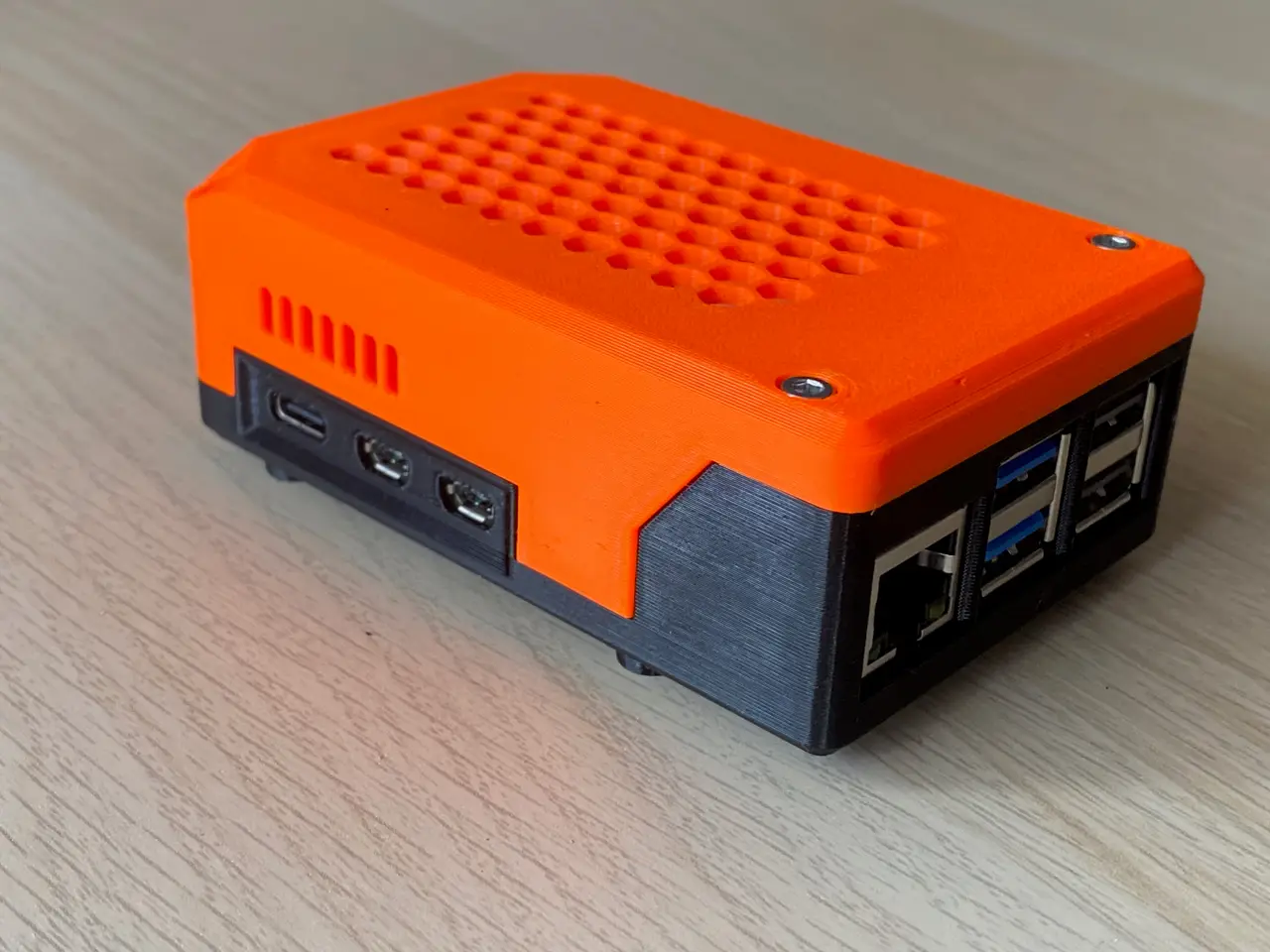

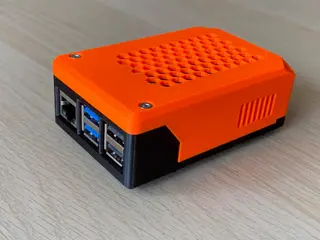

This model was inspired by another model https://www.printables.com/model/924041-raspberry-pi-5-case-with-pineberry-hatdrive-bottom, but it's not a remix. The case was designed completely from scratch (no reverse engineering). The case was designed to fit the Raspberry Pi 5 with the mounted Geekworm X1001 shield for the NVME M2 SSD (https://wiki.geekworm.com/X1001). The following features were implemented: - Simple design with minimal dimensions. - Minimum supports during the print (could be applied for USB and Ethernet ports, but not required). - All ports are available. - The power button is operational. - Inserting an SD card is possible without unscrewing the board, but with an unscrewed upper cover.

Print Settings The table below shows the print settings used to print the model. PropertyValue FilamentPETG, ABS Infill20% Walls3-4 Top/bottom layers4 Layer0.2 Extra BOM - Screw M3x20 SHCS - 2 - Screw M3x8 SHCS - 2 - Screw M2.5x10 BHCS - 4

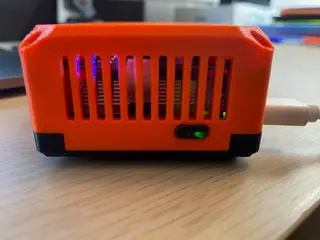

Highlights This section contains some additional information about the design. Lower part hole diameter One of the holes in the lower part (see image below) was intentionally designed with a smaller diameter. It is only used for bottom spacer (stand) mounting and does not participate in board fastening. Because it is screwed into plastic directly, the hole diameter was reduced for improved rigidity of the screw fastening. The power button status light The power button contains a hole that could be filled with hot glue to serve as a light conductor and make the button display the system's current status. Versions - v14 - The initial design, version without heat inserts - v15 - Updated version with modified lower part to assemble with M3 heat inserts
