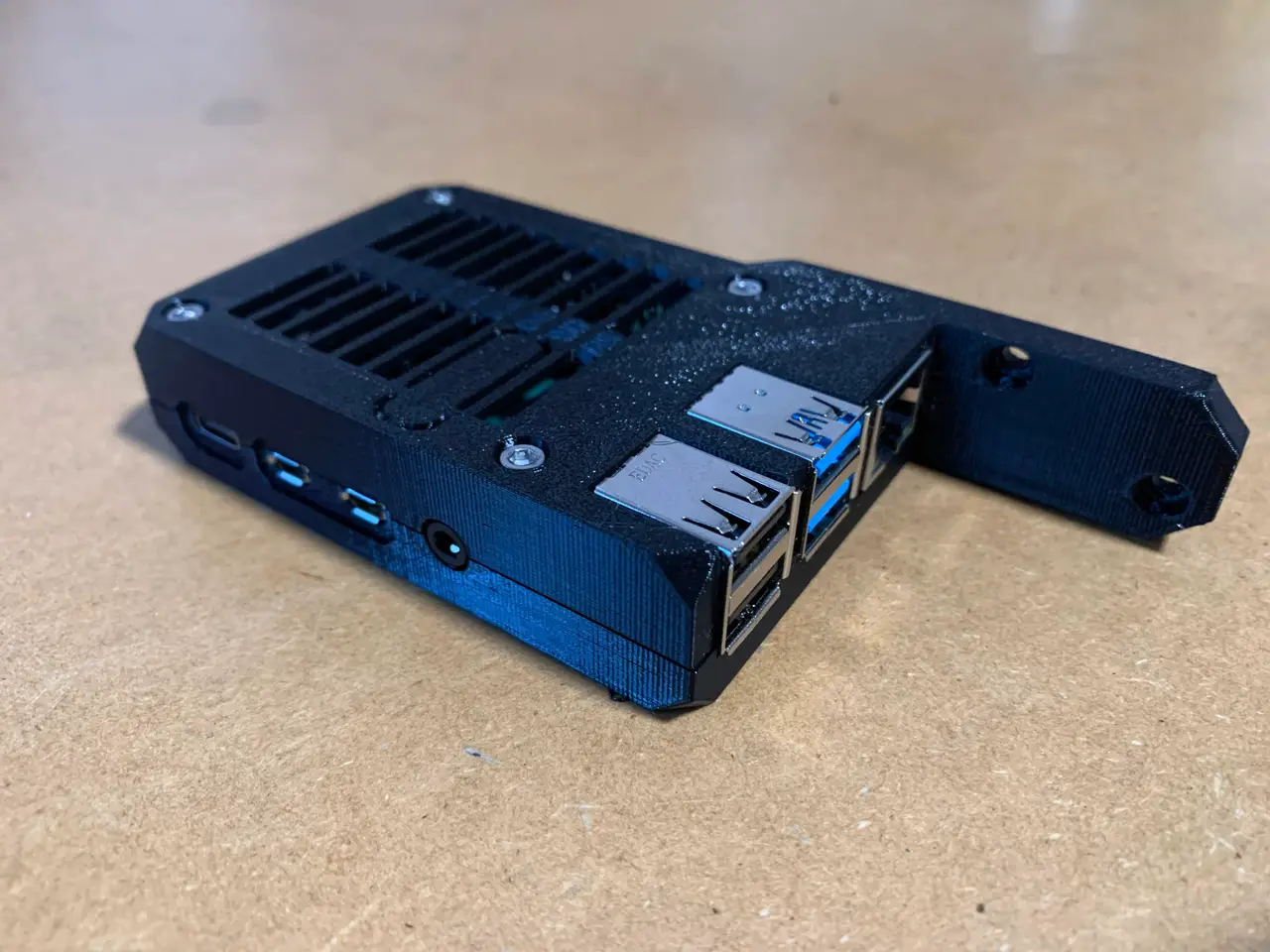

Raspberry Pi4 case for Prusa MK3

Put a Raspberry Pi4B on your Prusa Mk3S and have it align perfectly with the frame. - Smallest form factor possible for a Pi4. - Space for an optional Pimoroni Fan Shim. - All peripheral ports accessible (not the Pi headers). - Break away window for Pi-cam - version without added. - Windows for status lights. - Slim attachment block to frame. - Uses styling cues from the Einsy Case with chamfered corners and textured sides - Easy to print: no supports needed.

Edit: added a new version of the top part (picase-top-compact.stl) which is more compact to allow this to fit with https://www.prusaprinters.org/prints/3267-led-light-bar-prusa-i3-mk2mk3 Uses: - 4 M3x16 for the case - 2 M3x10 for attaching to printer

A complete redesign inspired by the Prusa Einsy Case and: - https://www.thingiverse.com/thing:3723561 - https://www.thingiverse.com/thing:3004038

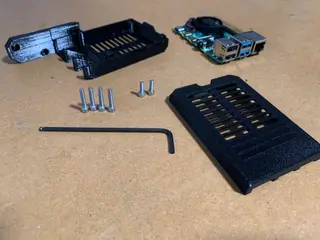

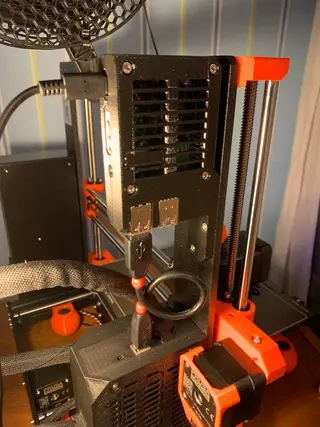

Print instructions 0.2mm 20% infill PETG No supports 4 M3x16 for the case 2 M3x10 for attaching to printer - Widen the holes on your Raspberry Pi (and fanshim) just a bit for the M3 screws. - Pierce the sacrificial bridges inside the screwholes on the top shell. - Put Pi in top shell and place bottom shell on top. - Screw in 4 M3x16. - Align on the back of your Prusa MK3 and screw in 2 M3x10. - Plug in
