Raspberry Pi Zero 2 W Clipping Case for Prusa
por PierreNick en Printables
Raspberry Pi Zero 2 W case with sliding clips for a 3030 extrusion (such as found on a Prusa), with cable passthrough.
Licencia
Uso comercial permitidoPuedes usarlo, modificarlo y venderlo; si distribuyes versiones modificadas deben ir con la misma licencia y sus fuentes.
Al descargar aceptas respetar la licencia y dar crédito a PierreNick.
Archivos (3)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 733
- Publicado
Sobre este modelo

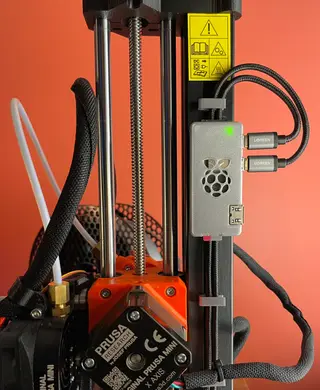

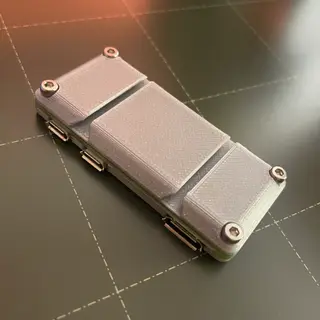

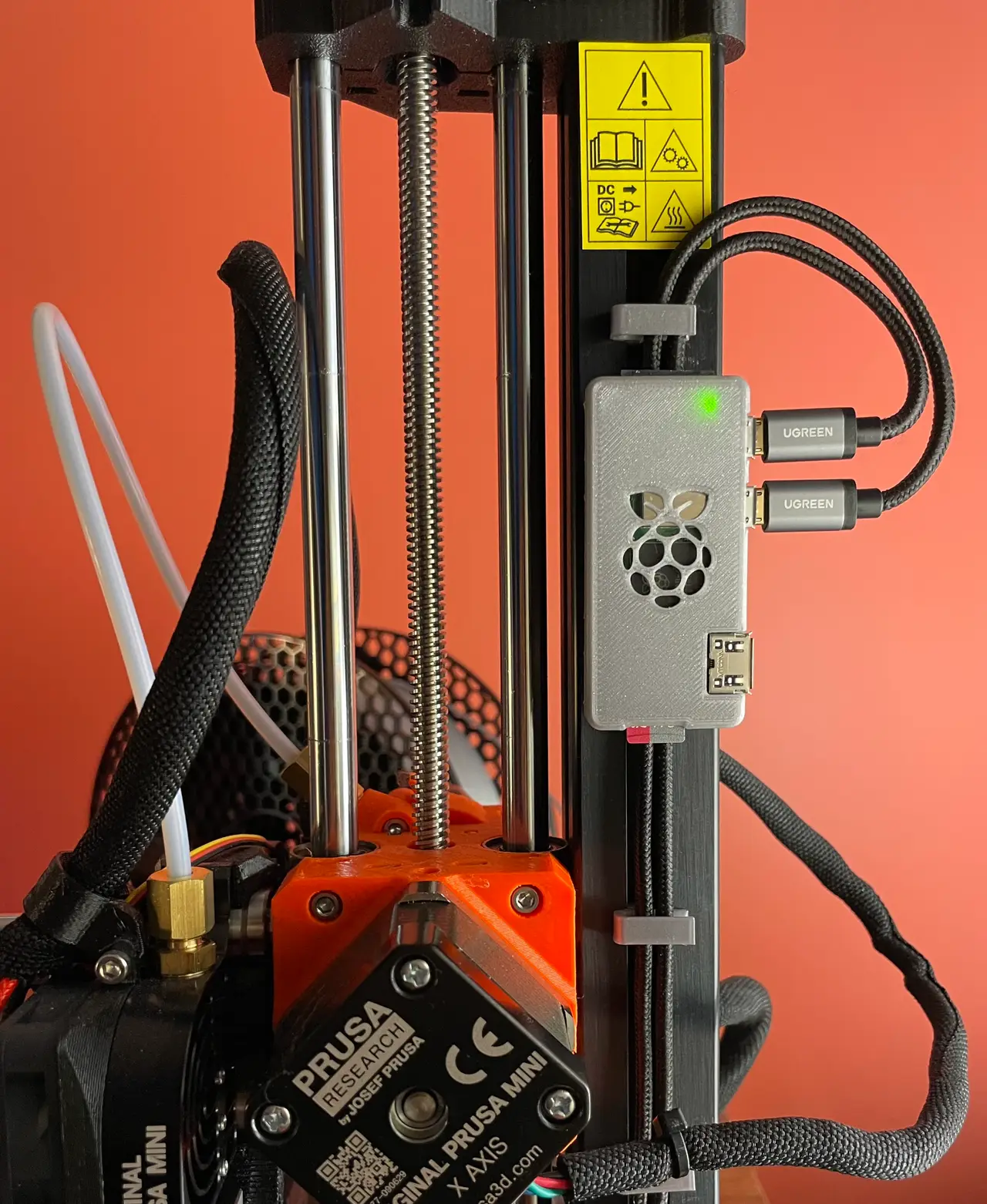

This is Marius’ “Slim Raspberry Pi Zero 2 W Case” with a spacial backplate that can interlock on 3030 extrusion clips (themselves based on Shaun Doe’s “Prusa MK3 / MK3S / MK3S+ LCD cable clip“). I’m using it to run a minimal Octoprint on a Raspberry Pi Zero 2 W. See images!

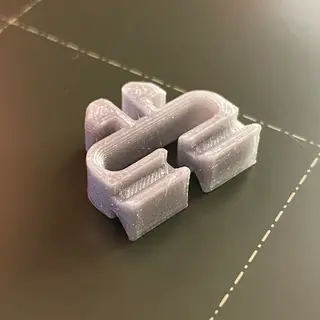

Includes: - Backplate (back) case with female interlocks (01_backplate_interlock.stl) - Twisting 3030 extrusion clips with cable passthrough:- With male interlock for the backplate (02_clip_wire_interlock.stl) - Without any interlock, to hold cables (03_clip_wire.stl)
Not included: - Frontplate (top) of your choice from Slim Raspberry Pi Zero 2 W Case - 4x M2.5 screws (M2.5x8 should be fine)

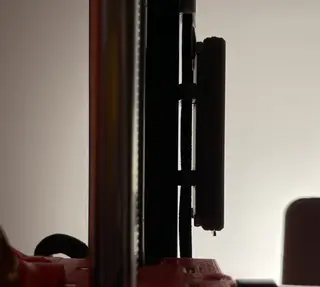

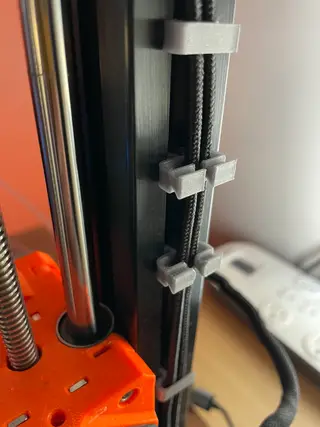

Print and assembly instructions - Print 1x backplate (01_backplate_interlock.stl) - Print 2x interlock clips (02_clip_wire_interlock.stl) - Print clips, as desired (03_clip_wire.stl) - Assemble the case (backplate, frontplate, 4x screws) - Attach the 2x interlock clips to the extrusion and snap-in the cables - Slide in the case over the interlock (adjust clips as needed) - Use extra clips to fasten cables along the extrusion
