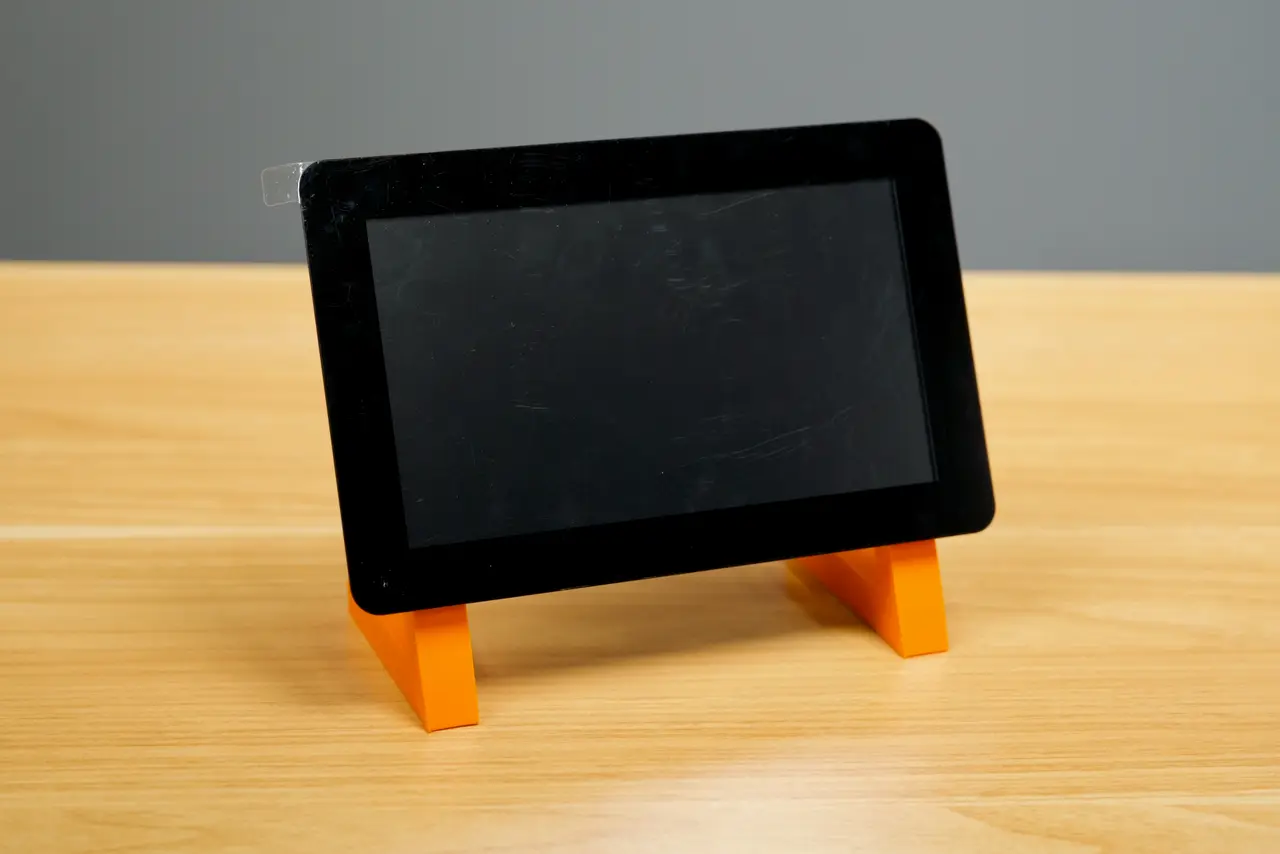

Raspberry Pi Touch Display 2 Stand — modelo 3D

Raspberry Pi Touch Display 2 Stand

por geerlingguy en Printables

A very simple two-leg stand design for the Touch Display 2.

Descargar gratis Ver en Printables

Todos los archivos (2) en un ZIP

Licencia

Uso comercial permitido

CC BY-SA 4.0 — Atribución, compartir igual

Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a geerlingguy.

Archivos (2)
Categoría
Tecnología
Formatos
STL, STEP
Descargas
2,709
Publicado

Sobre este modelo

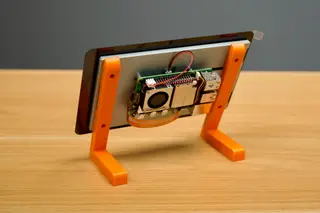

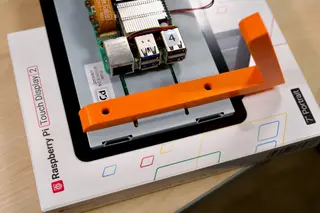

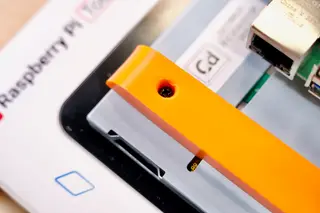

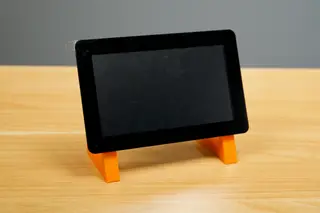

This stand is loosely based on some other simplistic designs I've seen for the original Touch Display, but it is based on the new dimensions of the Touch Display 2. It is a simple leg design that you print twice, and it has a cutout in the middle to allow the raised metal part over the Touch Display's internal PCB to pass through the leg. Assuming you have a good print, the screws Raspberry Pi includes in the Touch Display should fit right into the screw holes, and hold the stand to the Touch Display. I may revise the design to conform to the glass outer part a bit better, to support it, as heat over time may loosen the adhesive tape that holds it to the metal/PCB part. To prevent the stand from moving around on smooth surfaces, you may want to stick some rubber feet on the bottom.

Descripción original del autor, publicada en Printables.
