Raspberry Pi Pico Case
por George en Printables
Two parts case for Raspberry Pi Pico without screws. Useful for connect 2 ADXL345 and do the input shaper in Klipper
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a George.
Archivos (3)
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 5,224
- Publicado
Sobre este modelo

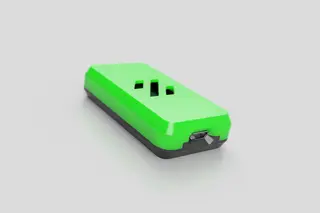

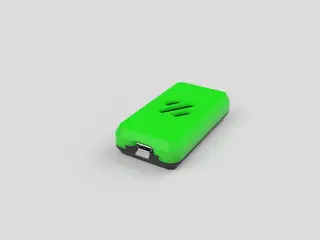

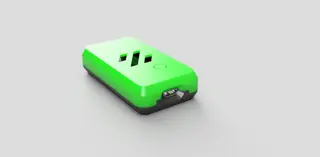

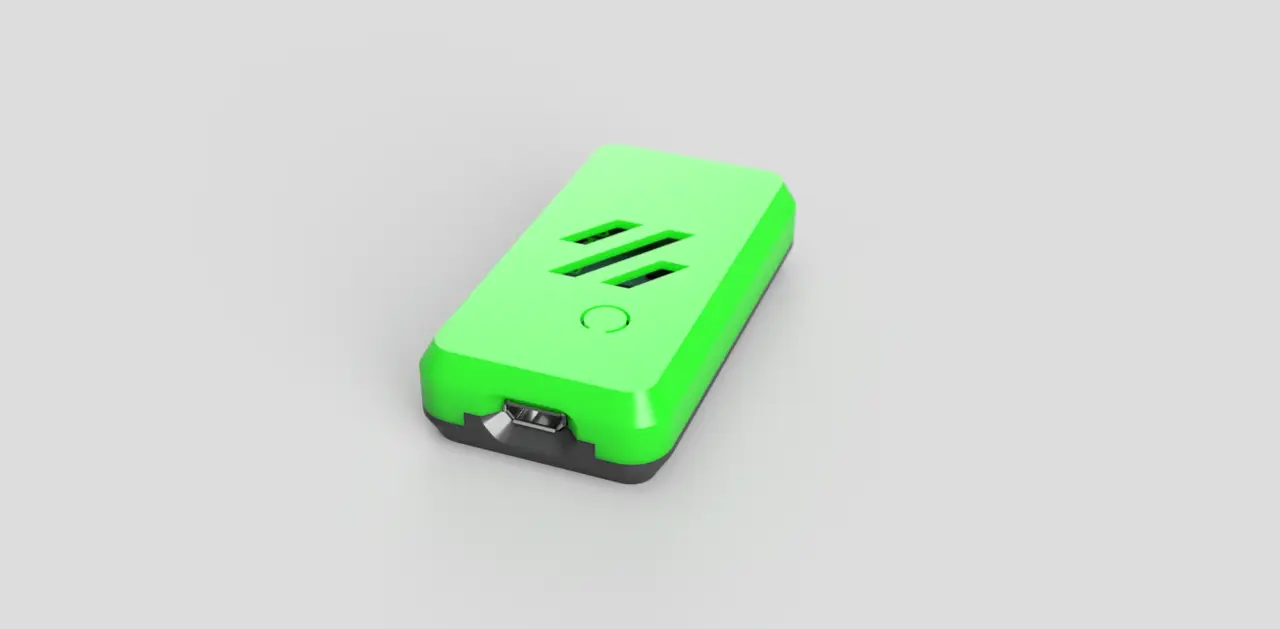

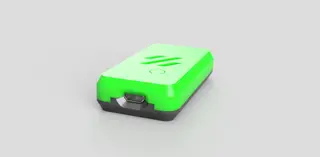

A simple 2 parts snap-fit case for Raspberry Pi Pico. No screws needed. Back of case is open for wires. I use it to connect 2 ADXL345 and do the input shaper in Klipper
Print settings: - layer: 0.16 or lower - perimeters: 3
To connect 2 ADXLs use the following pins. For the second ADXL you will need to use GPIO8, GPIO9, GPIO10 and GPIO11 according to the colors. Red and Black are the same. Klipper Configuration [mcu pico_adxl345] serial: /dev/serial/by-id/usb-Klipper_rp2040_use_your_id-xxxxx
[adxl345 head] cs_pin: pico_adxl345:gpio1 spi_bus: spi0a axes_map: -z, x, -y #update your axes mapping
[adxl345 bed] cs_pin: pico_adxl345:gpio9 spi_bus: spi1a
[resonance_tester] probe_points: 115, 115, 30 #update your position accel_chip_x: adxl345 head accel_chip_y: adxl345 bed If you need a bed mount for ADXL take a look at this. Updates 21.11.2022 - Add pins and Klipper configuration 22.07.2022 - Version 2.1 - add a cutout for the Bootsel button. 12.07.2022 - Version 2 - add an indentation in order to make the case more snap-fit and prevent to become too lose from wearing.
