Raspberry Pi (Model B) case with 75mm VESA mount

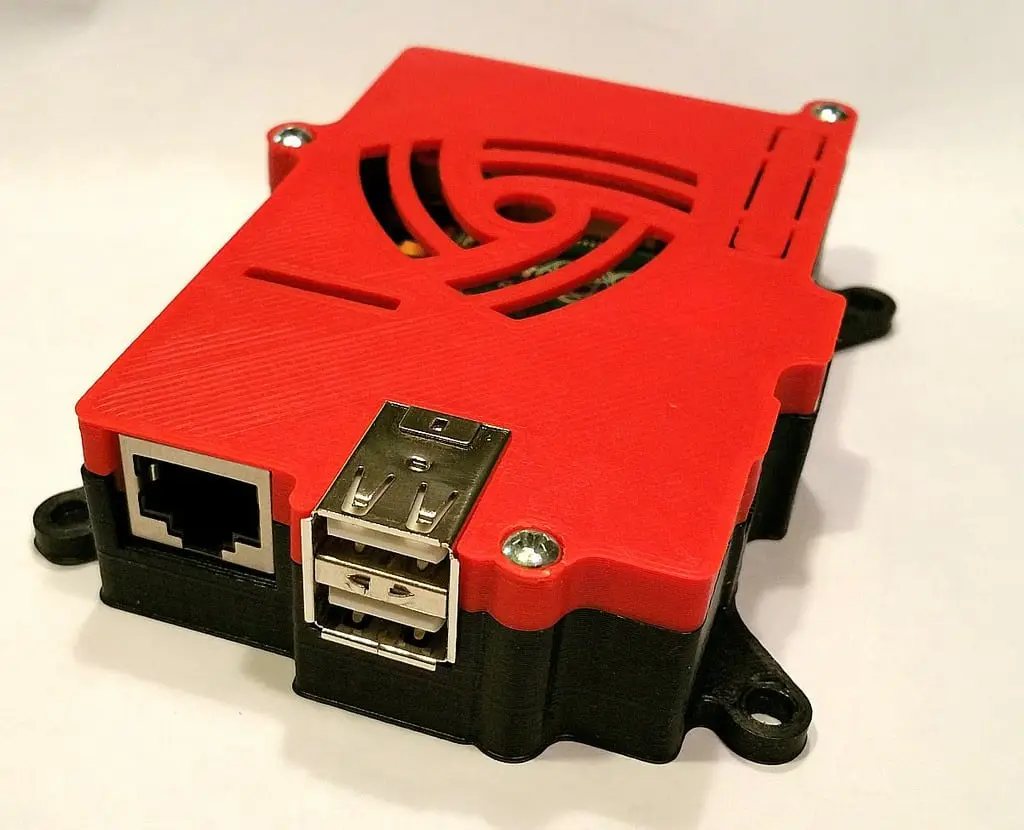

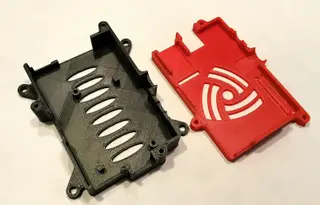

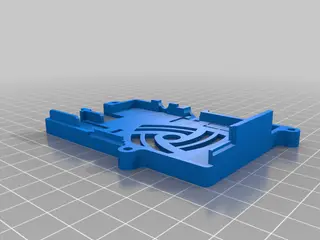

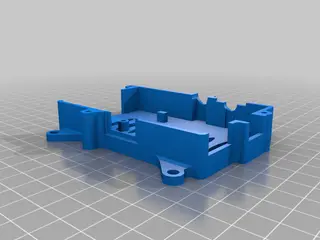

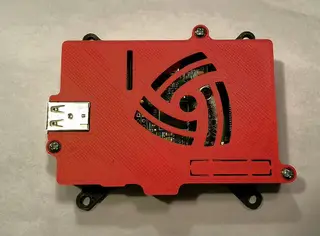

UPDATE (7/12/15): GOOD NEWS! My Raspberry Pi 2 case design is finally finished and ready for download. Go check it out! http://www.thingiverse.com/thing:922740 UPDATE (6/8/15): Sorry everyone for dropping the ball on getting the new Raspberry Pi 2 case complete. Development work has started again and I hope to get the new case released soon. Thanks! UPDATE (2/3/15): Just ordered a new Raspberry Pi 2 Model B (same mounting as a B+), so expect a new version of the mount for the newer RPi's soon. UPDATE (12/29/14): Updated STL's of part with correct orientation. Also added STEP files for those who want to modify. None of the other cases shared around the web had to offer exactly what I wanted so I decided to design my own. This was a ground up design, but I have to give credit where credit is due. A lot of design cues and dimensions were borrowed from this case... http://www.thingiverse.com/thing:79036 This Raspberry Pi (Model B) case has a few key features that I wanted... - Access slot for Pi camera - Screw together design - Screw mount raspberry pi to case using standard mounting holes - Built in 75mm VESA mounting tabs. - Better general fit between components and clearances to all inputs/outputs - Rotary engine (reuleaux triangle) vent design

Also, the case is designed to use a flush mount microSD card. I use this one and it doesn't stick outside the case at all. http://www.adafruit.com/product/966 If anyone finds any problems (dimensionally or otherwise) post them up so I can get the model fixed.
