Raspberry Pi Enclosures - 4B, 3B, 3B+, Zero W, 2.5" HDD
por Michael Sonst en Thingiverse
Models - BOM Complete material list with links here - 3D Models The PI models can be found here: 3D Models - Raspberry Pi rpi4b - Enclosure (rpi4b) This is a plain enclosure for Raspberry Pi 4B. It now includes a fan. - Raspberry Pi rpi4b - 2.5" USB HDD (rpi4b-2.5drive) Basing on the rpi4 enclosure.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Michael Sonst.
Archivos (12)
- rpi3b-2.5drive_t38.stl STL · 132 KB
- rpi3b-2.5drive_b14.stl STL · 290 KB
- rpi3b-2.5drive_m7.stl STL · 329 KB
- rpi3b-t38.stl STL · 132 KB
- rpi3b-b38.stl STL · 297 KB
- rpi_zero_w_t11.stl STL · 126 KB
- rpi_zero_w_b11.stl STL · 154 KB
- rpi4b-2.5drive_b15.stl STL · 290 KB
- rpi4b-2.5drive_t19.stl STL · 145 KB
- rpi4b-2.5drive_m21.stl STL · 295 KB
- rpi4b_t19.stl STL · 145 KB
- rpi4b_b19.stl STL · 265 KB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 23,323
- Publicado
Sobre este modelo

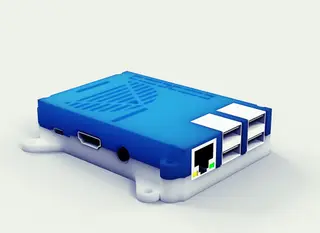

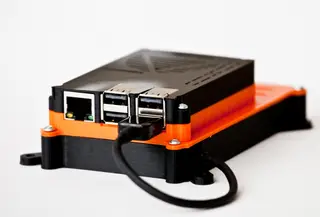

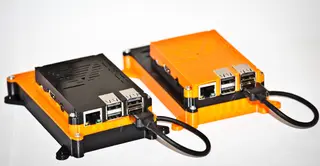

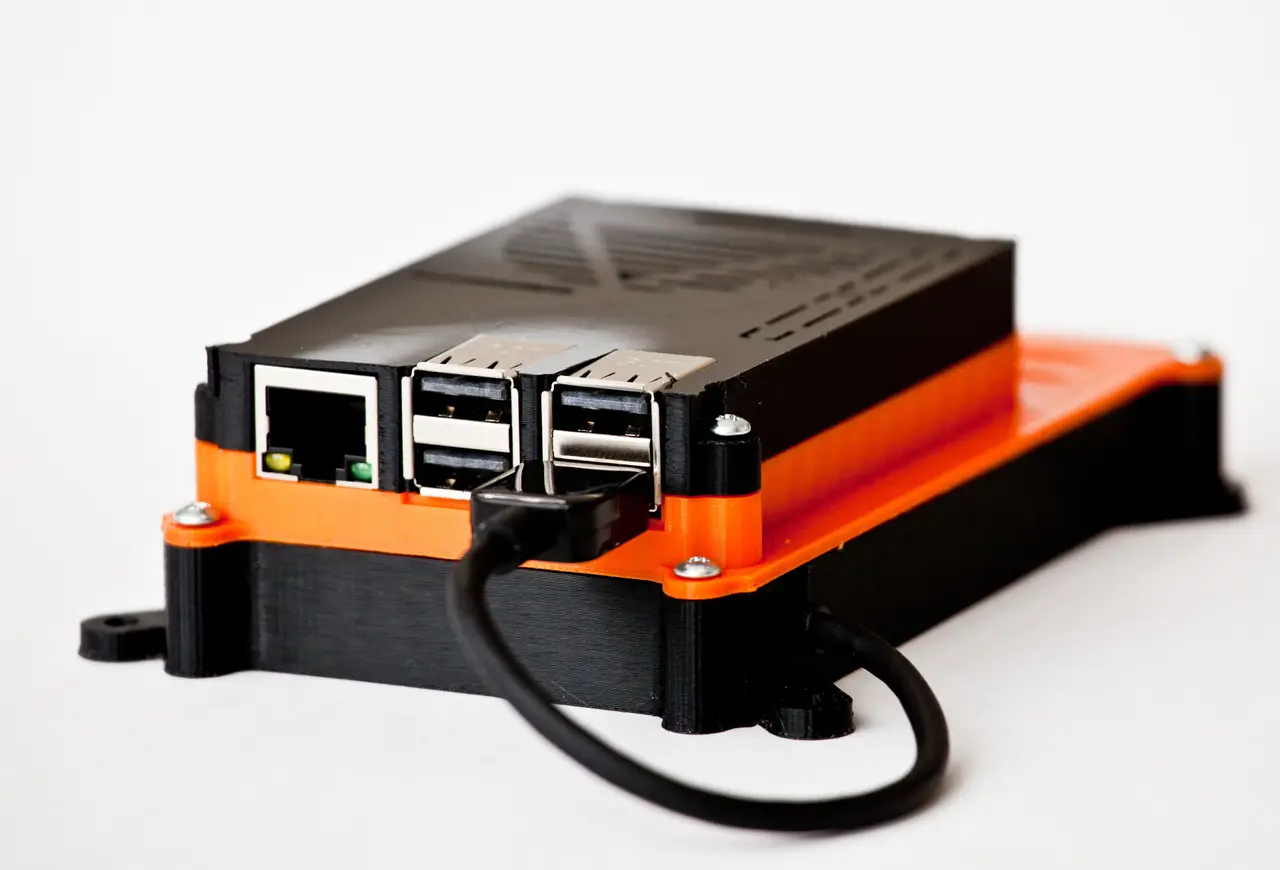

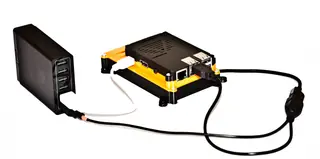

Models - BOM Complete material list with links here - 3D Models The PI models can be found here: 3D Models - Raspberry Pi rpi4b - Enclosure (rpi4b) This is a plain enclosure for Raspberry Pi 4B. It now includes a fan. - Raspberry Pi rpi4b - 2.5" USB HDD (rpi4b-2.5drive) Basing on the rpi4 enclosure above, a 2.5" HDD can be installed in a very compact way. It now includes a fan. - Raspberry Pi rpi3b & 3b+ - Enclosure (rpi3b) This is a plain enclosure for Raspberry Pi 3B. - Raspberry Pi rpi3b & 3b+ - 2.5" USB HDD (rpi3b-2.5drive) Basing on the rpi3 enclosure above, a 2.5" HDD can be installed in a very compact way. - Raspberry Pi Zero W - Enclosure (rpi_zero_w) This is a plain enclosure for Raspberry Pi Zero W.

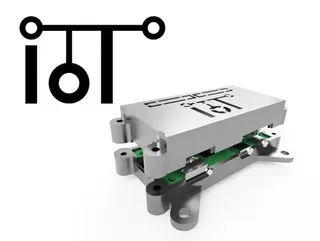

Applications - Raspberry Pi 3B & Zero W - IoT Motor Vibration Analysis (FFT) (GitHub rpi-iot) Real-time FFT via MQTT with one Raspberry PI Zero W + ADXL345 (high resolution 3-axis accelerometer) via SPI for data acquisition and one Raspberry Pi 3B+ with Node Red. - Raspberry Pi 3B - Backup (GitHub rpi-backup) Backs up several machines to a local drive via cron-scheduled rsync. - Raspberry Pi 3B - Nextcloud (GitHub rpi-cloud) Nextcloud povides cloud features from your private network to your smartphone, Windows or Linux machine. It is a software for creating and using file hosting services similar to Dropbox. Unlike Dropbox, Nextcloud is free and open-source, so you can install and operate it on your own private server. In contrast to proprietary services like Dropbox, Office 365 or Google Drive, Nextcloud gives full control over your data. - Raspberry Pi 4B - Building Automation (GitHub rpi-buildingautomation) TODO Phoscon, FHEM
Descripción original del autor, publicada en Thingiverse.
