Raspberry Pi Display Case
por Florin Tobler en Thingiverse
A simple display case for the Raspberry Pi 2 & 3 Model B. I used a 3.5inch touchscreen LCD, which is purchased from ebay. Link and guide is listed below. The micro SD card is accessible from outside. A special feature is, that it is held in place, even when the spring loaded mechanism of the sd...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Florin Tobler.
Archivos (12)
- raspiBplusCase_base.stl STL · 253 KB
- raspiBplusCase_top.stl STL · 40 KB
- raspiBplusCase_top_wo_display_logo.stl STL · 58 KB
- raspiBplusCase_top_wo_display.stl STL · 30 KB
- spacer.stl STL · 14 KB
- assembly.stl STL · 312 KB
- assembly2.stl STL · 294 KB
- raspiBplusCase_raw.zip ZIP · 124 KB
- raspiBplusCase_top_differentCutout.stl STL · 40 KB
- raspiBplusCase_top_extraTall.stl STL · 49 KB
- raspiBplusCase_top_differentCutout_extraTall.stl STL · 49 KB
- raspiBplusCase_base_w_sdSlot.stl STL · 221 KB
- Categoría
- Tecnología
- Formatos
- STL, ZIP
- Descargas
- 36,354
- Publicado
Sobre este modelo

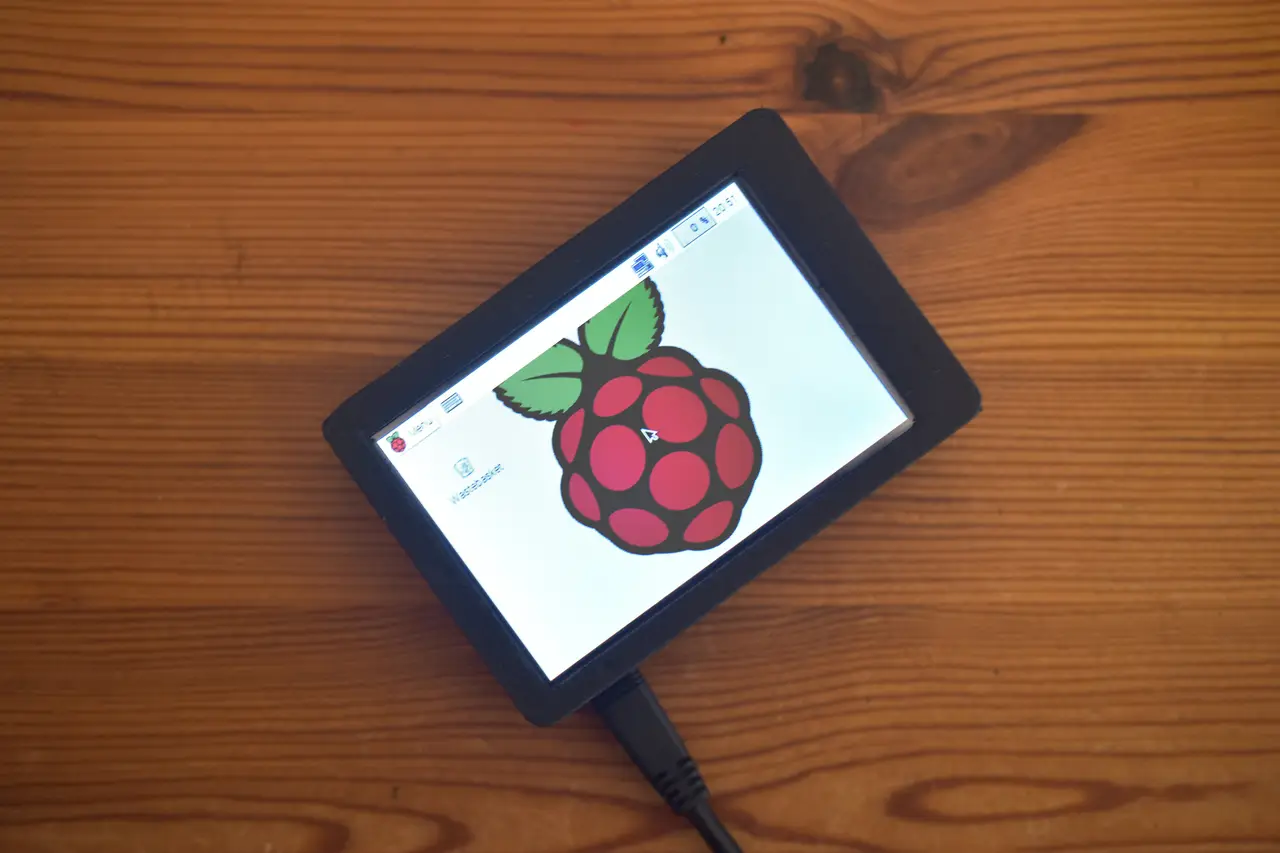

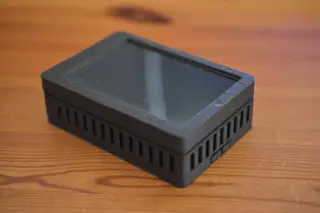

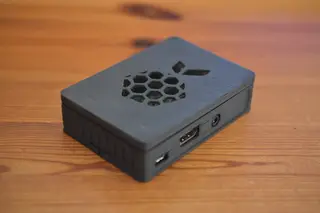

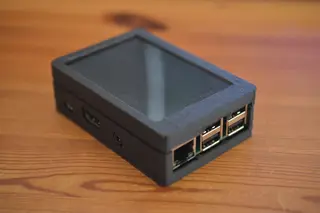

A simple display case for the Raspberry Pi 2 & 3 Model B. I used a 3.5inch touchscreen LCD, which is purchased from ebay. Link and guide is listed below. The micro SD card is accessible from outside. A special feature is, that it is held in place, even when the spring loaded mechanism of the sd slot fails (which happened here). The raspi is entirely passive cooled. I have not used a heat sink or a fan. Do not print assembly.stl. I have three different top parts. I only used and printed that width the display. I used some weak glue to bind the parts together.
In case you need some changes to the model to fit your Display, there is a customizer If this is not enough for you, feel free to send me a message :) User-specified models: raspiBplusCase_top_differentCutout.stl raspiBplusCase_top_extraTall.stl
display is from ebay guide to bring it to life (I used the raspbian image)
Descripción original del autor, publicada en Thingiverse.
