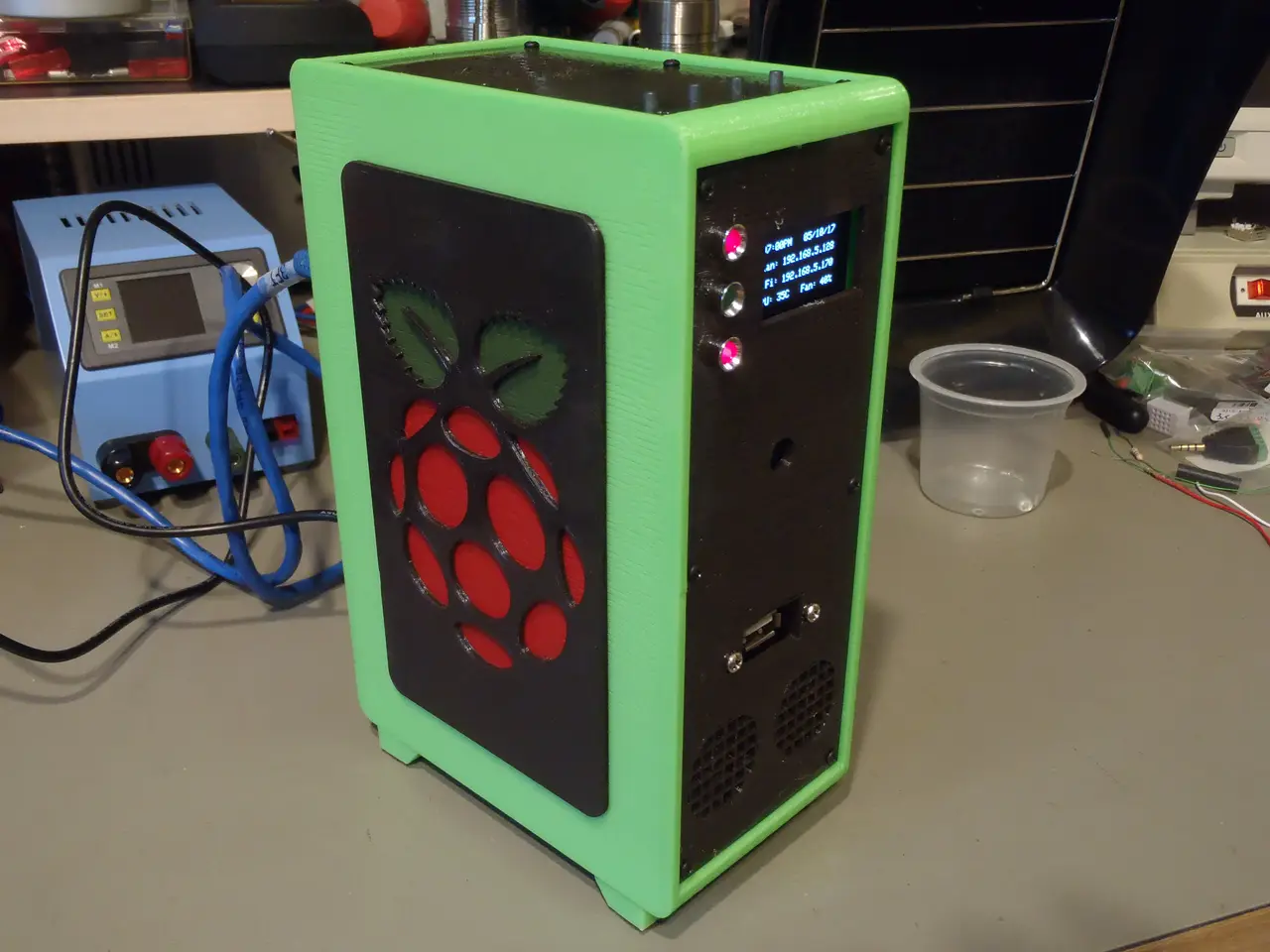

Raspberry Pi Desktop Tower Case
por Joey en Thingiverse
I setup a Raspberry Pi 3 to experiment with ROS, OpenCV, and whatever else I felt like looking into, and I wanted a desktop case for it. I started trying to duplicate the look of the Intel NUC stuff, but ended up doing a "micro" version of a desktop PC tower case. The basic specs for the setup are..
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Joey.
Archivos (22)
- feet.stl STL · 85 KB
- frame.stl STL · 393 KB
- bottom.stl STL · 598 KB
- logo.stl STL · 915 KB
- cover.stl STL · 89 KB
- brackets.stl STL · 157 KB
- jig.stl STL · 216 KB
- front.stl STL · 1,4 MB
- base.stl STL · 351 KB
- top.stl STL · 711 KB
- side.stl STL · 374 KB
- OLED.scad SCAD · 3 KB
- Pi_NUC.scad SCAD · 4 KB
- Box.scad SCAD · 30 KB
- PiBracket.scad SCAD · 4 KB
- Pi.scad SCAD · 4 KB
- Drives.scad SCAD · 1 KB
- back4.stl STL · 123 KB
- back3.stl STL · 204 KB
- RaspBerryPi.scad SCAD · 8 KB
- Pi_NUC.scad SCAD · 4 KB
- code.zip ZIP · 643 KB
- Categoría
- Tecnología
- Formatos
- STL, SCAD, ZIP
- Descargas
- 10,853
- Publicado
Sobre este modelo

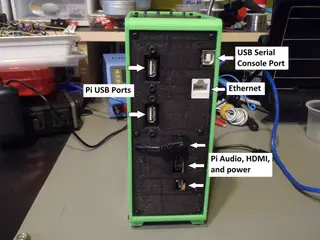

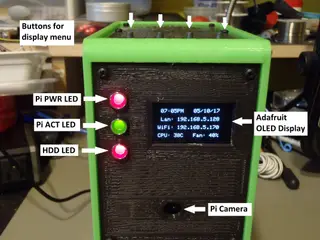

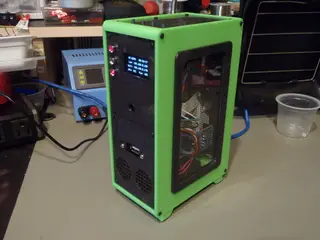

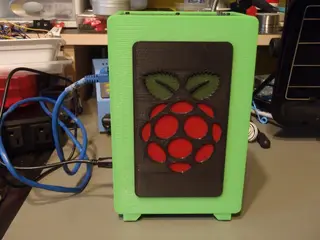

I setup a Raspberry Pi 3 to experiment with ROS, OpenCV, and whatever else I felt like looking into, and I wanted a desktop case for it. I started trying to duplicate the look of the Intel NUC stuff, but ended up doing a "micro" version of a desktop PC tower case. The basic specs for the setup are: - Raspberry Pi 3 with WD Pi drive (314GB) as the boot disk. (No SD card at all) - Pi camera - Adafruit audio amp driving stereo speakers (Okay, they are a bit close together.) - Pi and HD LED's moved to the front panel. - Adafruit 128x64 OLED display and four buttons. Used for menu system to start stuff, show status, and reboot/shutdown system. - All Pi USB & Ethernet ports brought out to panel mount sockets. - Pi serial console port connected to USB serial adapter on back panel. - Variable speed cooling fan, speed based on CPU temp. - Raspberry Pi logo on case side. - Clear removable window on other case side.
Descripción original del autor, publicada en Thingiverse.
