Raspberry Pi case for Prusa i3 / i3 Mk2
por Sascha Goftari en Thingiverse
The progress of this case is unfortunately discontinuted. I have built an enclosure for my printer and have no longer the Pi mounted onto the frame. There are some remixes available that addresses the compatibility issues with the newer electronics case on the MK2S. The old design files are...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Sascha Goftari.
Archivos (10)
- Base_Rasp2.STL STL · 66 KB
- Base_Rasp3_NoSpringSDSlot.STL STL · 65 KB
- Lid.STL STL · 214 KB
- Old_rasp2_base.STL STL · 747 KB
- Old_rasp3_base_NoSpringSD.STL STL · 747 KB
- Old_rasp2-3_lid_.STL STL · 367 KB
- Old_rasp2-3_lid_gpio.STL STL · 371 KB
- Old_rasp1_base.STL STL · 73 KB
- Old_rasp1_lid.STL STL · 212 KB
- Old_rasp1_lid_gpio.STL STL · 221 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 17,123
- Publicado
Sobre este modelo

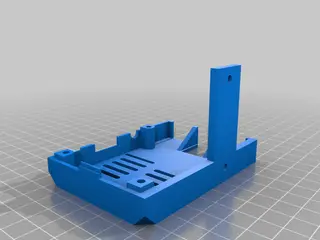

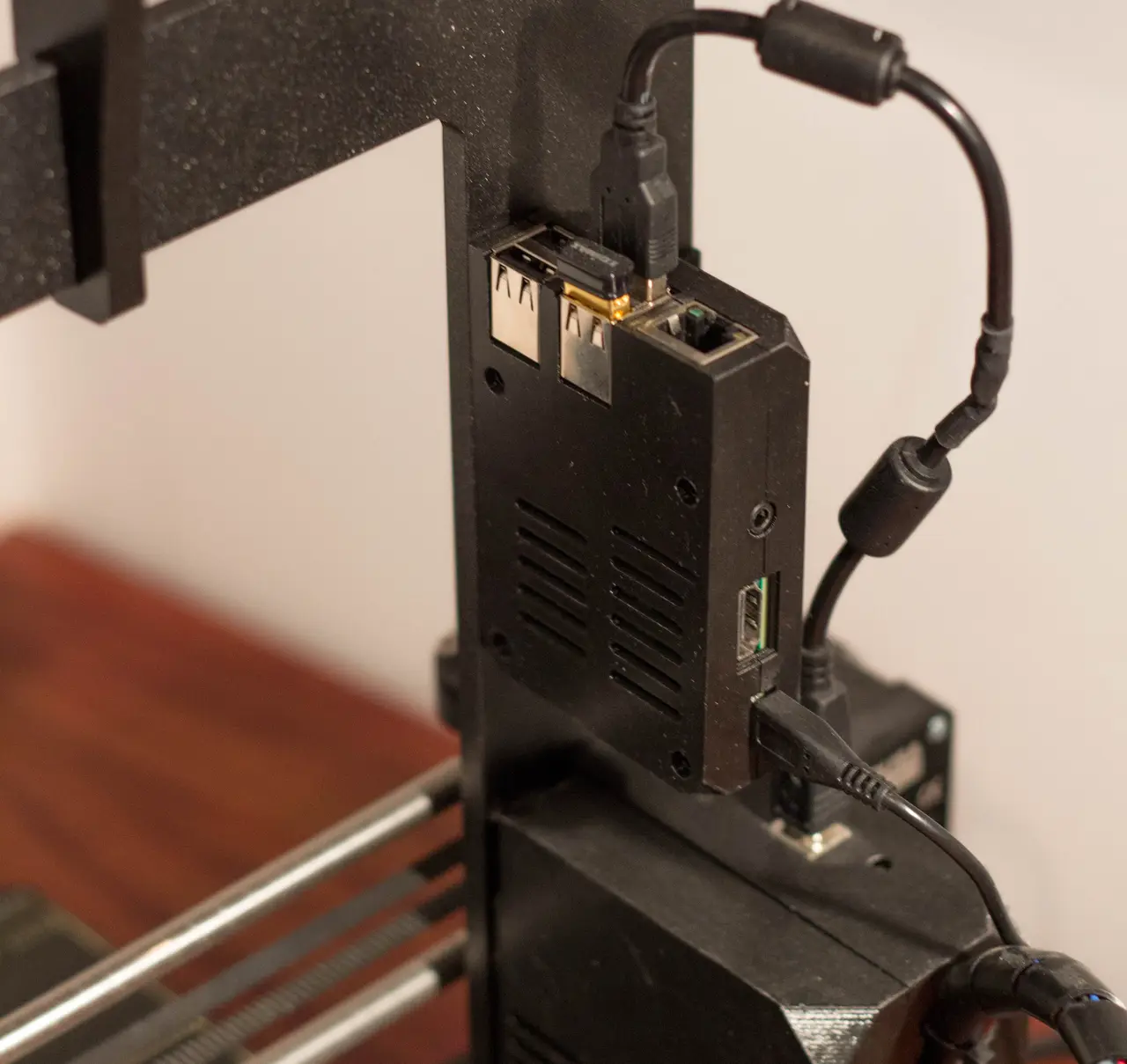

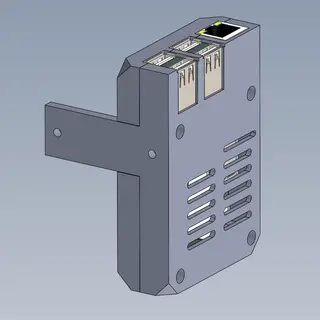

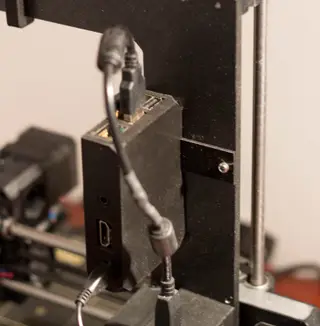

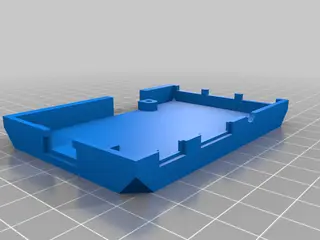

The progress of this case is unfortunately discontinuted. I have built an enclosure for my printer and have no longer the Pi mounted onto the frame. There are some remixes available that addresses the compatibility issues with the newer electronics case on the MK2S. The old design files are re-uploaded per request. This is my custom made case for the Raspberry Pi computers for those that want to run a 3D print server like OctoPrint. The case is mounted on the back side of the frame, just above the electronics with Z clearance in mind. The Z axis can hit the maximum level without any issues on neither the Z axis or the X carriage. There is also a slot ready for using the Raspberry Pi camera if you want to monitor your prints. Combined with a WiFi USB dongle this makes for a very portable printer!
Descripción original del autor, publicada en Thingiverse.
