Raspberry Pi Camera part for Drogerdy Tank Bot

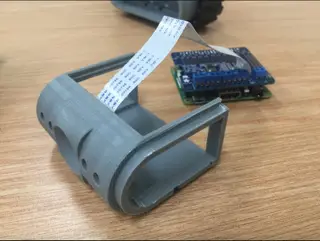

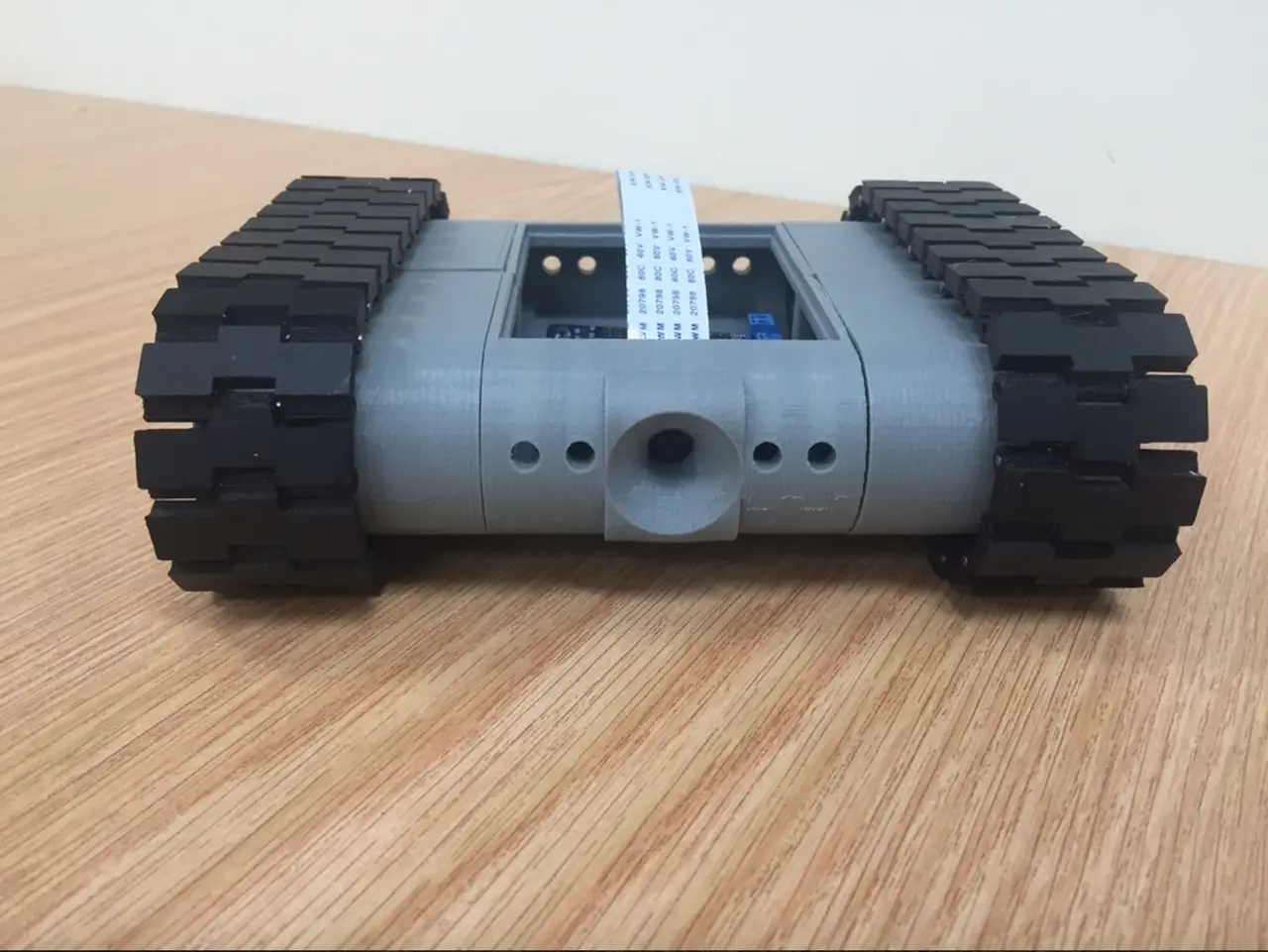

This is a replacement body part for the Drogerdy Tankbot that allows it to integrate a Raspberry Pi Camera straight into the body.

Careful design of the internal electronics and you could make this a streamlined mobile surveillance camera!

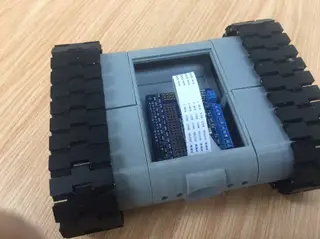

ADDED: Internal Component Rack

Video: https://www.youtube.com/watch?v=6MOlFp5fiKM

Instructions

Print out from the Main Drogerdy Files at https://www.myminifactory.com/object/drogerdy-raspberry-pi-controlled-tank-bot-16328

1 x Body Part

2 x inner frames

4 x outer track frames

4 x inner track frames

52 x track

The print out the camera body part from this page.

Glue together putting the motors in first before you glue the body parts in.

These motors : https://solarbotics.com/product/gm3/ or similar from China (yellow on ebay for $2 each!)

Screw the camera in.

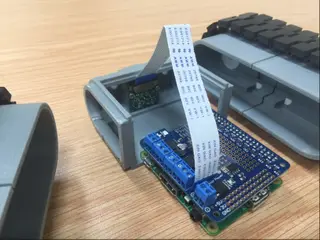

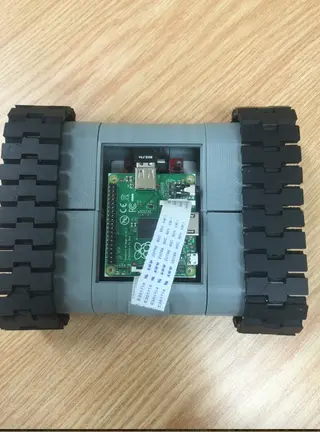

The other components are up to you .... but I am using an A+ and the items as per the links below and have designed my rack accordingly.

Use 2mm stainless steel pins to join the tracks.

I used this power converter:

http://www.ebay.com.au/itm/DC-To-DC-Converter-Buck-Step-down-Voltage-LED-Power-Module-3A-12V-To-5V-3-3V-/170934190732?pt=LH_DefaultDomain_15&hash=item27cc78c28c

I used this motor shield:

http://www.ebay.com.au/itm/L298N-Dual-H-Bridge-DC-Stepper-Motor-Mover-Controller-Board-Module-for-Arduino-/321697124621?pt=LH_DefaultDomain_15&hash=item4ae6a4910d
