Raspberry Pi Camera Mount to 1515 and 2020 Extrusion
Raspberry Pi Camera Mount to 1515 and 2020 Extrusion.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Evan M.
Archivos (8)
- Camera Mount Assembly.step STEP · 1,2 MB

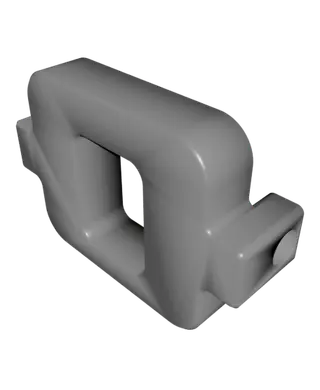

- Side Mount - Part 1 (1).stl STL · 48 KB

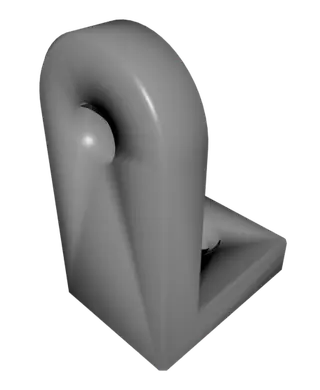

- Camera Holder - Part 1.stl STL · 141 KB
- 2020-1515-Slidr-Camera parts - Mount_x1 (2).stl STL · 522 KB
- Side Mount - Part 1 (1).stl STL
- Camera Holder - Part 1.stl STL
- 2020-1515-Slidr-Camera parts - Mount_x1 (2).stl STL
- 1515Assembly.step STEP
- Categoría
- Tecnología
- Formatos
- STEP, STL
- Descargas
- 129
- Publicado
Sobre este modelo

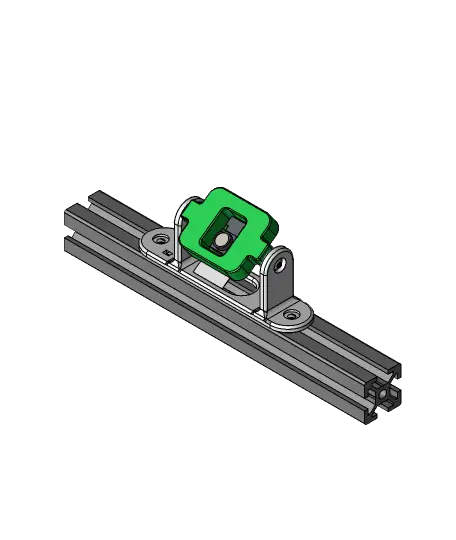

Raspberry Pi Camera Mount to 1515 and 2020 Extrusion.

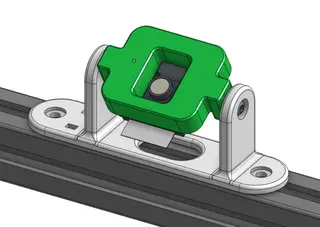

Both 1515 and 2020 versions use the same camera holder, however the 1515 version uses 2 mirrored side holders compared to a single holder body.
BoM:
Camera Mount: x2 M3 Heatset inserts x2 M3x6 BHSC
2 Preload Nuts & Screws x2 M3x8 BHSC x2 M3 Nut
Attaching Camera x4 M2x6.5 Self Tapping Screw
This model is derived from the PanzerObserver2.4 https://github.com/Slidr666/VoronUsers/tree/18599db8c29c9a272f852d1dac9ad5d014d0a496/printer_mods/Slidr/PanzerObserver2.4
Onshape Links: 2020 Extrusion: https://cad.onshape.com/documents/e5fda536f02fdd4e68e578f8/w/f4ecead3410952e5a1a6642c/e/41bc20f79df24ed93664d350 1515 Extrusion: https://cad.onshape.com/documents/297c2396f70592f537f846f3/w/1ca1ed6a205c6c9cd3034012/e/212e9bb7d4e0cee9a912bc13
Descripción original del autor, publicada en Thangs.
