Raspberry Pi & BigTreeTech Pico 40mm Fan Mount - Pi Zero 2W 3 4

Mmmmm Pi Cooling...

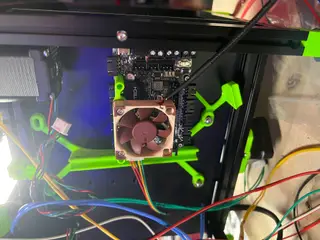

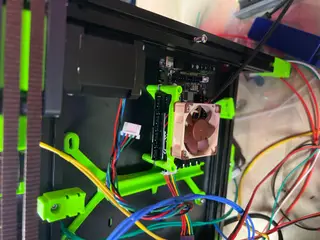

While assembling my Voron V0.1 with a BigTreeTech Pico board and the Raspberry Pi Zero 2W, I decided they both needed additional cooling. Since both use the same hole spacing I was able to design one fan mount to rule them all!

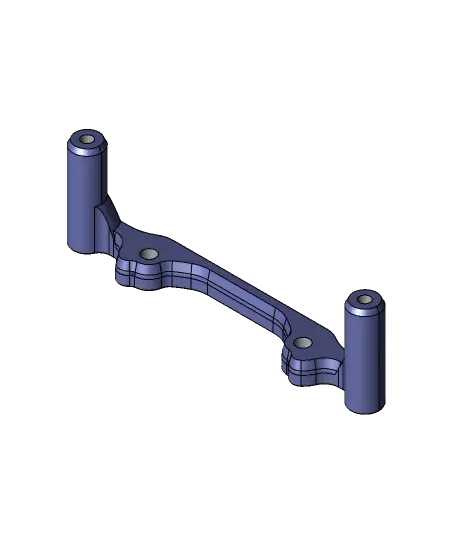

Mounts a 40mm fan above the board of your choosing. I've confirmed it fits on the BigTreeTech Pico mainboard, Raspberry Pi Zero 2W (same hole space as regular Zero), and a Raspberry Pi 4. It should fit a Pi 3 as well (yet to confirm).

Uses M3 screws to mount the Fan to the bracket (thread into the plastic) and M2 Screws to mount through the Pi / BTT Pico board.

--------------------------------------------------------------- - Necessary Hardware (Affiliate Links): - 40mm Fan: https://amzn.to/3KlTgHm - 2x M3 Screws (to Mount the Fan): https://amzn.to/3JPkTIz - 2x M2 Screws (to mount Bracket / Board) - BigTreeTech Pico Board: https://amzn.to/3HLswOF - Raspberry Pi Zero 2W: https://www.raspberrypi.com/products/raspberry-pi-zero-2-w/ - Raspberry Pi 4: https://amzn.to/3pHeyas

--------------------------------------------------------------- - PRINT PARAMETERS: - Recommend 3 Perimeters - 10%+ Infill (I use Rectilinear) - NO Supports Required

---------------------------------------------------------------
