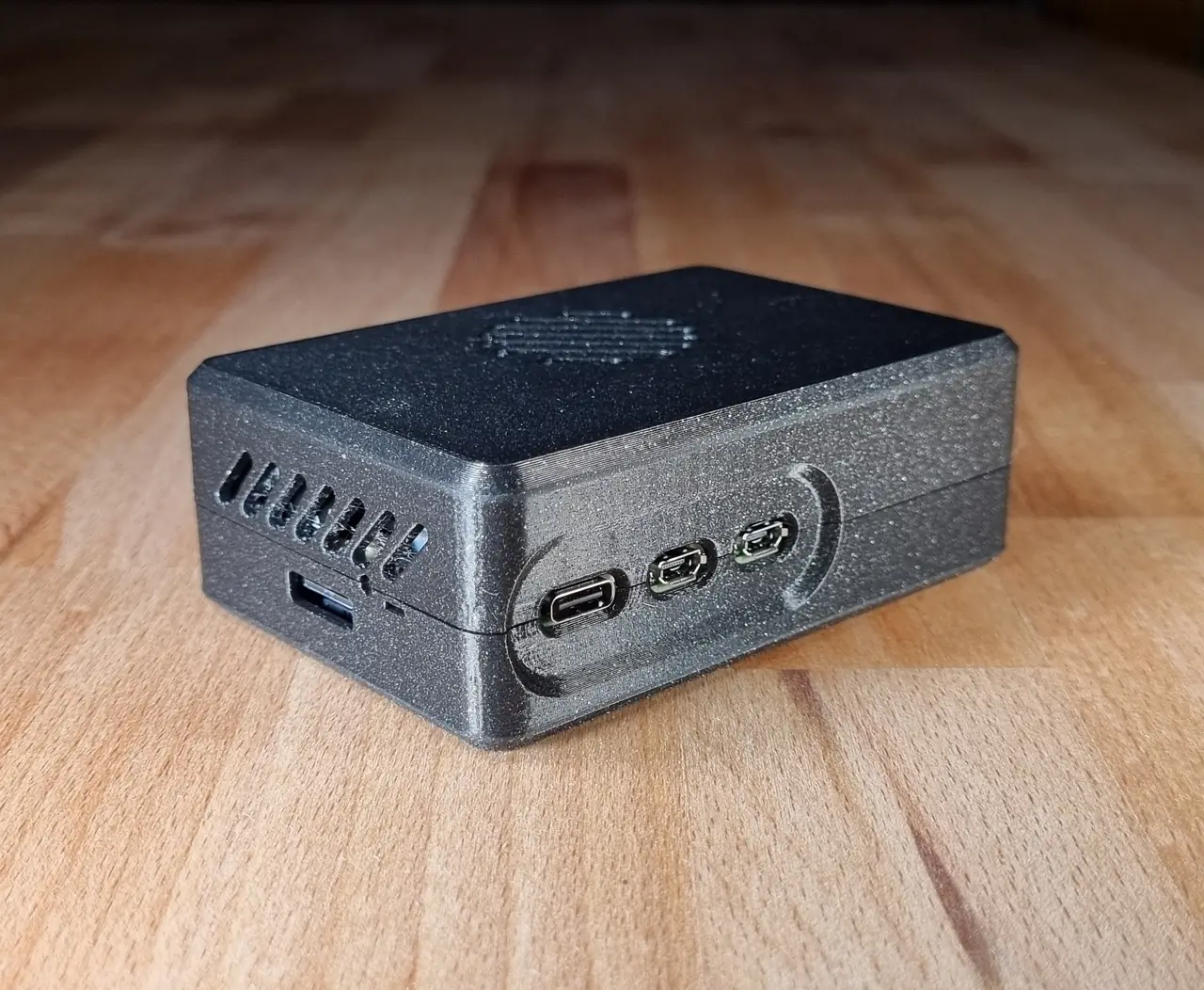

Raspberry Pi 5 + Pimoroni NVME Base Case
por LUC4R4T0R en Printables
A remix of pyrho's Pi 5 case with support for the Pimoroni NVME Base added + Now with support for NVMe Base Duo
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a LUC4R4T0R.
Archivos (7)
- Categoría
- Tecnología
- Formatos
- 3MF
- Descargas
- 2,427
- Publicado
Sobre este modelo
I recently received the NVME Base by Pimoroni for my Raspberry Pi 5. I noticed that there are only a few cases which accommodate it. I was sure that I could remix a nice case to change that. Here it is… Update: Added different bottom shell for NVMe Base Duo (long term usage not tested) A Pimoroni NVMe Base Duo was kindly provided by RaspberryStore.nl , as a reference.
#HowTo Print Place the halves of the case with their largest flat side facing towards the print-bed. The material is your choice. I simply used PLA. I used 0.15mm Layers but everything ≤0.2mm should work.
#HowTo Assemble - Install the NVME Base to your Pi by following Pimoroni's installation-instructions (https://youtu.be/odG7FbptgWQ). - Insert the assembly carefully into the bottom shell with the NVME-base facing down and the micro-SD-slot facing its designated opening. - Snap fit the top and you are done! 🎉
Descripción original del autor, publicada en Printables.
