Raspberry Pi 4B Case
por Michael Kellsy en Thingiverse
A Raspberry Pi 4B case with honeycomb vents. This has 384 different configurations. Here is the matching Raspberry Pi 3B+ case. https://www.thingiverse.com/thing:3361218 If you are looking for a touchscreen case, check out my matching official Raspberry Pi touchscreen case here...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Michael Kellsy.
Archivos (59)
- BOTTOM.STL STL · 882 KB
- BOTTOM_75MM_VESA.STL STL · 933 KB
- BOTTOM_BLANK.STL STL · 211 KB
- BOTTOM_75MM_VESA_BLANK.STL STL · 264 KB
- BOTTOM_100MM_VESA.STL STL · 944 KB
- BOTTOM_100MM_VESA_BLANK.STL STL · 275 KB
- BOTTOM-8020.STL STL · 930 KB
- BOTTOM-8020_BLANK.STL STL · 260 KB
- TOP.STL STL · 770 KB
- TOP_SLOTTED.STL STL · 778 KB
- TOP_BLANK.STL STL · 308 KB
- TOP_SLOTTED_BLANK.STL STL · 339 KB
- TOP_25MM.STL STL · 724 KB
- TOP_25MM_SLOTTED.STL STL · 725 KB
- TOP_25MM_BLANK.STL STL · 352 KB
- TOP_25MM_SLOTTED_BLANK.STL STL · 385 KB
- TOP_30MM.STL STL · 681 KB
- TOP_30MM_SLOTTED.STL STL · 686 KB
- TOP_30MM_BLANK.STL STL · 353 KB
- TOP_30MM_SLOTTED_BLANK.STL STL · 385 KB
- TOP_40MM.STL STL · 591 KB
- TOP_40MM_SLOTTED.STL STL · 594 KB
- TOP_40MM_BLANK.STL STL · 351 KB
- TOP_40MM_SLOTTED_BLANK.STL STL · 368 KB
- FULL-TOP.STL STL · 769 KB
- FULL-TOP_SLOTTED.STL STL · 3,8 MB
- FULL-TOP_BLANK.STL STL · 307 KB
- FULL-TOP_SLOTTED_BLANK.STL STL · 338 KB
- FULL-TOP_25MM.STL STL · 723 KB
- FULL-TOP_25MM_SLOTTED.STL STL · 724 KB
- FULL-TOP_25MM_BLANK.STL STL · 351 KB
- FULL-TOP_25MM_SLOTTED_BLANK.STL STL · 384 KB
- FULL-TOP_30MM.STL STL · 681 KB
- FULL-TOP_30MM_SLOTTED.STL STL · 685 KB
- FULL-TOP_30MM_BLANK.STL STL · 352 KB
- FULL-TOP_30MM_SLOTTED_BLANK.STL STL · 384 KB
- FULL-TOP_40MM.STL STL · 590 KB
- FULL-TOP_40MM_SLOTTED.STL STL · 593 KB
- FULL-TOP_40MM_BLANK.STL STL · 350 KB
- FULL-TOP_40MM_SLOTTED_BLANK.STL STL · 367 KB
- SLIM-TOP.STL STL · 770 KB
- SLIM-TOP_SLOTTED.STL STL · 778 KB
- SLIM-TOP_BLANK.STL STL · 308 KB
- SLIM-TOP_SLOTTED_BLANK.STL STL · 339 KB
- SLIM-TOP_25MM.STL STL · 724 KB
- SLIM-TOP_25MM_SLOTTED.STL STL · 725 KB
- SLIM-TOP_25MM_BLANK.STL STL · 352 KB
- SLIM-TOP_25MM_SLOTTED_BLANK.STL STL · 385 KB
- SLIM-TOP_30MM_BLANK.STL STL · 353 KB
- SLIM-TOP_30MM.STL STL · 682 KB
- SLIM-TOP_30MM_SLOTTED_BLANK.STL STL · 385 KB
- SLIM-TOP_30MM_SLOTTED.STL STL · 686 KB
- SLIM-TOP_40MM.STL STL · 591 KB
- SLIM-TOP_40MM_SLOTTED.STL STL · 594 KB
- SLIM-TOP_40MM_BLANK.STL STL · 352 KB
- SLIM-TOP_40MM_SLOTTED_BLANK.STL STL · 368 KB
- GRILL_25MM.STL STL · 143 KB
- GRILL_30MM.STL STL · 176 KB
- GRILL_40MM.STL STL · 277 KB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas (todas las plataformas)
- 121,736
- Publicado
También en
Sobre este modelo

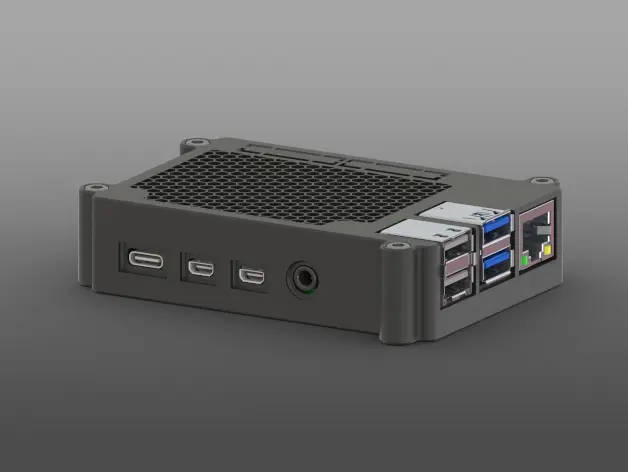

A Raspberry Pi 4B case with honeycomb vents. This has 384 different configurations. Here is the matching Raspberry Pi 3B+ case. https://www.thingiverse.com/thing:3361218 If you are looking for a touchscreen case, check out my matching official Raspberry Pi touchscreen case here. https://www.thingiverse.com/thing:4610955 Or do you have a hat and need some extra cooling? Check out the wind tunnel version. https://www.thingiverse.com/thing:4611538 Compatibility - Raspberry Pi 4 Model B

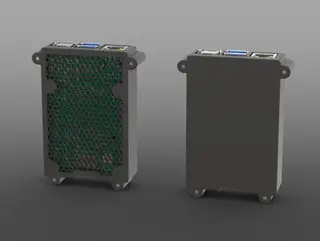

Configurations This includes multiple mount configurations; - 75 mm VESA mounts - 100 mm VESA mounts - 8020 mounts - No mounts
Also included are multiple top configurations; - Standard - Slotted for display and camera ribbons - 25 mm, 30 mm and 40 mm fan cutouts - Clean version (great for modding and remixing)

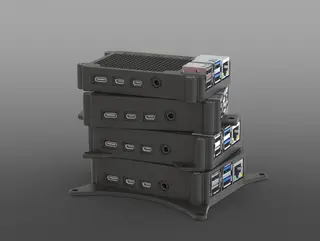

And then there are different body styles - Standard - Full - Slim

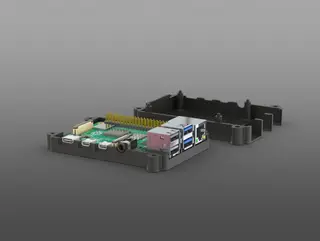

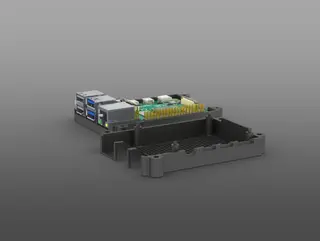

Mix and match 8 bases with 16 different tops and 3 different body styles. That's 384 different configurations. Assembly To assemble you will need - A #6-32 tap. - 4 x #6-32 x 3/4 socket head cap screws. - (slim body) 4 x #6-32 x 1/2 socket head cap screws.
More detailed instructions can be found here. Assembly Instructions. Updates 8/11/2019 Update. - Added full body version. - Added slim body version.
8/16/2019 Update. - Added fan grills
This is remixed from 0110-M-P's design, however it is not compatible with it. This has a different bolt pattern.
Descripción original del autor, publicada en Thingiverse.
