Raspberry Pi 4 Cluster Case
por JP en Printables
A case for a Raspberry Pi 4 Cluster
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a JP.
Archivos (12)
- GS108E Slot v11.step STEP · 662 KB
- RPi Slot v11.step STEP · 65 KB
- ANKER 10-Port Charger v16.step STEP · 368 KB
- Cluster Back v2.step STEP · 812 KB
- RPi Slot Small Ports v4.step STEP · 69 KB
- Cluster Core v2.step STEP · 1,6 MB
- Cluster_Core_v2.3mf 3MF · 173 KB
- Cluster_Core_v2.stl STL · 3,8 MB
- Cluster_Back_v2.3mf 3MF · 87 KB
- Cluster_Back_v2.stl STL · 1,7 MB
- Cluster_Back_v1.3mf 3MF · 69 KB
- Cluster_Back_v1.stl STL · 1,3 MB
- Categoría
- Tecnología
- Formatos
- STEP, 3MF, STL
- Descargas
- 1,634
- Publicado
Sobre este modelo

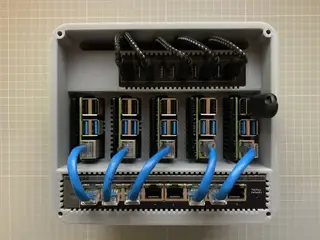

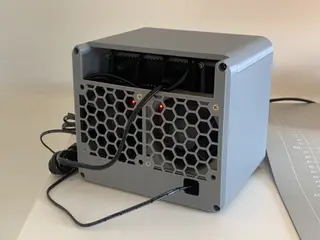

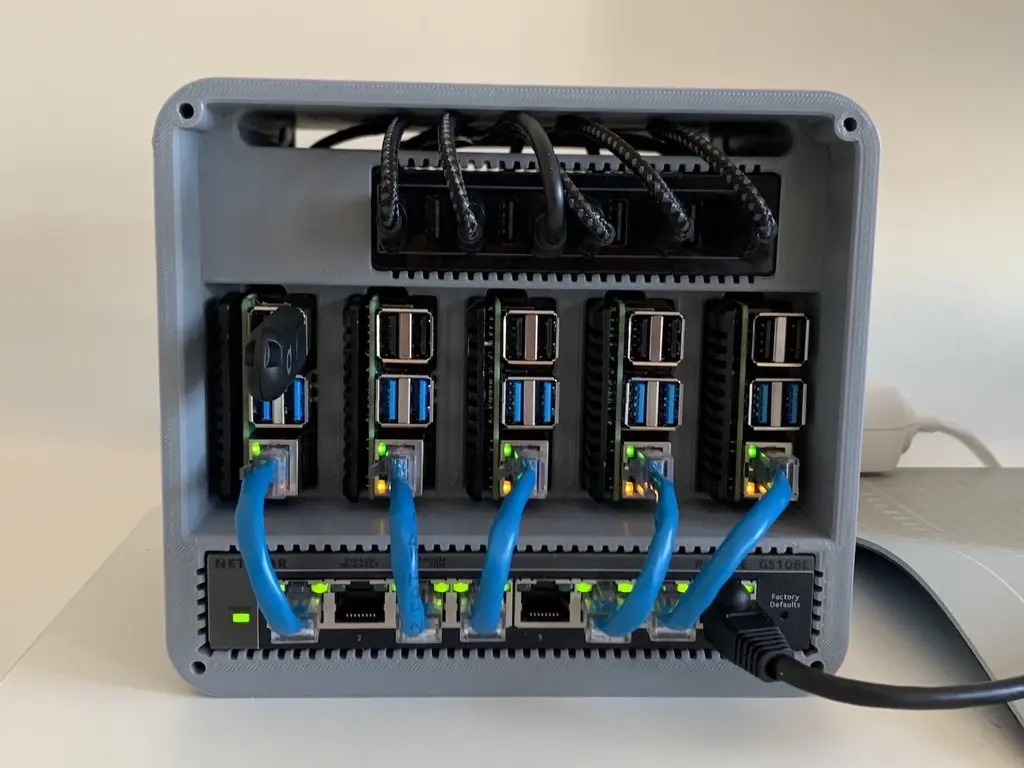

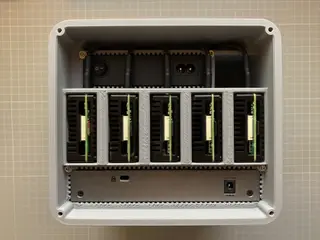

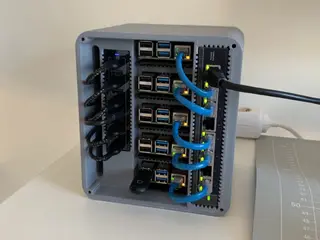

A case for a Raspberry Pi 4 Cluster. Components used in project: - 5x Raspberry Pi 4 Model B - 5x PIMORONI Aluminium Heatsink Case - 5x Belkin - USB-A to USB-C cable 15cm - 5x Network cable 12cm - 1x Netgear GS108Ev3 - 1x ANKER 60W 10-Port Desktop Charger - 2x Fans 80mm 12V (Wired to 5V USB plug) - 4x M4 12mm screw (To attach back to core) - 4x M3 12mm screw (To secure switch and PSU) - 4x M3 washer (To secure switch and PSU)
Notes: Core: * Print with back down towards build plate * Supports needed for inner structure (first ~40mm) Back: - Print with back (flat) side towards build plate - Supports needed in corners where the M4 screw holes are
