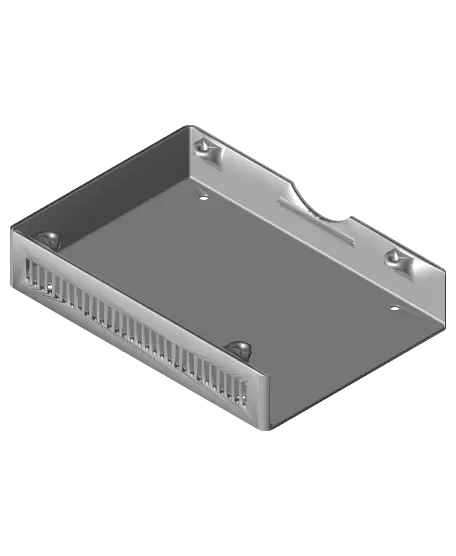

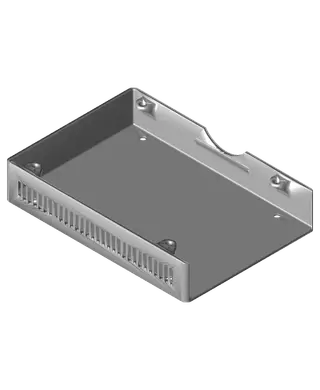

Raspberry Pi 4 B SSD & 30mm Fan Case

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:6220795.

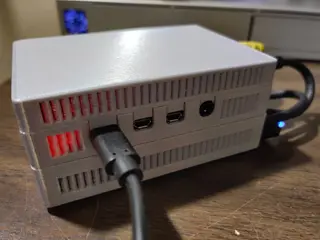

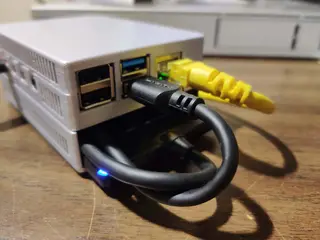

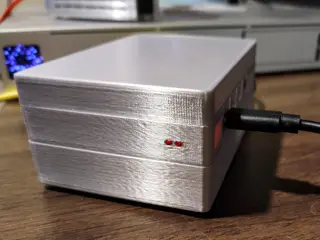

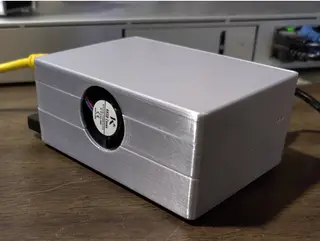

This Raspberry Pi 4 case was designed with the goal of housing an SSD SATA drive and a 30mm x 30mm x 7.6mm PWM fan. I like running SSDs on my Raspberry Pi(s) that I have critical services running on like my MQTT broker and OpenVPN server because they are way more reliable than MicroSD cards.

There are two versions of the top, one with access slots and one without.

ADDITIONAL STUFF YOU WILL NEED:

SSD/NAND SATA III 6Gb/s 2.5" 7mm Internal Solid State Drive

USB 3.0 or 3.1 Type A to SSD/2.5 Inch SATA Hard Drive Adapter (I used a SABRENT branded one, and the Pi 4 can only support up to USB 3.0)

5V Fan 30mm 3 Pin PWM (I used the KKSB branded one on Amazon.com)

Scotch SP951-NA Bumpers and Door Stops, 1/2" Round, Clear (4) (stick to bottom of case)

M3, M2.5 Taps & Plastic safe cutting Oil (I used Super Lube Oil with PTFE)

8 x M3 & 4 x M2.5 screws. (I used 8 dome head PC HD screws and 4 M2.5 screws to mount the Pi)

A set of heat sinks designed for the Raspberry Pi 4b.
