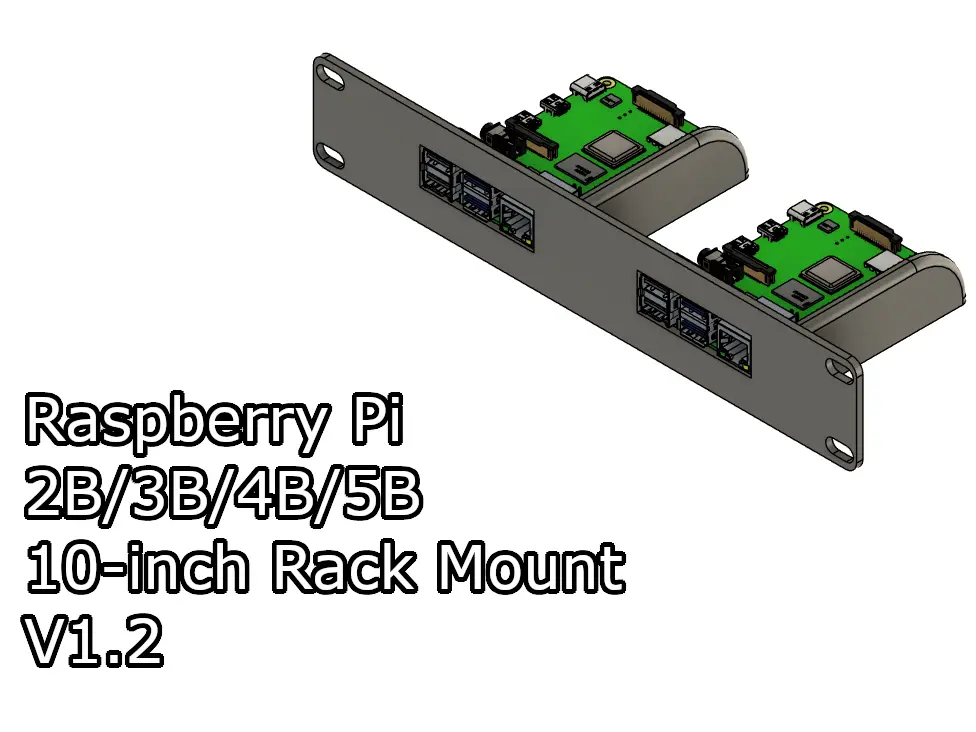

Raspberry Pi 2B/3B/4B/5B 10-inch Rack Mount
por Maurício Pessoa en Printables

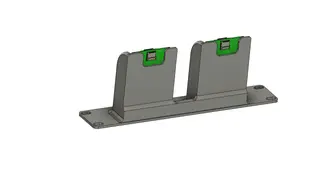

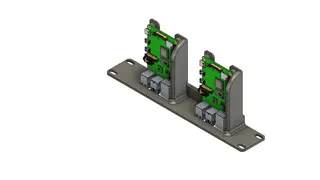

A 10-inch rack mount for two Raspberry Pi devices. Compatible with RPi 2B, 3B, 4B and 5B
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Maurício Pessoa.
Archivos (7)
- Categoría
- Tecnología
- Formatos
- 3MF, STL
- Descargas
- 2,528
- Publicado
Sobre este modelo

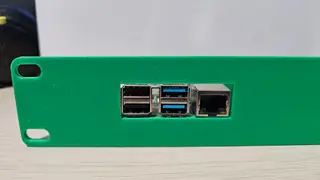

A 10-inch rack mount for two Raspberry Pi devices. Compatible with RPi 2B, 3B, 4B and 5B. This model is part of a series of 10-inch rack mounts I've designed. You can check out the others here. Do you like my models? Consider buying me a coffee ;)
Updates - 02 Aug. 2025: I've included the version 1.2 of this model, with the following modifications:- Added a non thread insert variant of the model. - Added mounting holes all the way to the back, so you can also mount hats that require screws coming from below.
- 11 Feb. 2025: I've released the version 1.1 of this mount, with cutouts for the micro SD cards, making it easier to insert and remove them. I have also reinforced the mount, making it sturdier.
Required parts - (Optional) 8x M2.5 thread inserts. - 8x M2.5 screws.

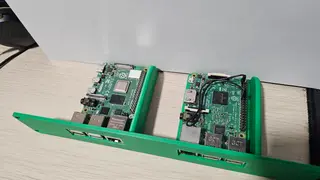

Assembly instructions - If using the thread insert variant, insert the 8x M2.5 thread inserts into the mount. - Insert your Raspberry Pi into the mount. - Secure it with 4x M2.5 screws. - Repeat the process for the other Pi.
Print Settings Rafts: Doesn't Matter. Supports: No. Resolution: 0.2 or 0.24 Walls/Perimeters: 3. Infill: 20% or more. Filament: Any.
Descripción original del autor, publicada en Printables.
