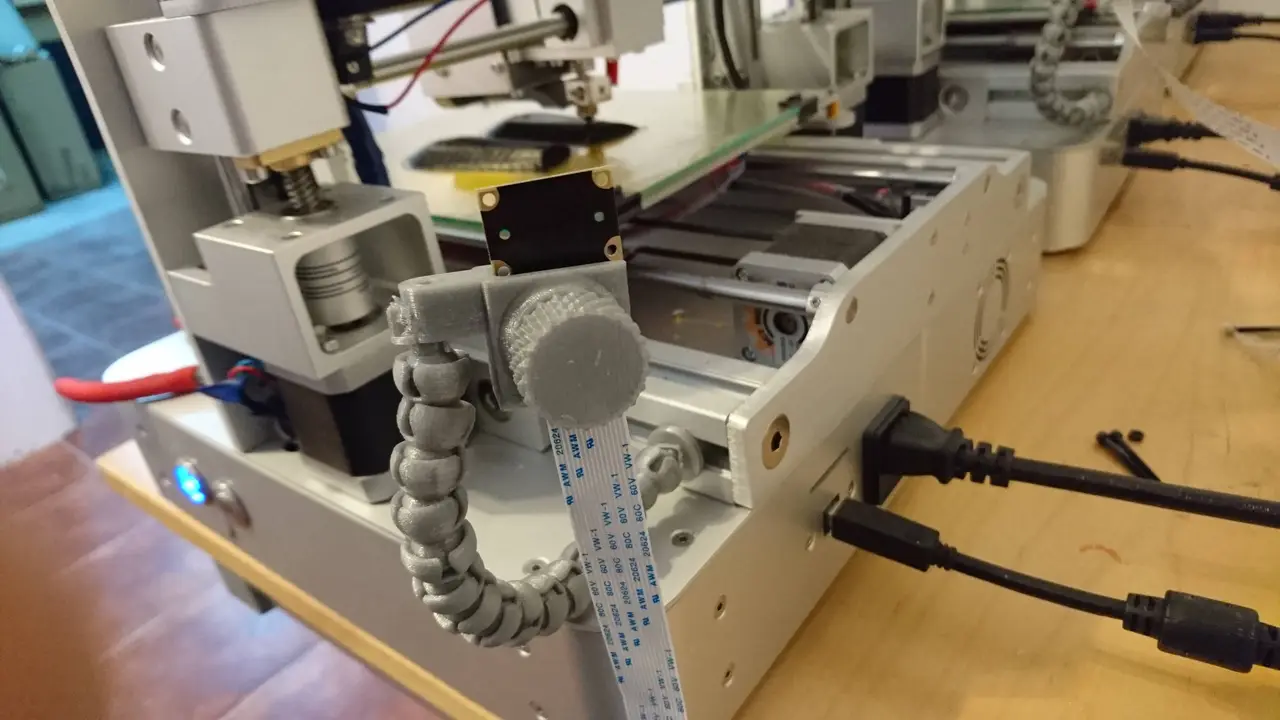

Rapide Lite/XL Raspberry Pi WebCam Camera Holder System
por bolsoncerrado en MyMiniFactory
Simple but very effective way to attach a holder for your RasPi camera (or any similar cam) to your Rapide Lite or Prusa like alu frame (using FrameMount.stl).
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalMyMiniFactory - Credit - Remix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a bolsoncerrado.
Archivos (10)
- 060c6af35d7f3116c0a8a4533242f80ba17e9174.stl STL
- 7b642a9269e6e6d7434b743cea960d36de4fb60c.stl STL
- 880c11606ecd02a0407de2b210fd59abcc9a65a1.stl STL
- Cam Base 5.Stl STL
- Clamp Bolt 4.Stl STL
- dcc0b77181fce01aaf3c13a6a559355fff7d4ccf.stl STL
- f46a7a5b2fe3dc5478e942a33788c464733d891e.stl STL
- Female Coupler 1.Stl STL
- Frame Mount 3.Stl STL
- Mount Clip 2.Stl STL
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 548
- Publicado
Sobre este modelo
Simple but very effective way to attach a holder for your RasPi camera (or any similar cam) to your Rapide Lite or Prusa like alu frame (using FrameMount.stl).
Print as many MountClip.stl's as you need. I use around 10-12 for mine. I suggest you to print the female coupler and the CamBase.stl using high infill (60% or more) and use the female coupler on the FrameMount side, NOT on the CamBase side, for rigidity purposes.
I've tested TONS of cam holders from different points and places and this works best for me. Let me know if you use this! :D
Descripción original del autor, publicada en MyMiniFactory.
