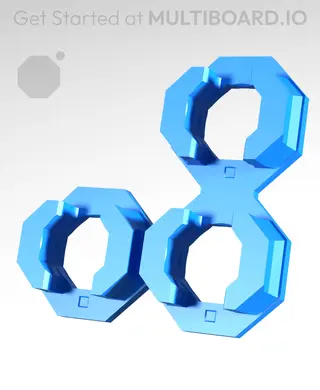

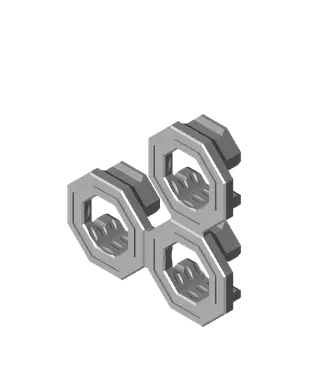

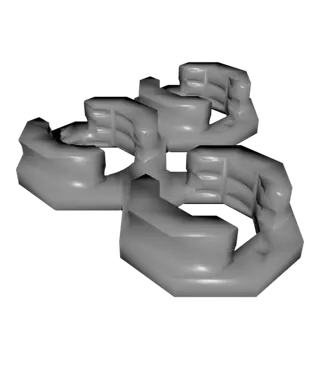

Raised Triple Snap (DS Part A)

“Triple Snap Connectors” are used to connect three tiles together with three snaps.

This is a “Double Sided Part A” piece, so it joins with the Triple Snap Connector - DS Part B to create nice looking snaps on both sides of your tiles.

This part comes with four tolerances: loose (0.65 mm), standard (0.5 mm), tight (0.25 mm) and permanent (0.15 mm).

(If you have to use the loose tolerance to fit this part in, then you’re going to have problems with the rest of the Multiboard system. Calibrate your printer to work with at least the standard tolerance)

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

UPDATE: All of the Double-Sided Snaps (Part A’s and Part B’s) have been updated and are NOT compatible with the old versions. (video about this coming soon)

You can still access the old parts in the Multiboard Legacy Parts listing.

—

This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io
