ELEVACIOTOLA: Raised Pet Bowl Stand, Anti-Spill Tray
Lift your pet's food or water bowl off the floor with ElevaCiotola, a raised dog and pet bowl stand with an anti-spill tray base. Your pet bends its neck less, and the tray keeps spills and crumbs off the floor.
What it does

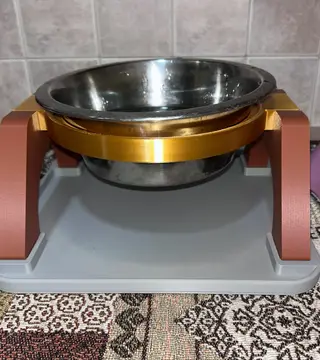

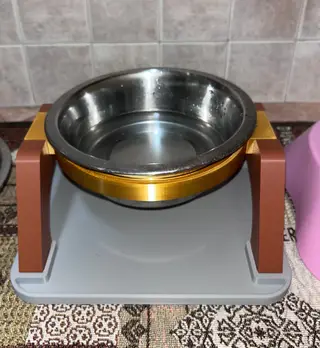

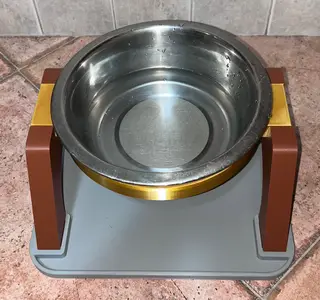

ElevaCiotola holds your existing bowl by its rim in a ring seat, about 100 mm above the floor. Two arched portals carry the ring, and the tray base with a raised edge catches whatever lands outside the bowl. Bowl not included The stand uses the bowl you already have. The bowl is not included and is not part of the print.
Which bowls fit
- Seat bore: Ø153 mm, made for bowls with a ~150 mm body and a wider rim
- The rim rests on a 7.5 mm ledge
- Rim height: ~100 mm from the floor
- The design is parametric (BOWL_D, up to ~156 mm), so it can be adapted on request or by remixing.

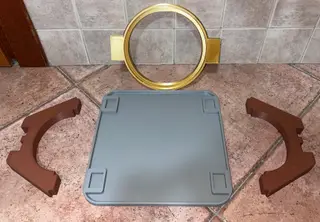

What's included (4 printed pieces, 3 STLs)
- Base (tray with raised edge): 244 x 244 x 12 mm, with 4 recesses for optional Ø12 mm rubber feet (not included)
- Ring seat (Anello): 224 x 180 x 16 mm
- 2x arched Portal (Portale): 95 x 201 x 20 mm each. Print this STL twice.

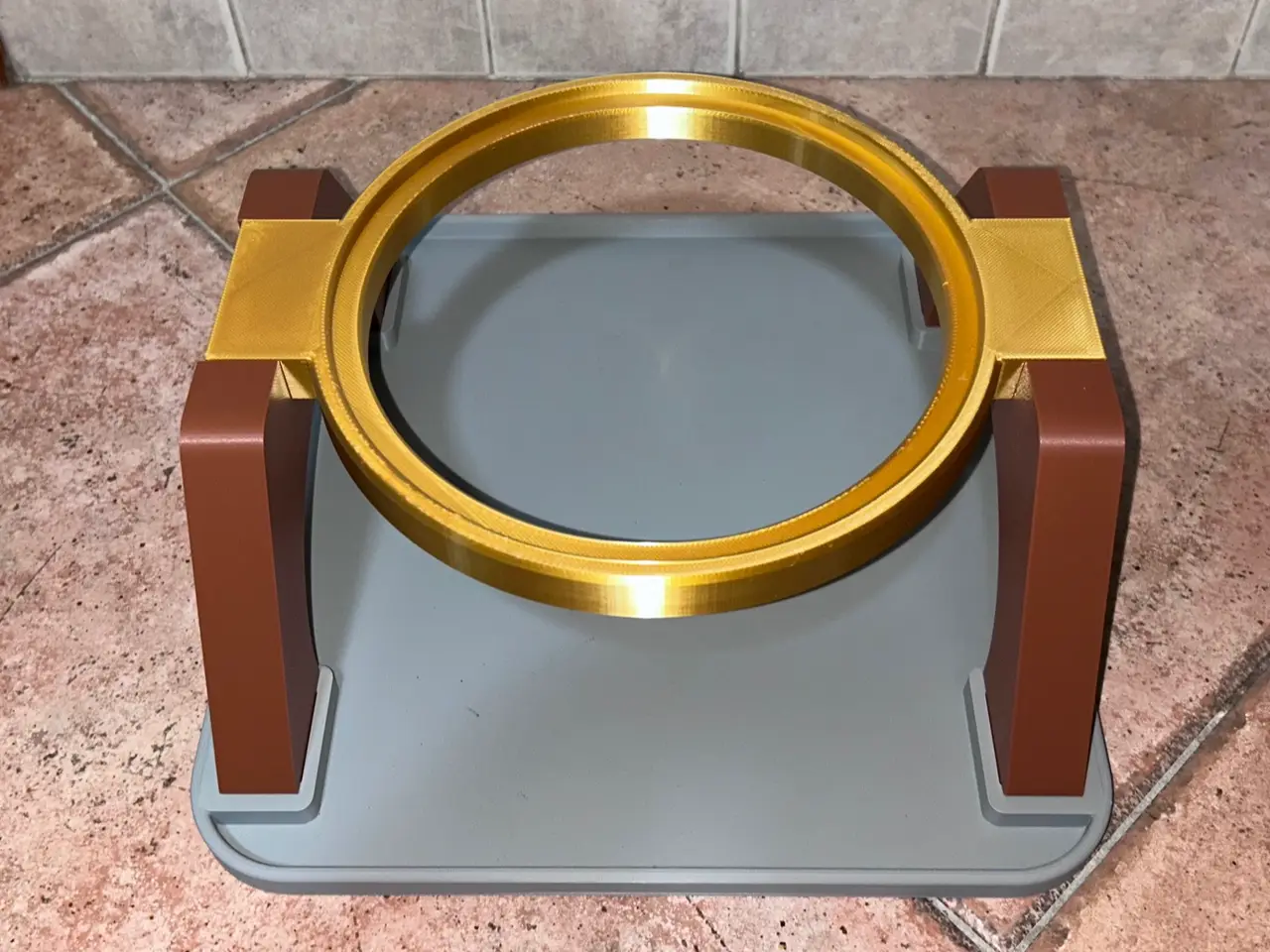

How to assemble
No glue, no hardware.
- Drop the portal tenons into the sockets in the tray.
- Set the ring on top so its lugs sit in the notches on the portals. A key stops the ring from rotating. All joints slide in vertically with 0.25 mm clearance per side.
⚠️ Lift it by the tray The joints don't latch. To move the stand, lift it by the tray, not by the ring.
Stable by design
The ring sits inside the base footprint, so a full bowl won't tip the stand.
Print settings (FDM)
- Material: PETG recommended (less warping, suited to a food and water area). PLA also works.
- Every part prints flat with no supports
- All parts fit a 256 x 256 mm bed
- The tray leaves only ~6 mm margin per side, so use a skirt instead of a brim
- Manifold meshes, ready for slicing
Print the four pieces, slot them together, hang your bowl in the ring, and give your pet a tidier, more comfortable place to eat and drink.
