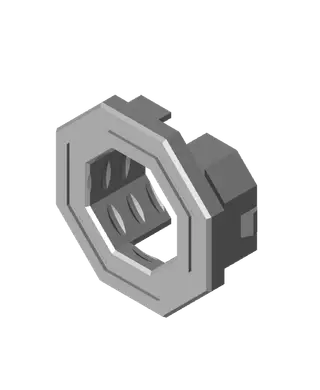

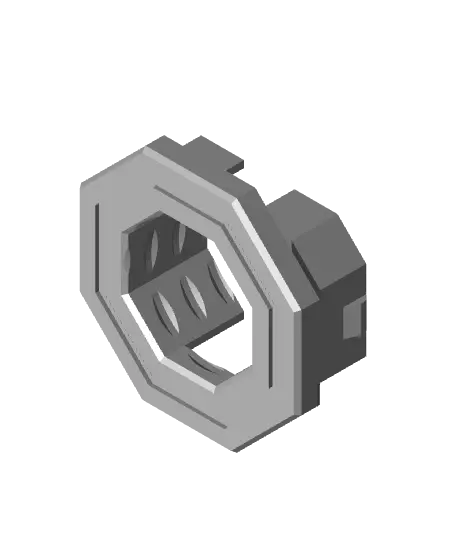

Raised Double-Sided Snap (DS Part A)

The “Double-Sided Snap - Part A” joins with the “DS Snap - Part B” to create nice-looking snaps on both sides of your tiles.

Remember: Part A’s join with Part B’s.

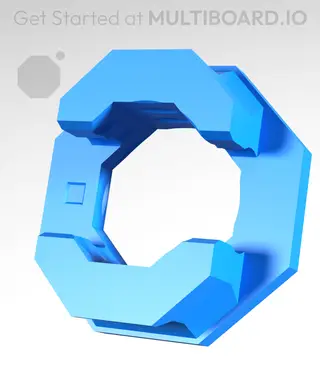

When joining them together, make sure to align the two square symbols.

This snap behaves like a regular snap with a push-fit hole to insert push-fit accessories or screw in mid thread bolts.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

UPDATE: All of the Double-Sided Snaps (Part As and Part Bs) have been updated and are NOT compatible with the old versions. Click here (https://www.youtube.com/watch?v=D6QzwYYZiBE) to discover what has changed.

You can still access the old parts in the Multiboard Legacy Parts listing.

—

This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io
