Radius Gauge Tool
por VC Design en Printables

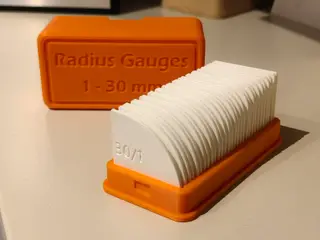

The Radius Gauge Tool is a compact, closable case containing 30 inserts for checking both internal and external radii :)
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a VC Design.
Archivos (32)
- BottomV2.stl STL · 1,1 MB
- TopV2.stl STL · 2,5 MB
- R4_27stl.stl STL · 155 KB
- R7_24.stl STL · 155 KB
- R14_17.stl STL · 76 KB
- R17_14.stl STL · 76 KB
- R24_7.stl STL · 155 KB
- R27_4.stl STL · 155 KB
- R5_26stl.stl STL · 418 KB
- R6_25stl.stl STL · 418 KB
- R15_16.stl STL · 339 KB
- R16_15.stl STL · 339 KB
- R21_10.stl STL · 307 KB
- R20_11.stl STL · 307 KB
- R18_13.stl STL · 511 KB
- R10_21.stl STL · 307 KB
- R22_9.stl STL · 430 KB
- R2_29.stl STL · 430 KB
- R13_18.stl STL · 512 KB
- R25_6.stl STL · 418 KB
- R12_19.stl STL · 351 KB
- R29_2.stl STL · 430 KB
- R9_22.stl STL · 430 KB
- R19_12.stl STL · 352 KB
- R11_20.stl STL · 307 KB
- R1_30.stl STL · 373 KB
- R26_5.stl STL · 418 KB
- R23_8.stl STL · 590 KB
- R8_23.stl STL · 591 KB
- R28_3.stl STL · 591 KB
- R30_1.stl STL · 373 KB
- R3_28.stl STL · 590 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 2,011
- Publicado
Sobre este modelo

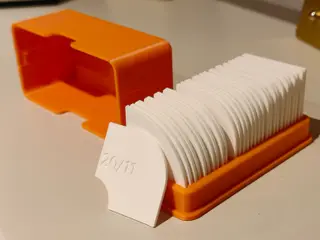

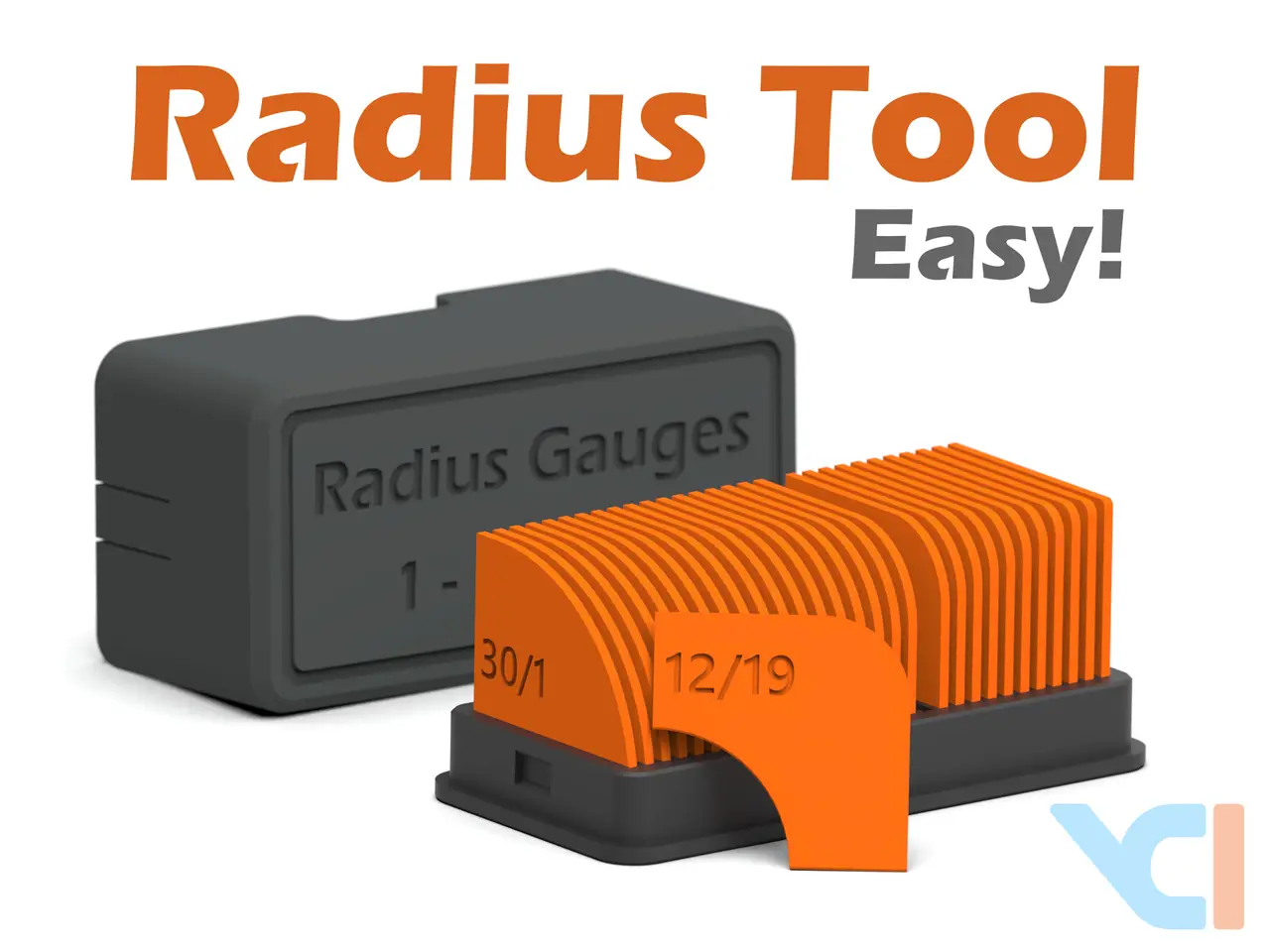

Each insert features two gauges, allowing you to quickly check the radius of a part without needing separate tools. The inserts are clearly marked with a code such as 23/8: - First number: internal radius gauge
- Second number: external radius gauge
The complete set provides a convenient and organized way to check a wide range of radii, while the closable case keeps all inserts together. Features - 30 interchangeable radius gauge inserts
- Checks both internal and external radii
- Clearly labelled inserts

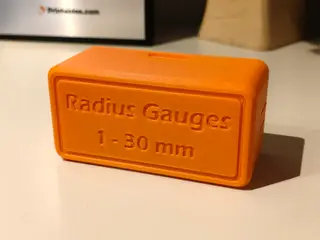

- Compact, closable case
- Prints without supports
Simple, secure, and reusable. - if you enjoy this model please consider to buy me a coffee :)
Descripción original del autor, publicada en Printables.
