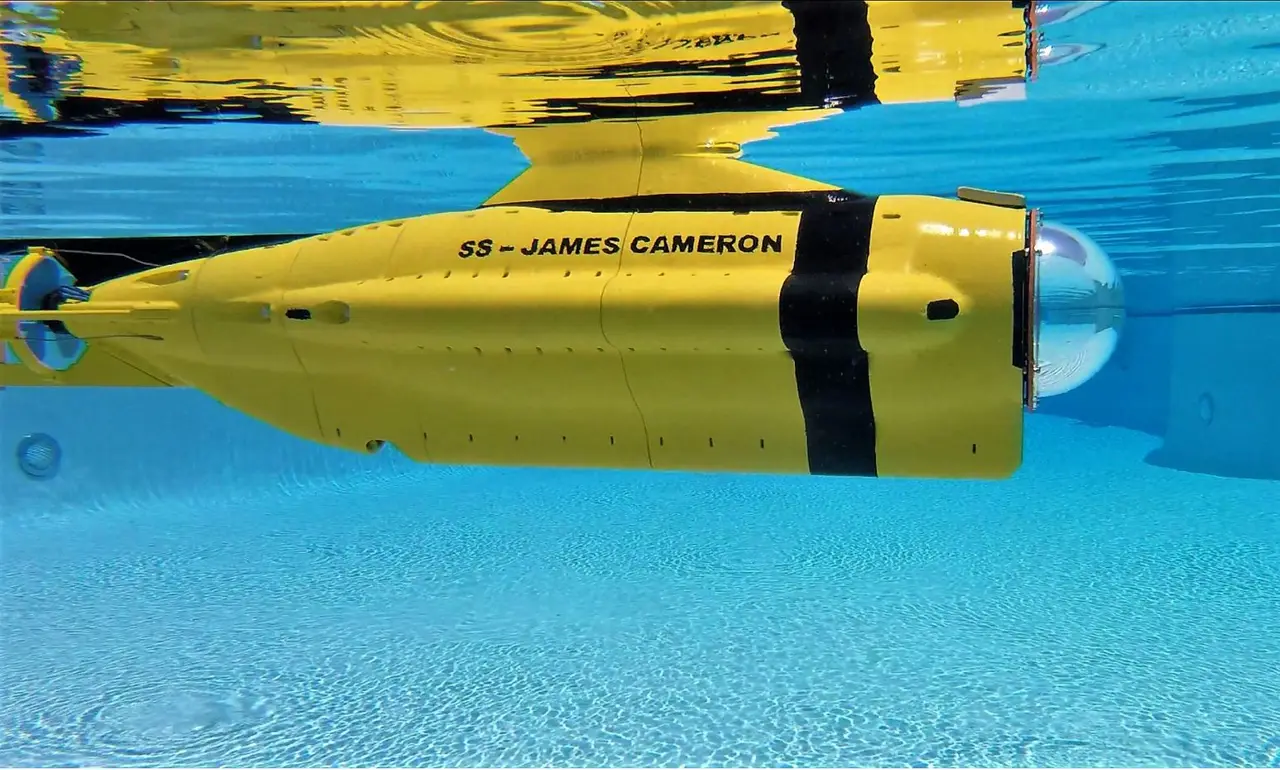

Radio Controlled Subnautica Cyclops Submarine HULL Rev_1

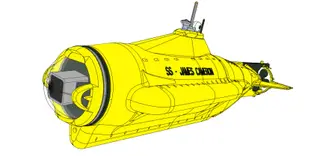

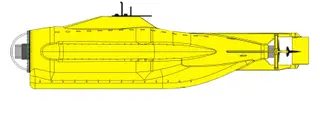

This is the HULL for the 3d Printable Subnautica Cyclops I designed and built! The Sub is approximately 654mm in length. The whole vehicle has to be printed in separate parts which you will want to minimize support material used to reduce print time. Total print time is approximately 100hrs with variability based on printer and infill. This model is each section of the wet hull and the necessary. You will need one of every STL part on the list The sub also will require a 3.5 inch water tight cylinder which I have plans for linked below: Files: LINK TBD Water Tight Cylinder Assembly: https://www.youtube.com/watch?v=qKDwGNWA61Y&lc=UgzMRD_zn0l84W66PWV4AaABAg Assembly of the submarine hull is outlined here: LINK TBD Most parts can be purchased on amazon. Additionally you will need a minimum of a 30 AMP drone ESC and a 2204 low KV motor. I used 2300kv but the lower the better. The tail is made to fit a 2200 size brushless drone motor. The sub Hull must be weighted in the keel with weights to properly sink the boat for diving. It takes about 1.9kg of lead or about 4lbs total lead weight to reach this. The structure becomes very heavy and needs reinforcement to withstand the weight. All parts need an epoxy coating in XTC-3d to withstand long term use in water and the strengthen them for the load of lead weight the sub carries. The epoxy coat also ensures the PLA has no issues while sitting in the sun and seals the hull against the ingress of water. THREE COATS ARE HIGHLY RECOMMENDED Segments of Hull are assembled using these melt in inserts. M4 socket head screws are used to assemble the segments. Inserts: https://www.amazon.com/gp/product/B0784VYCYY/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 Screw set: https://www.amazon.com/gp/product/B07HVTRNG9/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 Paint and primer can be added to sure up the seal and add flair to the sub too! PARTS! Dome: https://www.amazon.com/gp/product/B07DNV7BGQ/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1 Weights: https://www.amazon.com/gp/product/B079J4THNZ/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1 Remote Startup: https://www.amazon.com/gp/product/B01COTC7C8/ref=ppx_od_dt_b_asin_title_s00?ie=UTF8&psc=1 BEC: https://www.amazon.com/gp/product/B008ZNWOYY/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1 O-Rings: https://www.amazon.com/gp/product/B000FMUXIC/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1 Hull Tube: https://www.amazon.com/gp/product/B07B11QJGV/ref=ppx_yo_dt_b_asin_title_o09_s00?ie=UTF8&psc=1 Pump: https://www.amazon.com/gp/product/B01IUVHB8E/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1 Ballast Tanks: https://www.amazon.com/gp/product/B07PPFLKRD/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1 Glues and stuff: https://www.amazon.com/gp/product/B07CWRTX13/ref=ppx_yo_dt_b_asin_title_o09_s00?ie=UTF8&psc=1 https://www.amazon.com/gp/product/B0166FFFD4/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1 https://www.amazon.com/gp/product/B0166FFFS4/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 https://www.amazon.com/gp/product/B000DZFUPC/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1 XTC-3D: https://www.amazon.com/gp/product/B00PFXK4JY/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1 Bulkhead connectors: https://www.amazon.com/gp/product/B0006O8NX6/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Conformal Coat: https://www.amazon.com/gp/product/B0009H1AMG/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1
