Race Drone

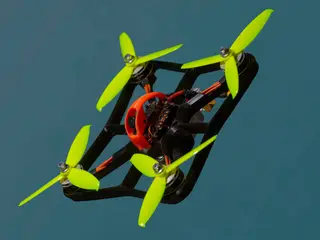

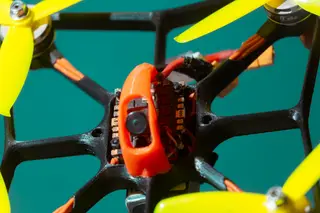

It features: a modular frame and canopy two version for 4in and 5in propellers aerodynamic and stiff frame weight of the 3d prints ~70g motor protection battery strap mounts on the bottom 16 x 16mm and 12 x 12mm motor mount m3 screws 10mm or 12mm are needed 20 x 20mm and 30.5 x 30.5mm mount for ESC and flight controller etc. cable ducts for motors and antennas and LEDs and etc. canopies for 14 x 14mm and 19 x 19mm fpv cameras

V 0.31 updated canopy with mount for 4mm diameter tubes for antennas

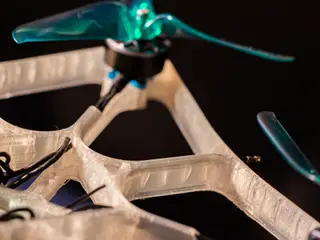

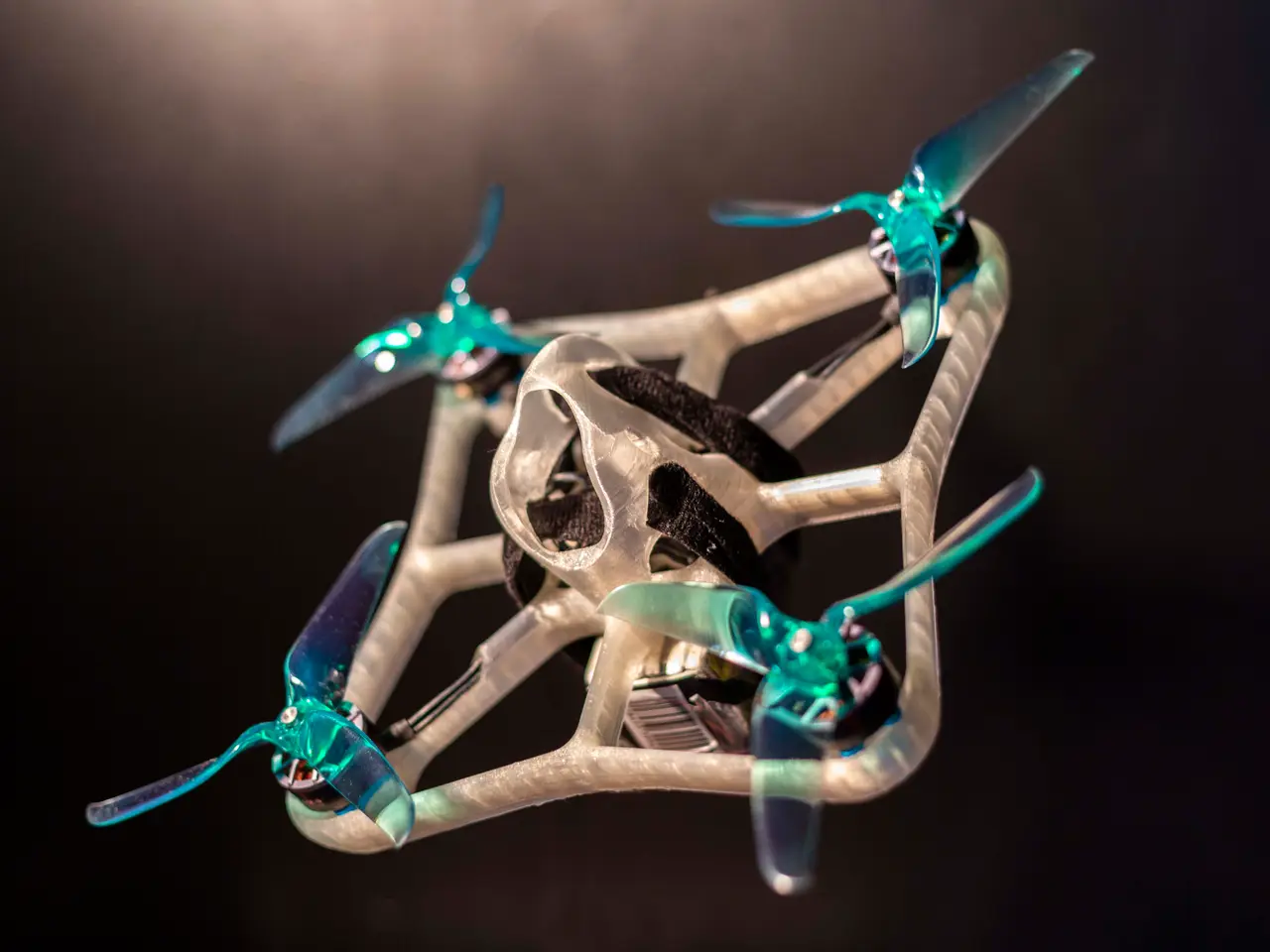

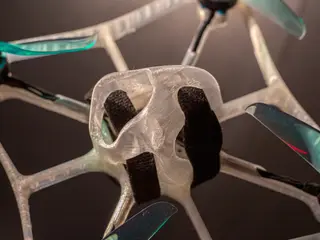

New version V 0.3 The new version is lighter, stronger and easier to assemble. 5in Frame 144mm (motor to motor) without supports 4in Frame 116mm (motor to motor) without supports Canopy 19mm supports recommended The canopy is now held by two velcro straps.

At the moment (V0.1) there are 5 3d files: Frame 144mm 5.5in without supports Frame 116mm 4.5in without supports Canopy 14mm supports recommended Canopy 19mm with SMA antenna mount without supports Canopy Mesh 19mm supports recommended The canopy is screwed on by m3 screws.

Print instructions: All files are designed to be printed on a 18 x 18cm print bed (prusa mini), also a bigger print bed is better. Because warping can be a problem, so enclosure is recommended. Also a skirt can help. The most strenght lies in the perimeters. I use 4 layers a the Top and Bottom and 2 perimeters. I recomend rectangular infill. The Drone can be printed in PLA, but it will only withstand a few crashes in warm weather. It is recommended to print it at least in PET(G) better is PC or PA.

A Freecad file is included for easy changes.
