R_E_R_F or RERF Calibration Matrix for Anycubic Photon Mono

This is a R_E_R_F test file for the Anycubic Photon Mono. All the ones I found out there took a while to run, so in the interest of saving time and resin, I created a R_E_R_F file that is heavily inspired by the ResinXP2-ValidationMatrix_200701, but was 100% created from scratch.

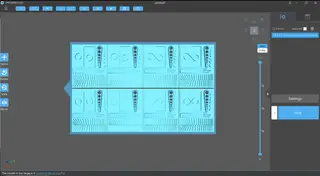

Simply slice the file in your slicer and name the file "R_E_R_F" (without the quotes). The end file should be named, with file type extension, "R_E_R_F.pwmo" (without the quotes.

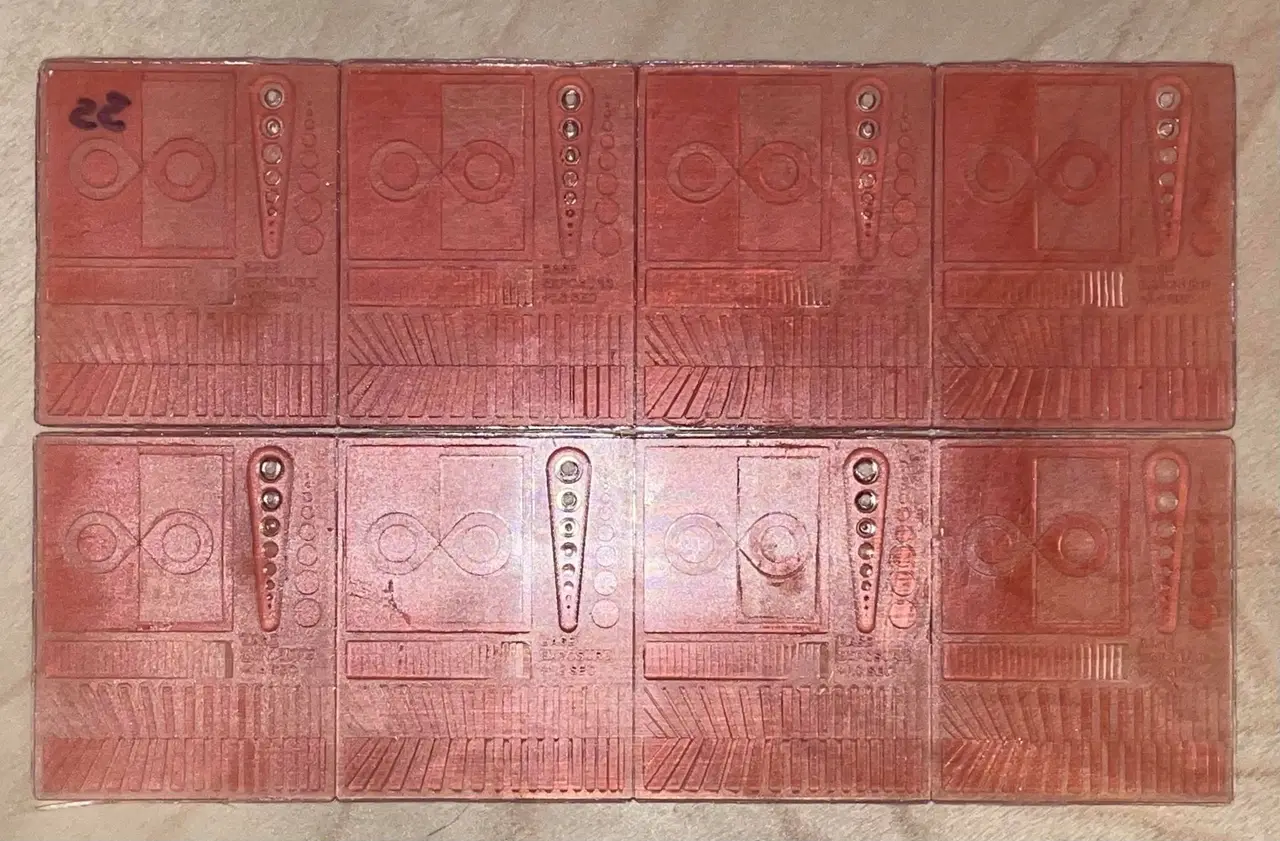

The top left file box will be the base exposure you put in the slicer. Then exposure time increments by +0.4 second top to bottom, left to right (in that order). Each tile has the additional exposure time written on the model but it is a little small and can be hard to read, I will edit this at a later date and release a revision.

The while print should be done printing in 10-14 minutes (depending on base exposure time) and takes very little resin.

When working with resin, please wear safety gloves, glasses, and ventilator. Please clean the print with 95% or higher alcohol and then let it completely dry. Then cure it with a 405nm UV light for roughly 1-2 minutes.
