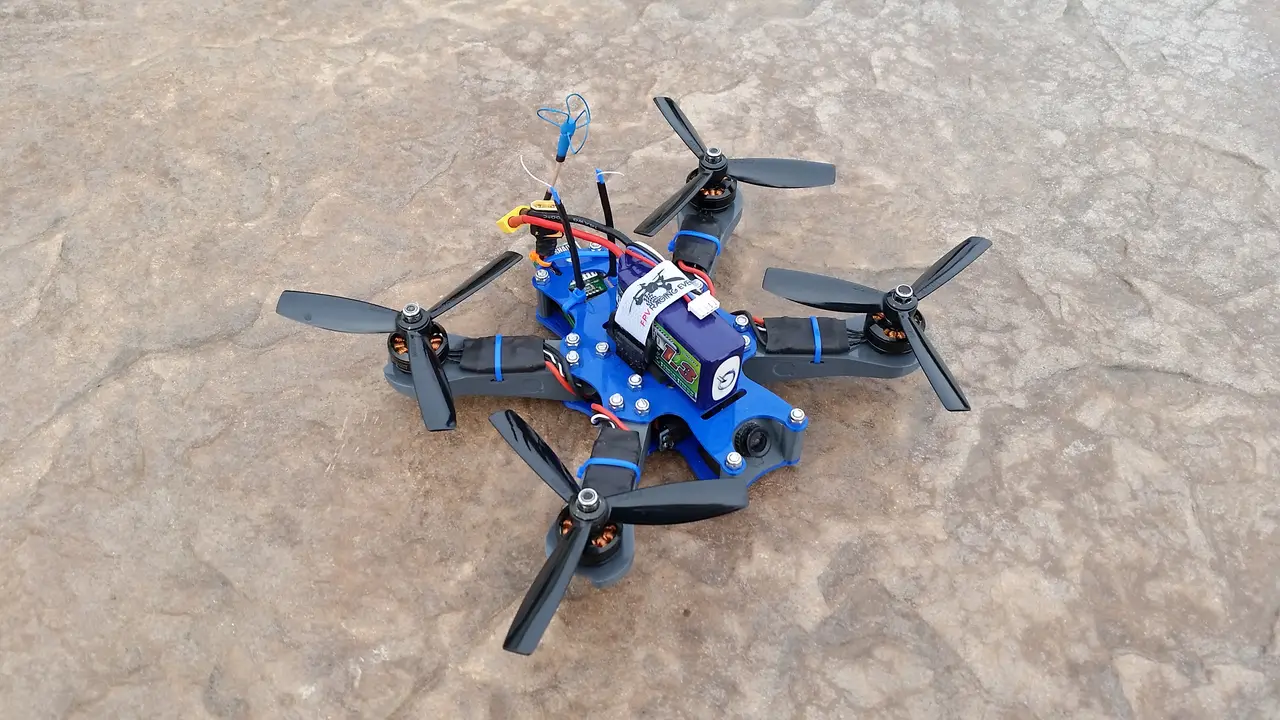

Q3D 220 FPV Racing Frame
por Matt Quest en MyMiniFactory
The Q3D 220 is an FPV Racing frame designed for the 5" prop class with 3D printing in mind.
Licencia
Solo uso personalMyMiniFactory - Credit - Remix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a Matt Quest.
Archivos (20)
- 155abaee12e31881d3f53f19d8322910beb98636.stl STL
- 1b34b3dfa97f6433b250916084d44abe586123db.stl STL
- 22Mm Arm 1.Stl STL
- 22Mm Standoff 10.Stl STL
- 30Mm Arm 4.Stl STL
- 30Mm Standoff 9.Stl STL
- 50d67fcdacc33029c991de7a43257af05a4d1d1a.stl STL
- 688e6fe52557eafa5eec3effe26bed9476b0c5de.stl STL
- 74bd827872d6adda8864462ffd28cb9f020e4c8a.stl STL
- 7ffac0206e295fd7c36a5cf15400d8452984d9a6.stl STL
- 9fbf4643f55b24ee14087194854f06bc4ba9c651.stl STL
- abaf8e966f6e3a72b230743836b3ce979a94685a.stl STL
- Bottomplate V1 6.Stl STL
- c4114de55a58929cb135bb15921b826d7ec5a697.stl STL
- Cam 22Mm 20Deg 8.Stl STL
- Cam 22Mm 35Deg 3.Stl STL
- Cam 30Mm 20Deg 7.Stl STL
- Cam 30Mm 35Deg 5.Stl STL
- e21e4227516f47f71b2eea2477780f82fbcb74b3.stl STL
- Topplate 2.Stl STL
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 827
- Publicado
Sobre este modelo
The Q3D 220 is an FPV Racing frame designed for the 5" prop class with 3D printing in mind.
Features include:
- X arm design with top mounting lipo capability provides excellent center of gravity.
- SMA and battery lead mounting holes.
- Access to vtx for easy swapping of channels.
- Zip-tie holes for easy mounting of esc's.
It can be built in a couple different configurations with a 22mm internal cavity or a 30mm internal cavity.
Hardware required to complete frame 22mm version: 16 x M3 x 30mm bolts 16 x M3 Lock Nuts
Hardware required to complete frame 30mm version: 16 x M3 x 40mm bolts 16 x M3 Lock Nuts
It can be printed with almost any material but ABS is highly recommend.
Flight video of first prototype and maiden flight: https://youtu.be/qmMbncKQCTI
Share pictures of your build on social media with the hashtag #Q3D220
I am releasing these files specifically for people interested in this hobby who want to build their first FPV racing drone. I know carbon fiber is a far superior material for racing but this is a fun build that can be put together very cheaply and will fly just as well. #GrowTheHobby
