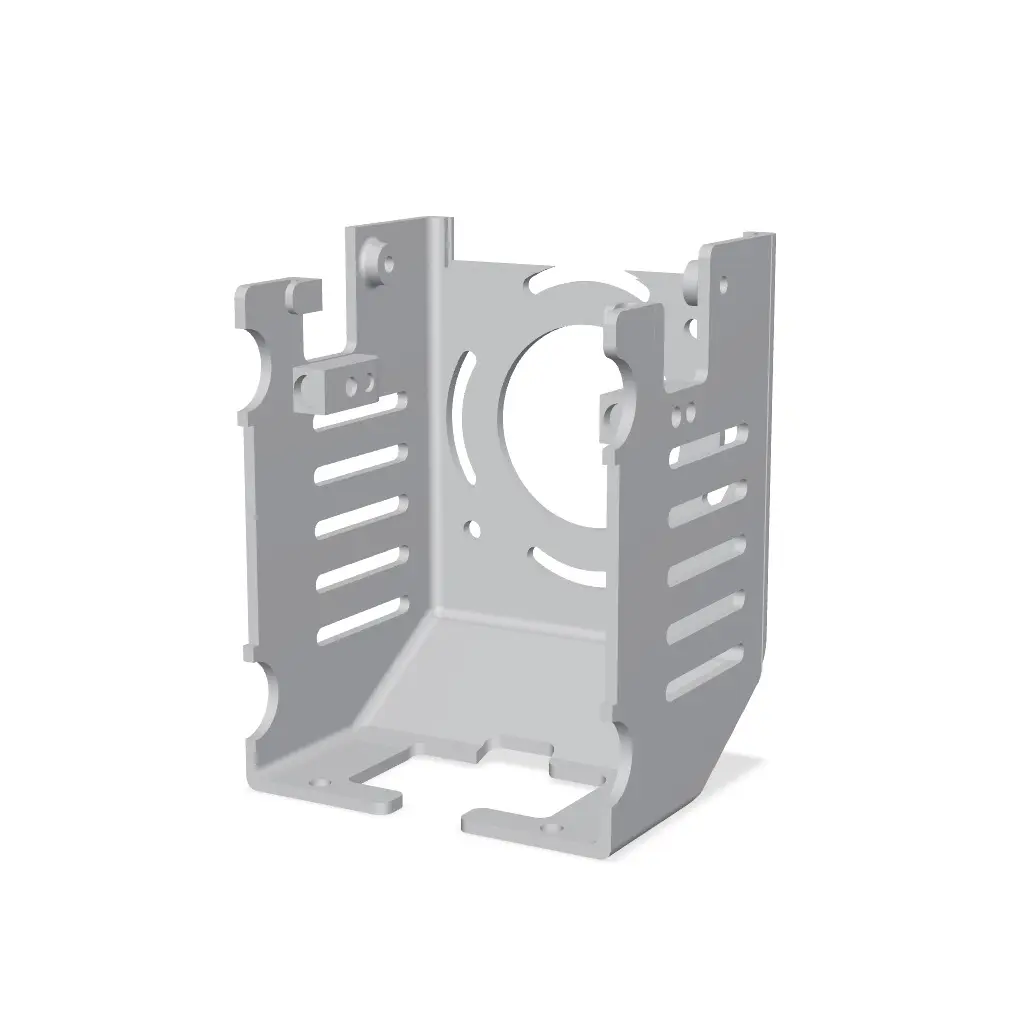

Q1-fan_cover_V1.stl
This is my take for the Qidi Q1 pro's fan cover.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Eu_citzen.
Archivos (2)
- Q1-fan_cover_V1.stl STL · 1,6 MB
- Q1-fan_cover.stp STP
- Categoría
- Para tu impresora
- Formatos
- STL, STP
- Descargas
- 0
- Publicado
Sobre este modelo

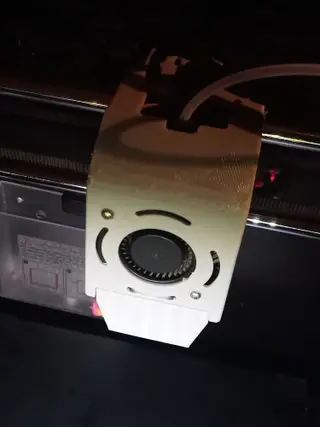

This is my take for the Qidi Q1 pro's fan cover. Note that its optimized for the fan covers that are also among my Q1 pro mods. E.g. they use M2 screws and threaded inserts instead of screwing into plastic.

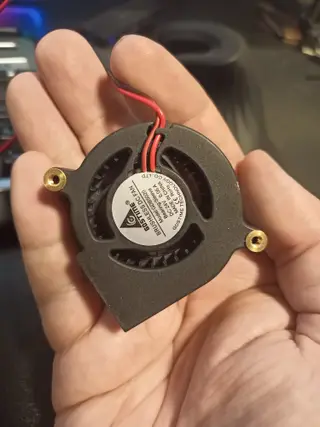

It has a few additional mods: - Top is cut out for a lever arm extruder mod coming in the near future - Magnet slots are made to fit 5 mm diameter magnets @ 2 mm thick - Has 2 holes to mount part cooling fan. (M3 bolt + nut)* - Or optionally put 2 threaded inserts into the fan.
Print settings: Use functional filament; e.g. ABS, PC. 3-4 walls, top and bottom layers Use tree supports 35% infill
V1: Release 2026-10-08
Descripción original del autor, publicada en Thangs.
