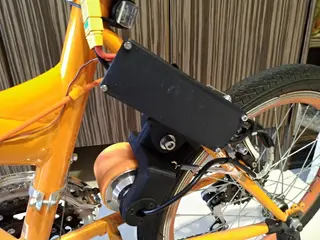

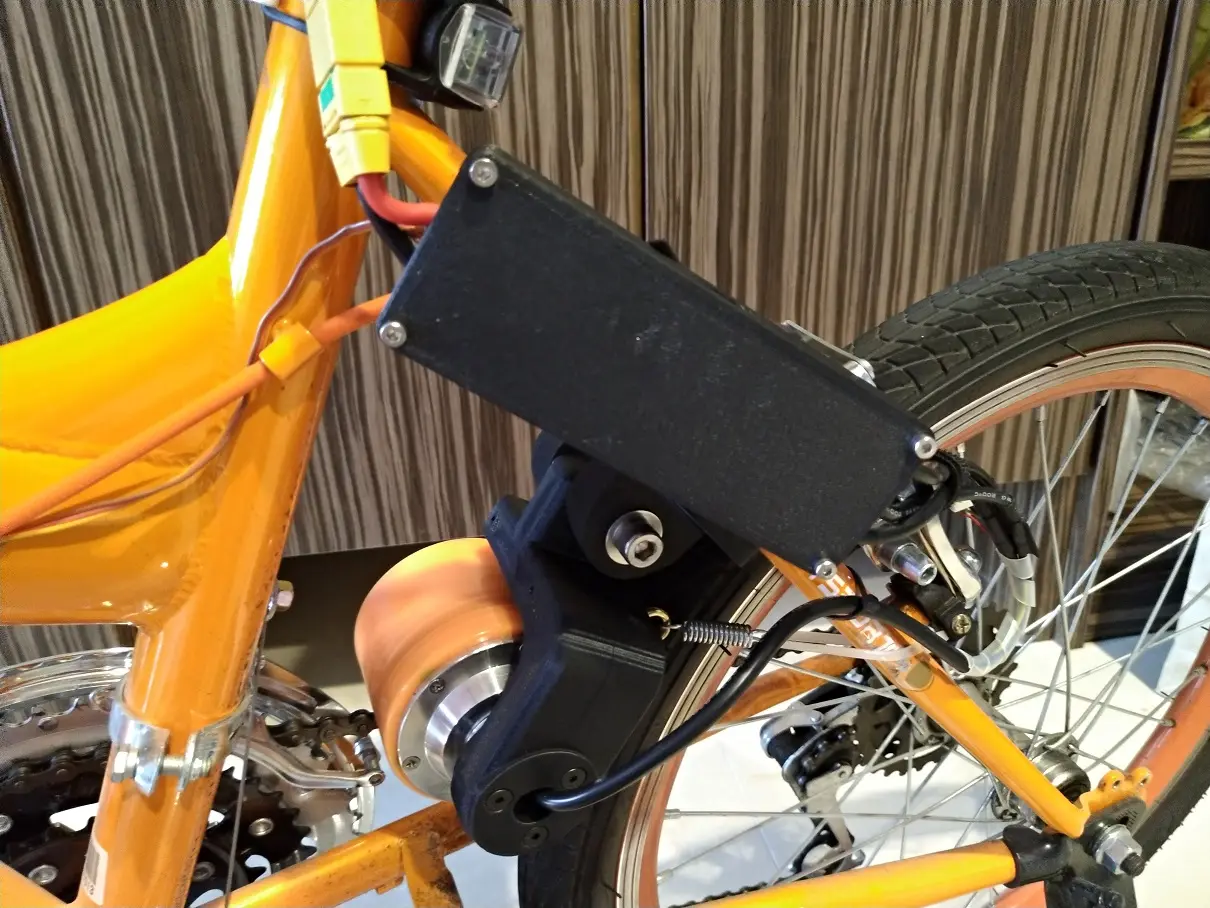

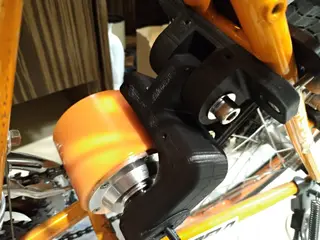

PU Wheel Friction Drive E-Bike

Slightly modified the original design(https://www.myminifactory.com/object/39781) to support PU wheel hub motors.

Todos los archivos (3) en un ZIP

Licencia

Solo uso personal

MyMiniFactory - Credit - Remix - Noncommercial

Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.

Al descargar aceptas respetar la licencia y dar crédito a Macaca.

Archivos (3)

Slightly modified the original design(https://www.myminifactory.com/object/39781) to support PU wheel hub motors.

Build tutorial: https://gum.co/LqmWJ

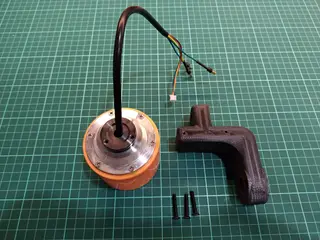

Motor specs: Wheel hub motor size: 75*83mm Voltage: 24V-36V KV: 110KV Top Speed: 18km/h above

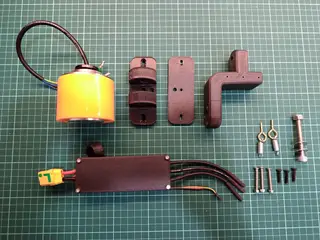

PART LIST (affiliate links are used)

Motor https://www.banggood.com/custlink/3vvGUlYejg

VESC https://www.banggood.com/custlink/GD3KMLY6lf

Throttle Grip https://www.banggood.com/custlink/m3v3UjR0gv

Arduino for Analog to PWM converting https://www.banggood.com/custlink/Kvvmkoh00h

Screws 1pcs M8 x 60mm bolt 3pcs M4 x 25mm bolts 3pcs M4 x 35mm bolts 3pcs M4 nyloc nuts

Battery SONY VTC6 18650 6S2P (22.2v 6000MAH)
