Prusa Tool Box - CORE ONE (+) - CORE ONE L - MK4S - MK4 - XL - MK3.9 - MK3.5 - MK3 - Mini+ - Mini
por 3DesignsCH en Printables
A variation of Prusa Tool Boxes - a remix of the Rugged Box of Whity
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a 3DesignsCH.
Archivos (59)
- Box Lid Core ONE.3mf 3MF · 259 KB
- Box Prusa XL.3mf 3MF · 610 KB
- Box Lid CoreONE L.stl STL · 1,5 MB
- Box Lid CoreONE +.stl STL · 1,2 MB
- Box Lid CoreOne.stl STL · 1,2 MB
- Box Lid Prusa XL.stl STL · 1,2 MB
- Box Lid Prusa MK4S.stl STL · 1,3 MB
- Box - Bottom 60mm height.stl STL · 462 KB
- Box - Bottom 50mm height.stl STL · 466 KB
- Box - Bottom 40mm height.stl STL · 457 KB
- Box - Latch.stl STL · 185 KB
- Box - Seal.stl STL · 24 KB
- Box Lid.stl STL · 1,2 MB
- ScrewDriverHolder.stl STL · 152 KB
- ScrewDriverHolderTorx.stl STL · 151 KB
- AllenKeyHolder Prusa XL.stl STL · 359 KB
- AllenKeyHolder Core ONE.stl STL · 348 KB
- AllenKeyHolder Prusa MK4S.stl STL · 357 KB
- PlierHolder.stl STL · 142 KB
- Box Nozzles.stl STL · 407 KB
- Box Storage.stl STL · 29 KB
- Prusa_Prusa MK4 Tools Box Lid.3mf 3MF · 317 KB
- Bambu_Prusa MK4 Tool Box Lid.3mf 3MF · 322 KB
- Prusa XL Tools Lid_105x165.3mf 3MF · 316 KB
- Prusa CORE ONE Tools_Lid.stl STL · 1,5 MB
- Prusa XL Tools Box_Lid.stl STL · 1,5 MB
- Prusa MK4S Tools_Lid.stl STL · 1,6 MB
- Prusa MK4 Tools_Lid.stl STL · 1,5 MB
- Prusa MK3.9 Tools_Lid.stl STL · 1,8 MB
- Prusa MK3.5 Tools_Lid.stl STL · 1,8 MB
- Prusa MK3S Tools_Lid.stl STL · 1,7 MB
- Prusa MINI+ Tools_Lid.stl STL · 1,5 MB
- Prusa MINI Tools_Lid.stl STL · 1,5 MB
- Prusa Tools_Box.stl STL · 448 KB
- Prusa Tools_Nozzle Box Corner.stl STL · 177 KB
- Prusa Tools_Nozzle Box Mid.stl STL · 169 KB
- Prusa Tools_Box Big.stl STL · 33 KB
- Box Latch.stl STL · 371 KB
- Box Seal.stl STL · 25 KB
- Prusa MK4 Lid_105x165.3mf 3MF · 207 KB
- Printables Lid_105x165.3mf 3MF · 257 KB
- Prusa XL Lid_105x165.3mf 3MF · 208 KB
- Prusa Research Lid_105x165.3mf 3MF · 346 KB
- Printables Lid_105x165.stl STL · 1,2 MB
- Prusa MK4 Lid_105x165.stl STL · 958 KB
- Prusa XL Lid_105_165.stl STL · 962 KB
- Prusa MINI Lid_105_165.stl STL · 968 KB
- Prusa MK3S Lid 105_165.stl STL · 1,1 MB
- Prusa Research Lid_105x165.stl STL · 1,6 MB
- Box_105x165.stl STL · 434 KB
- Box Latch.stl STL · 371 KB
- Box Seal.stl STL · 25 KB
- Prusa CORE ONE Tools RuggedBox.f3d F3D · 4,3 MB
- Prusa MK4S Tools RuggedBox.f3d F3D · 4,1 MB
- Prusa MK4 Tools RuggedBox.f3d F3D · 4,0 MB
- Prusa XL Tools RuggedBox.f3d F3D · 3,9 MB
- Prusa Research Logo.f3d F3D · 3,6 MB
- Printables Logo.f3d F3D · 2,8 MB
- Prusa MK4 Logo.f3d F3D · 2,8 MB
- Categoría
- Para tu impresora
- Formatos
- 3MF, STL, F3D
- Descargas (todas las plataformas)
- 22,552
- Publicado
También en
Sobre este modelo

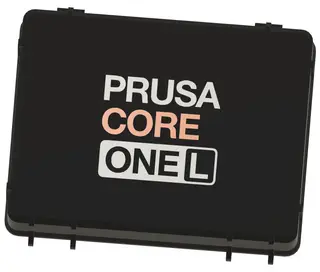

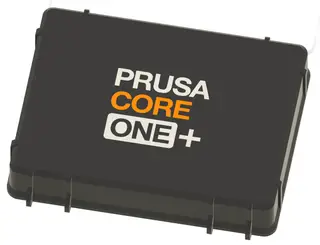

V2 for Prusa CORE ONE L, CORE ONE +, XL and MK4S now available!

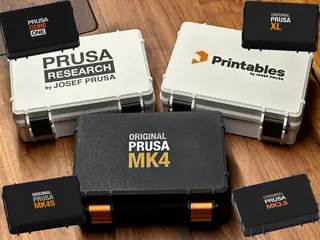

This is a remix of the Rugged Box from Whity with six different Prusa versions
Changelog for V2 - available for Core ONE, Prusa XL and MK4S - Updated size of the box
- Updated all tool holders - spring loaded now and replaceable if worn out
- Increased from two to three layers for for the logo to prevent color bleeding
- Added holder for the Torx screwdriver
- Holder for Allen Keys can be taken out of the box as a set
- Easy multicolor print without MMU - print profile for Core ONE included - manual filament swap. Acknowledge the wrong Filament notification with OK when the print starts. - Swap order: black, white, orange, black, white, black, orange, black
- Cut the tips of the unloaded filament if it looks ugly

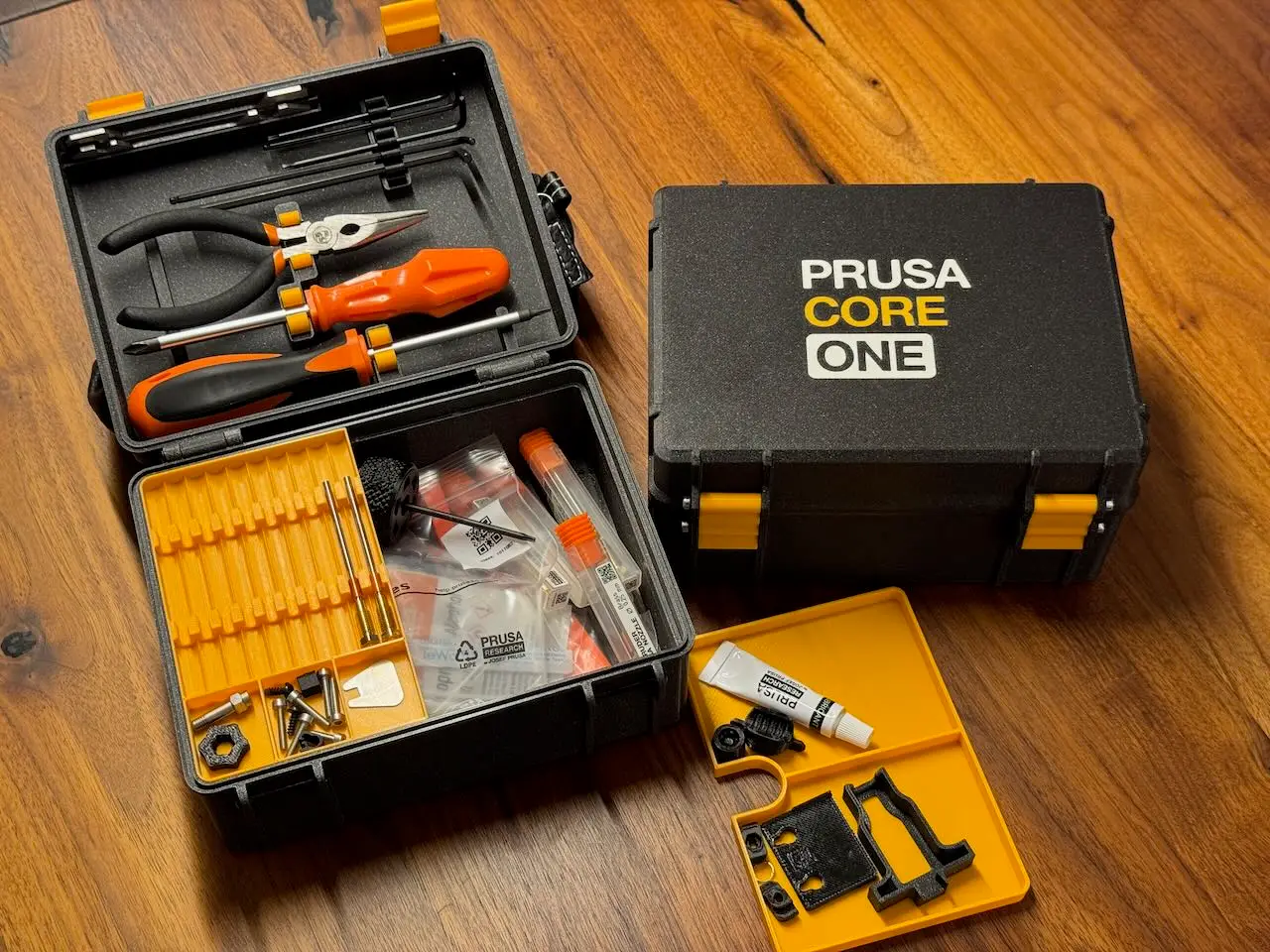

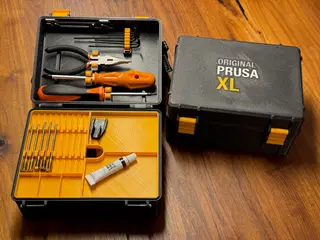

Prusa Logo Version & Tools for: Tools Version - all delivered tools and spare parts fit in it, including six Nextruder Nozzles (based on MK4 delivery) - Prusa CORE ONE
- Prusa CORE ONE+
- Prusa CORE ONE L
- Prusa XL
- Prusa MK4S
- Prusa MK4
- Prusa MK3.9
- Prusa MK3.5
- Prusa MK3S
- Prusa MINI+
- Prusa MINI
Prusa Logo only version for: - Prusa MK4
- Prusa XL
- Prusa MINI
- Prusa MK3S
- Prusa Research
- Printables
You can mix the Boxes and the Lids of the different versions. Use a logo-only version and use the tools box version. Or use the tools lid version with the normal box. You can print this with a single extruder with manual filament changes, or MMU (or Bambu AMS). I included a Prusa Slicer Project file for the MK4 with InputShaper with manual filament change. You can easily adapt this to any other printer. Colour change order for manual swaps of the Prusa_Prusa MK4 Tools Box Lid.3mf: 1. Background first (Black) 2. Prusa (White) 3. Original (grey) 4. MK4(S) (Orange).
Then it repeats for the second layer in the same order, but you don't need to do orange since it will do that first on the second layer.
5. Background (Black) 6. Prusa (White) 7. Original (Grey) 8. Rest of the lid (Black) You can also check the colour order in the slicer preview. My STLs/3MF box measures: - Box size: 105x165mm
- Screws: 6x M3x30mm
Descripción original del autor, publicada en Printables.
