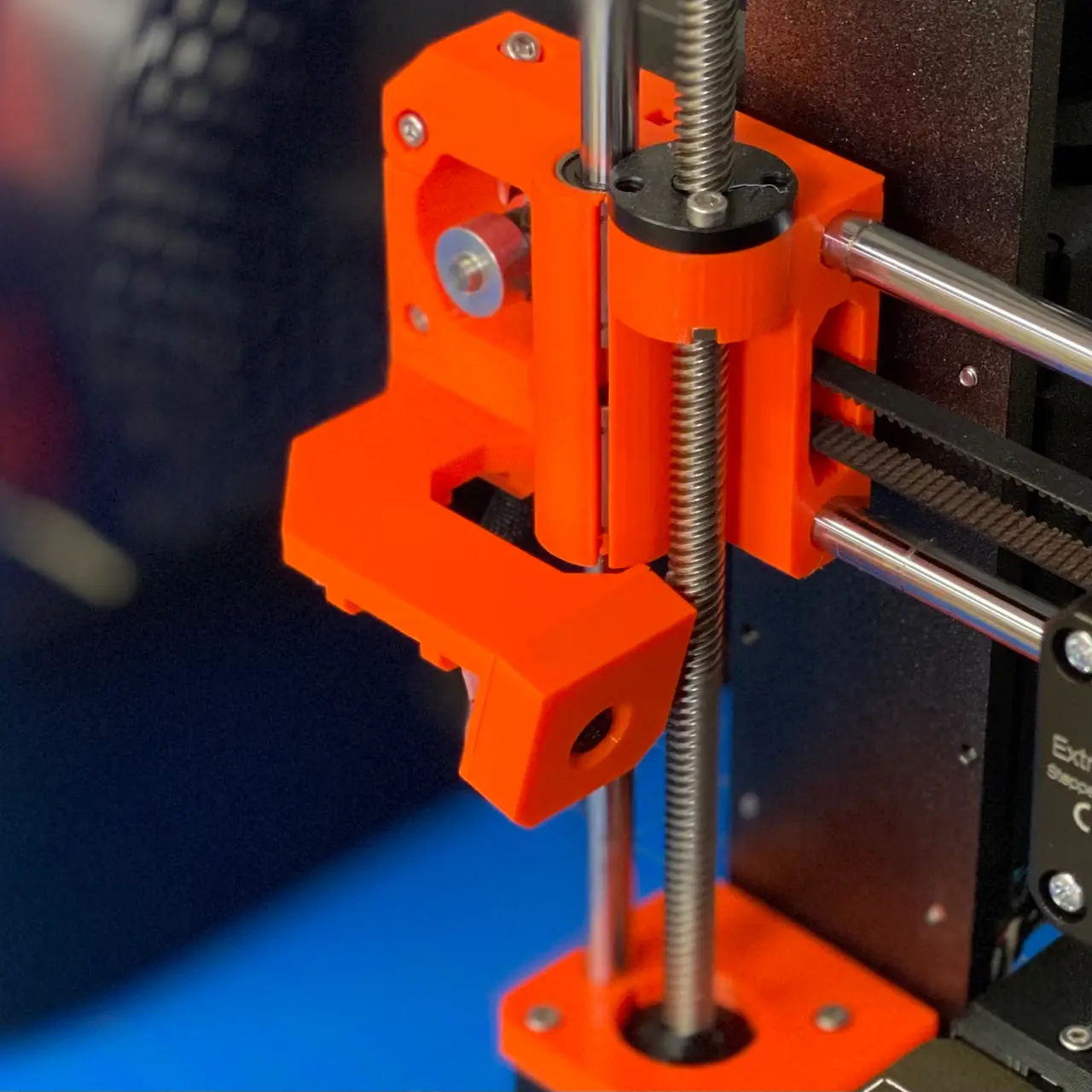

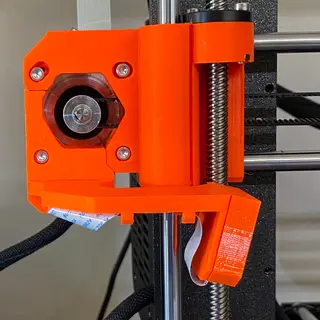

Prusa MK3S (MK3S+) Pi Camera V2.1 Mount With Optional X Axis Cable Strain Relief

Pi Camera V2.1 Mount With Optional X Axis Cable Strain Relief for the Prusa MK3S & MK3S+ Printers.

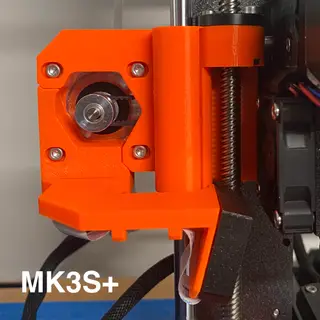

Note: added mount for MK3S+ (MK3SPlus_X-Axis_Bracket_Pi_Camera_Mount v1.stl). This is the only part that differs from the original MK3S.

After finishing my design for the Prusa Mini Pi camera mount I wanted to have the same features on my MK3S. I was always bumping my camera mount knocking in out of position and would not know until I was viewing remote. This became frustrating so I wanted something that has a fixed point of view, is low profile so it will stay out of my way, and was in keeping with the design of the printer.

The X axis strain relief was added in for good measure however there is an option to print without.

Features:

- Compact

- Simple no moving parts

- Fixed Angle

- Cable Management

- Designed to blend with the design of the printer

- Optional X Axis Cable Strain Relief

Required :

1 - Wire Tie 165x2.5 mm

1 - M3 x 18 Bolt

(Both Found in MK3S Spare Parts)

Print instructions No supports needed.

Note:

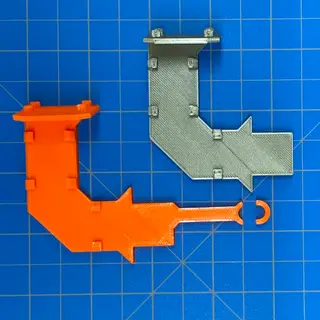

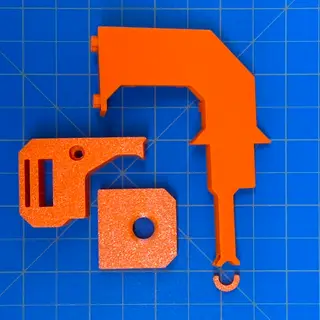

Two versions

- With X Axis Cable Strain Relief

- Without X Axis Cable Strain Relief (code found under User Print Files
