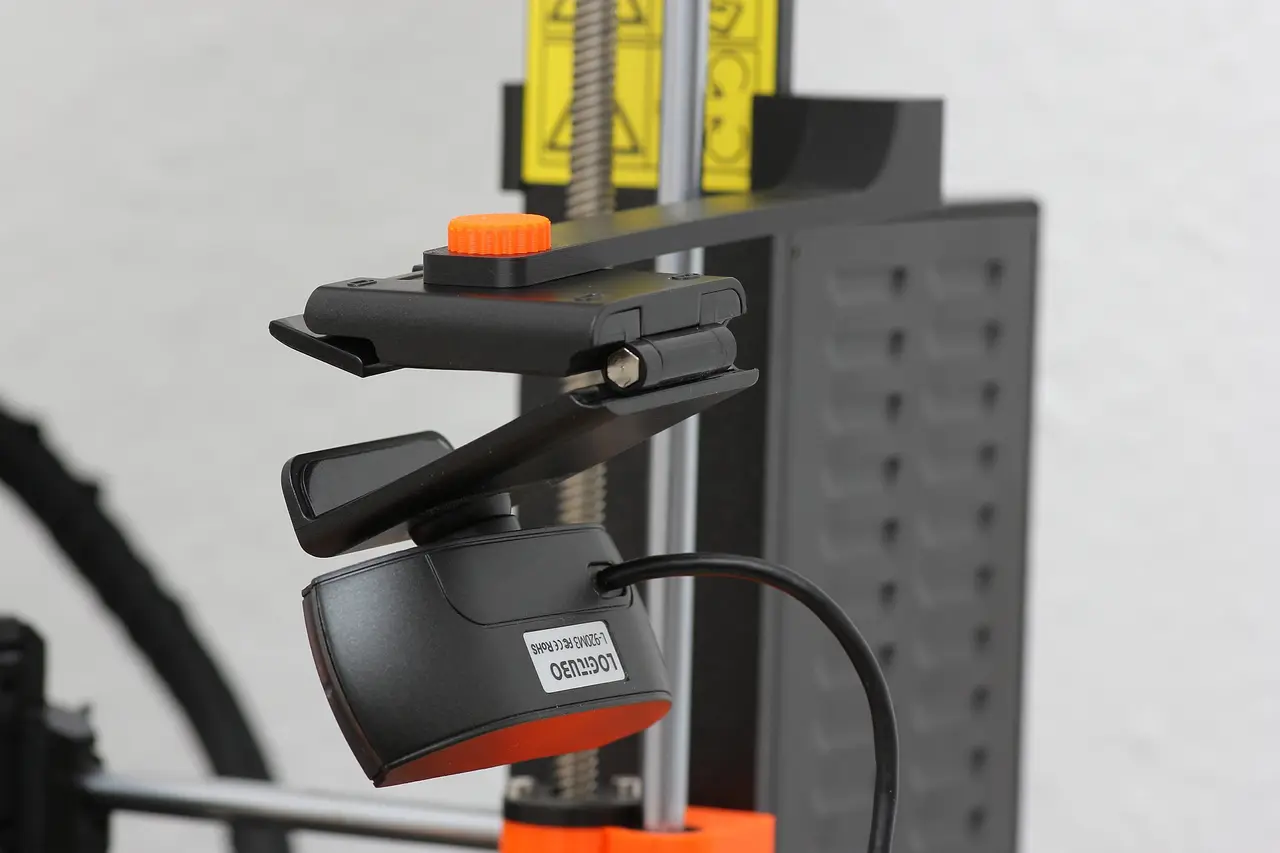

Prusa i3 MK3 / MK3S Camera Mount
por k-eye en Printables
This is a camera mount for the Prusa i3 MK3 and MK3S. It will hold your camera on the body of your printer.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a k-eye.
Archivos (4)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 1,412
- Publicado
Sobre este modelo

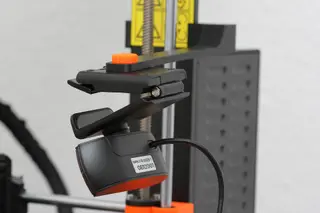

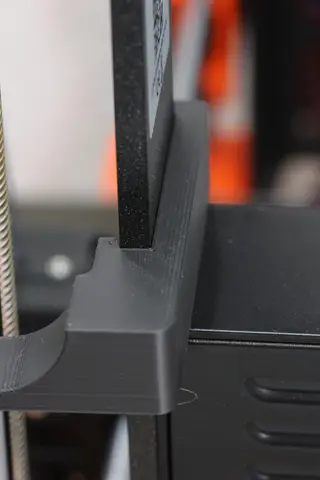

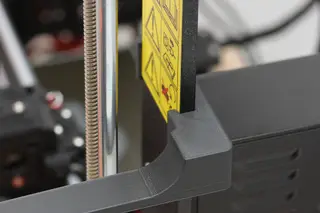

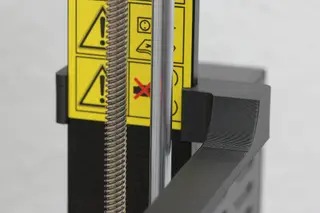

This is a camera mount for the Prusa i3 MK3 and MK3S.
It will hold your camera on the body of your printer.

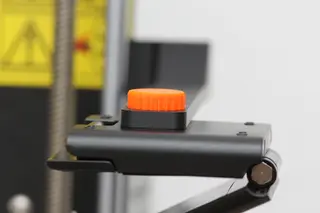

I add also a screw, to attach your camera with standard-thread on the mount.
IMPORTANT:
If you use the screw, be sure to print it with 100% infill and don't tighten it to strong - otherwise it may break and you'll have problems to get it out of your camera...
Works fine with standard Logitech "Printer Cam" :) ...and other similar and lightweight cams.
Print instructions Category: 3D Printer Accessories Print Settings
Printer Brand: Prusa
Printer: I3 MK3S
Rafts: No
Supports: No
Resolution: 0.2
Infill: 25%
Filament: extrudr Greentec black
Notes:
25% Infill
0.2mm layer for the mount
100% Infill
0.15mm layer for the screw (0.2mm will do it as well)
Descripción original del autor, publicada en Printables.
