Prusa i3 Mk2S Camera Mount (Using standard tripod mount)
por Martin en MyMiniFactory
Webcam mount to monitor prints remotely whilst away from the printer. I've designed this mount to work with any standard tripod screw although the screw will need to be long enough to go through the 5mm body of the print prior to to screwing to your camera. I've used a logitech C615 webcam which has
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalMyMiniFactory - Credit - Remix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a Martin.
Archivos (2)
- Prusa I3 Web Cam Mount V5.Stl STL
- Tripod Screw V4.Stl STL
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 233
- Publicado
Sobre este modelo

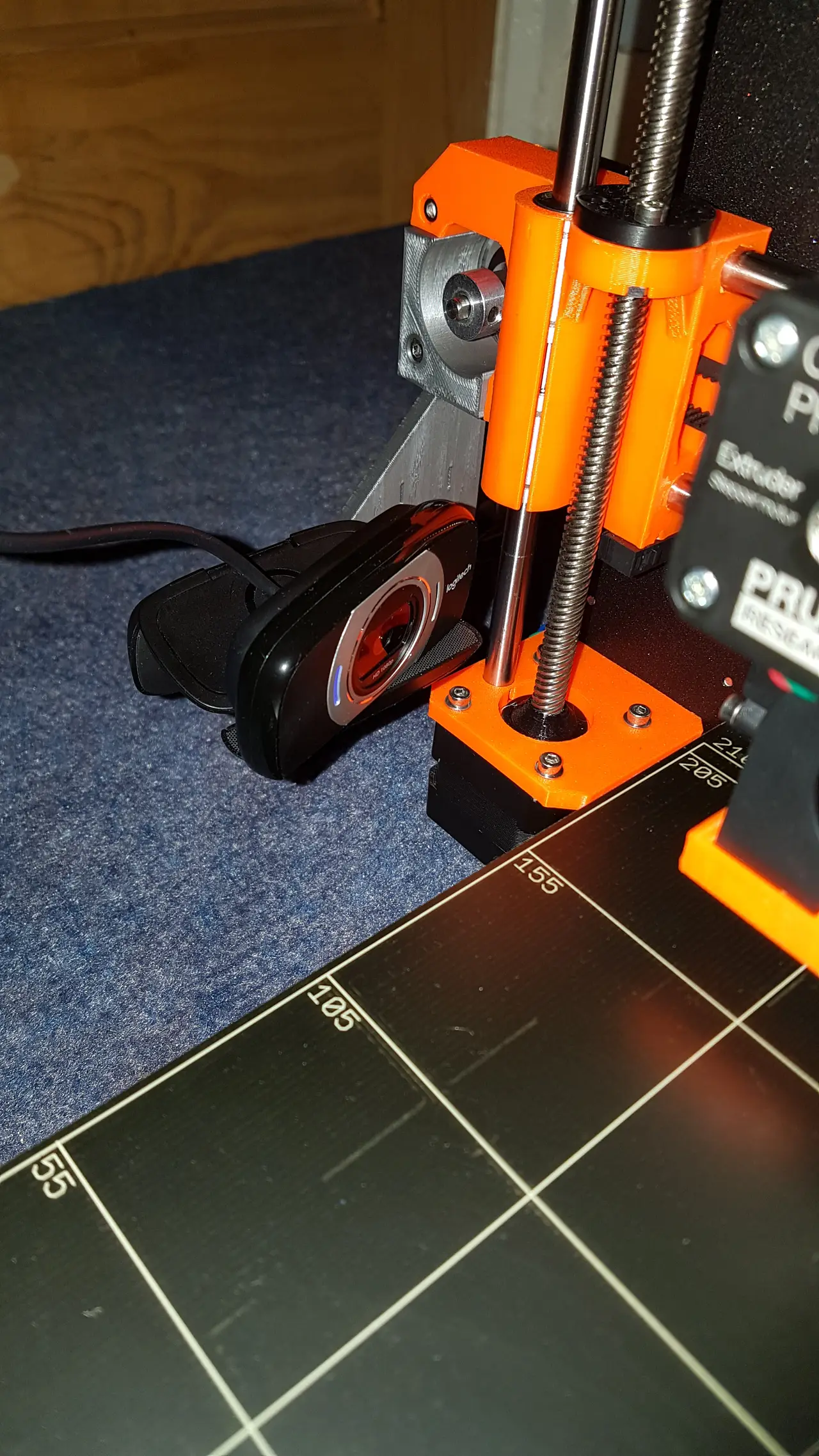

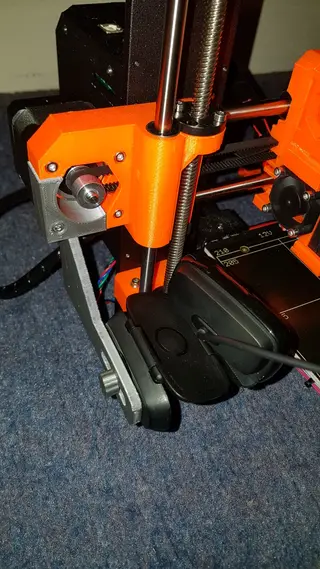

Webcam mount to monitor prints remotely whilst away from the printer. I've designed this mount to work with any standard tripod screw although the screw will need to be long enough to go through the 5mm body of the print prior to to screwing to your camera. I've used a logitech C615 webcam which has tilt, up/down adjustment so you can get the required angle.

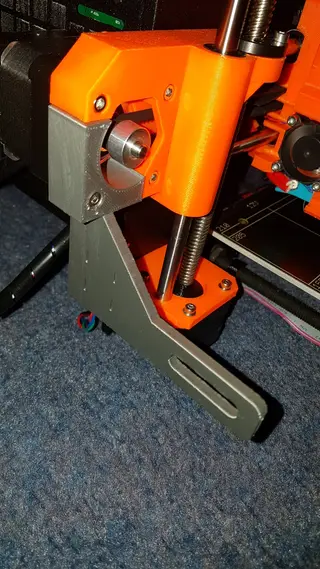

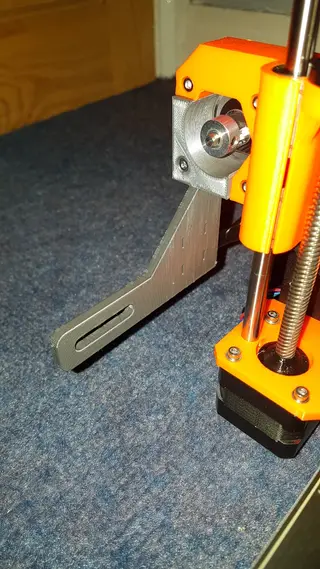

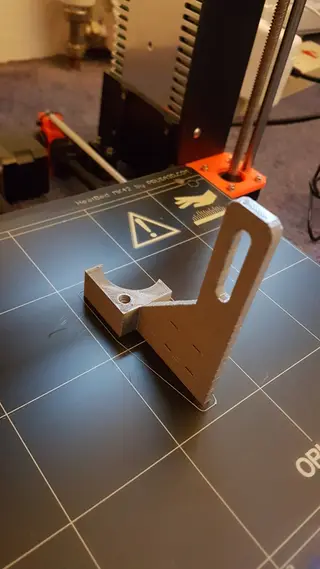

There are 4 slots on the bracket which can be used to feed a cable tie or two through to cable manage any excess wire on your camera. My printed versions i've photoed currently use a slot that is too small but the stl file has an increased slot.
I've included a STL for the tri-pod screw which i am currently using on my build but a metal screw may be more suitable.
Descripción original del autor, publicada en MyMiniFactory.
