Prusa Face Shield - Stack ver.

1h 20min per pcs

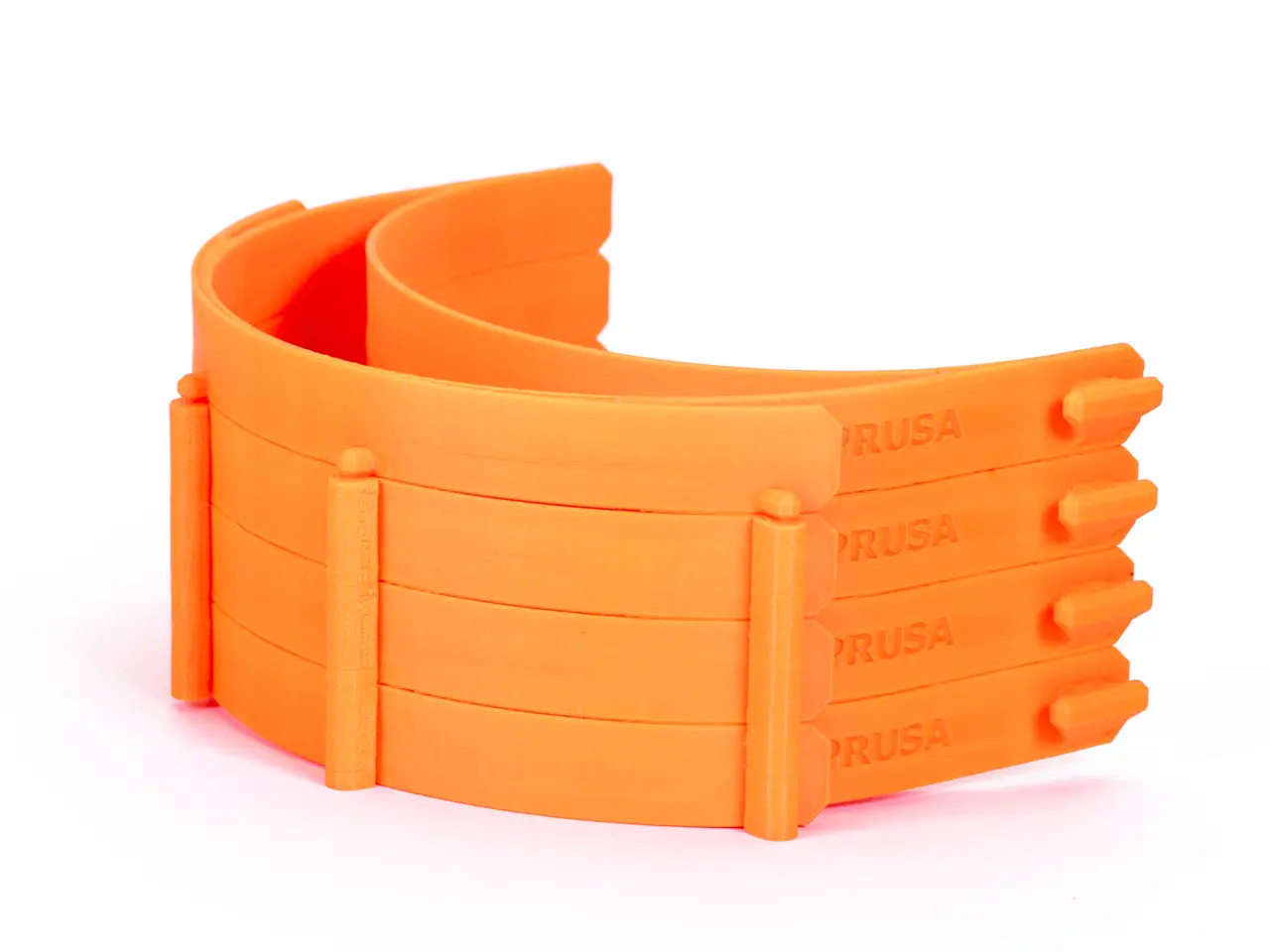

Stacking versions of Prusa Protective Face Shield - RC3

A prototype face shield that we developed. In three days, we went through dozens of prototypes and two verifications with the Czech Ministry of Health.

Provided G-codes are only for Original Prusa i3 MK3/S printers. Do not run the G-codes on other printers. Risk of damage.

We provided two options, including reinforcement parts:

- 4 pcs on the print bed (2 stacks, each with 2 headbands) - 8 pcs on the print bed (2 stacks, each with 4 headbands)

Version RC3.2 - 1. 4. 2020

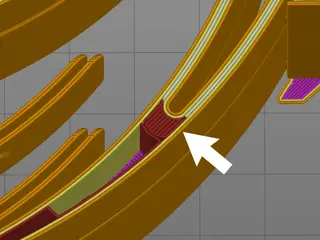

We uploaded new 3MF files and G-codes that have increased infill in the spot, where the visor goes away from the headband. The STL file remains unchanged.

</br>

Version RC3.1 changelog

Changes from RC3

- Fixed missing supports under two pins in the second headband

</ul>

</br>

The printer will be running at increased speeds. Expect louder operation and make sure your printer is in good shape before running this G-code. Check the Maintenance guide.

Print instructions Supports are included in the model.

Print with at least 2 perimeters, and 5% infill. The model is optimized for a layer height of 0.25mm.

Print it from PETG, headbands from other material can be brittle with these print settings.
