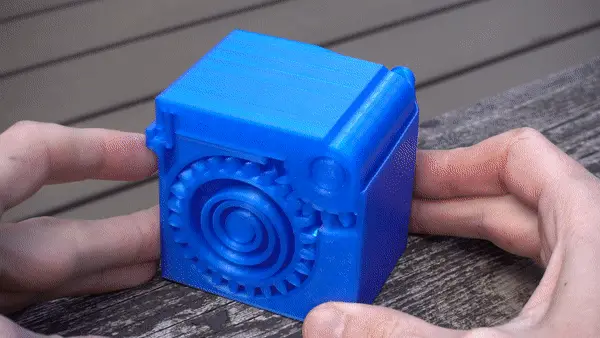

PRINT-IN-PLACE SPRING LOADED BOX
This is my Print in place spring loaded box design! No supports, no assembly, just print and use!
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a SunShine.
Archivos (2)
- PiP-Spring-loaded Box.stl STL
- Test_piece.stl STL
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 84,500
- Publicado
Sobre este modelo

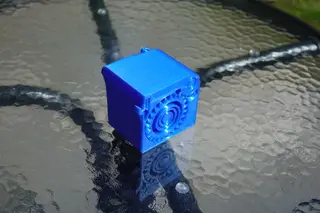

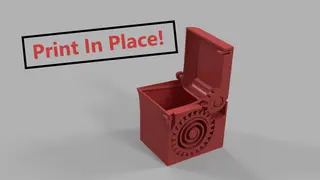

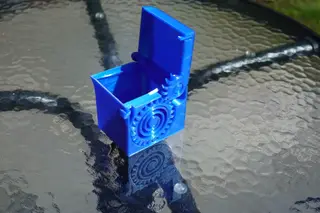

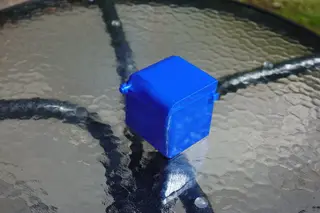

This is my Print in place spring loaded box design! No supports, no assembly, just print and use!
See it in action here: https://youtu.be/IrT1DaSBeQ4
See it in action here: https://youtu.be/IrT1DaSBeQ4
See it in action here: https://youtu.be/IrT1DaSBeQ4
All clearances are 0.3mm or greater, so most household 3d-printers should have no problems printing it. however, if you suspect you might need a little tuning, I did include a test piece to tune your printer!
I created an Instructables about this project going more into detail about the design choices and tricks that I used to make it work, you can find that here: https://www.instructables.com/id/Print-in-Place-Spring-Loaded-Box/
Important:
Use 0.2mm layer height or finer! (this is due to the overhang being designed for it)
The print should be positioned on its side as shown in the video during printing. (gears down)
Please leave your questions and comments in the comment field, and I’ll do my best to answer them.
Every like is appreciated! 😊
Descripción original del autor, publicada en Cults3D.
