Print-in-Place Functional Hinge - 5 Knuckles
por Miloš Švéda en Thingiverse
A fully functional print-in-place hinge with an integrated pin. The hinge is printed as a single piece - no assembly, separate pin, screws for the hinge mechanism, or supports are required. After printing, simply free the moving joints and the hinge is ready to use. The design uses five...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Miloš Švéda.
Archivos (1)
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 456
- Publicado
Sobre este modelo

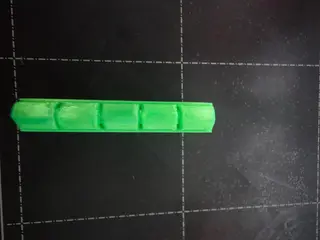

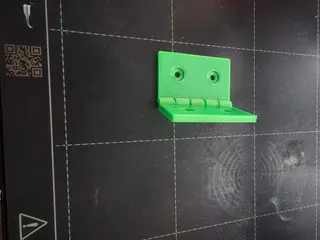

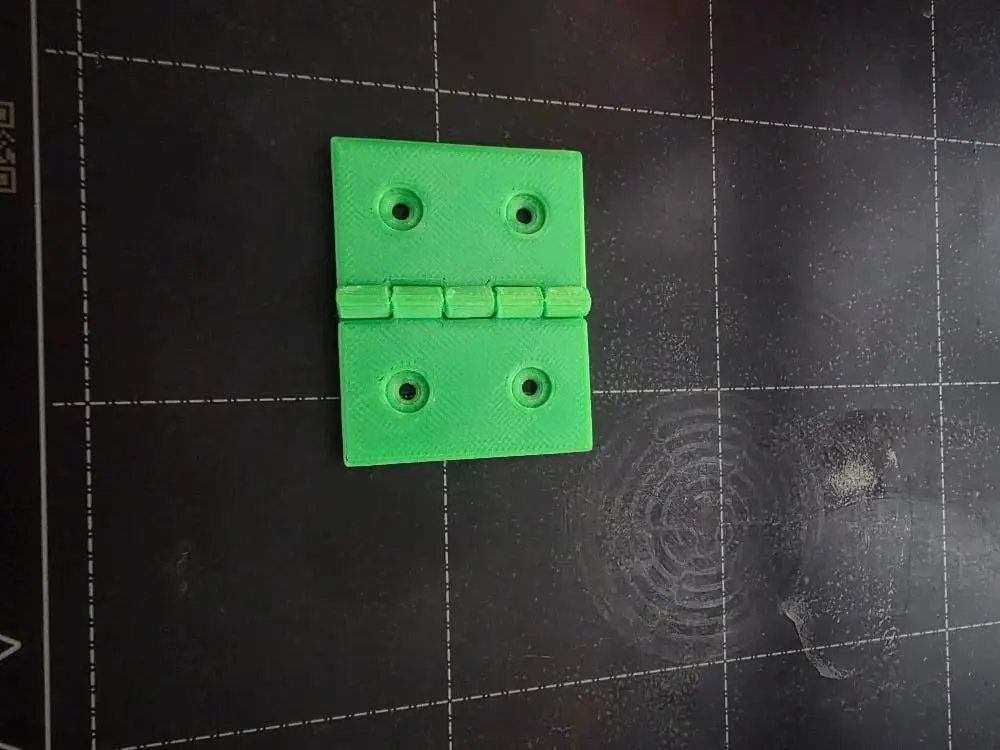

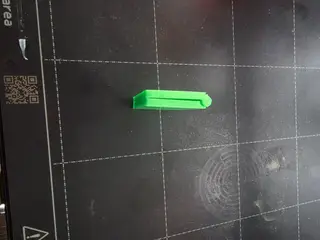

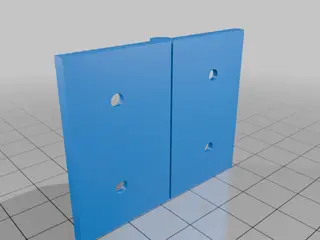

A fully functional print-in-place hinge with an integrated pin. The hinge is printed as a single piece - no assembly, separate pin, screws for the hinge mechanism, or supports are required. After printing, simply free the moving joints and the hinge is ready to use. The design uses five interlocking knuckles with cleaŕance optimized for FDM printing. Four countersunk mounting holes allow the hinge to be easily attached to a project. Designed and tested as a practical functional part and also suitable as a print-in-place hinge testet.
Descripción original del autor, publicada en Thingiverse.
