Print-in-place Clothes Hanger, foldable

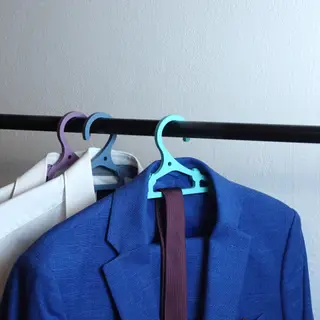

A print-in-place foldable clothes hanger. It can be printed on a standard-sized fdm printer (220 x 200 mm). It folds into a small square – perfect for travel. It comes with a tie bar that also serves at reinforcement. Two indentations allow for the hanging of spaghetti tops. Pants can be placed on the lower bar. It can fit and support a full suit.

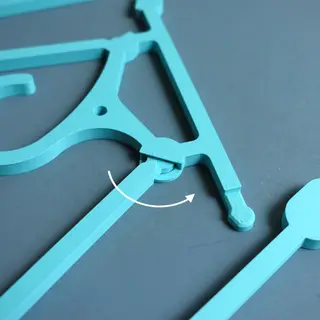

Versions included - Clothes_hanger: the default version - Clothes_hanger_more_clearance: a version with double the clearance at the big hinge. 0.4 mm on both sides and 0.8 mm on top

Disclaimer: Be aware that the strength of the holder will depend greatly on your material choice, print settings and print quality. I printed it in the default bambulap p1p profile. It holds a full suit well. This is a advanced project. If you are new to 3d printing, please know that this design incorporates multiple details that require a well set up machine.

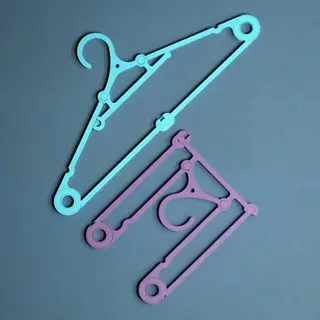

Size assembled: 400 x 180 x 7 mm Size folded: 162 x 215 x 7 mm

Print settings Required build volume: 220 x 220 x 10 mm Material usage per complete clothes hanger: 50g

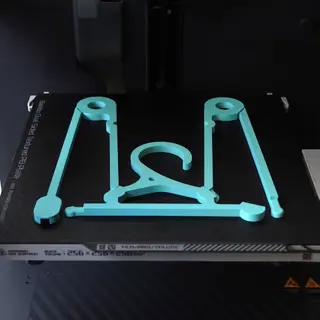

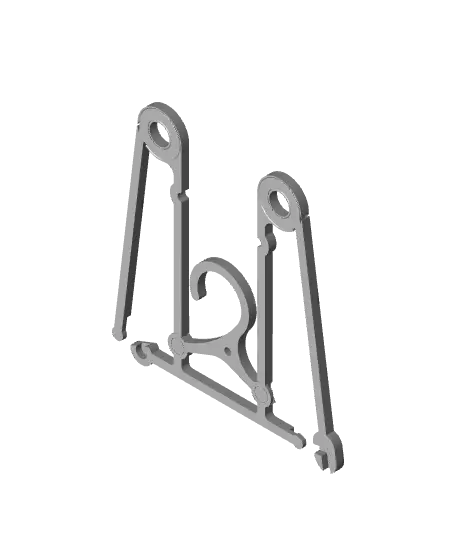

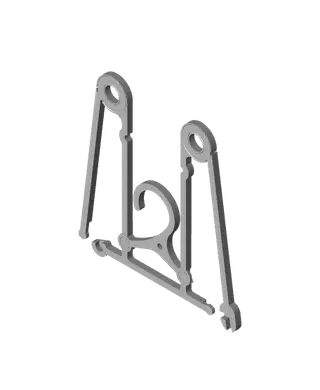

Material: PLA Print direction: stl is rotated correctly, check images

Make sure that your bridging relevant settings are calibrated well for this design. Those include fan speed, print speed, and print temperature among others. There are many guides for good bridging on Youtube. My personal experience is that the best result is achieved with a quite unspent nozzle.

Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Outer walls: 3 Infill: 15% minimum Build plate adhesion type: none
