Pool Filter Cartridge Cleaner | Gardena Pressure Nozzle

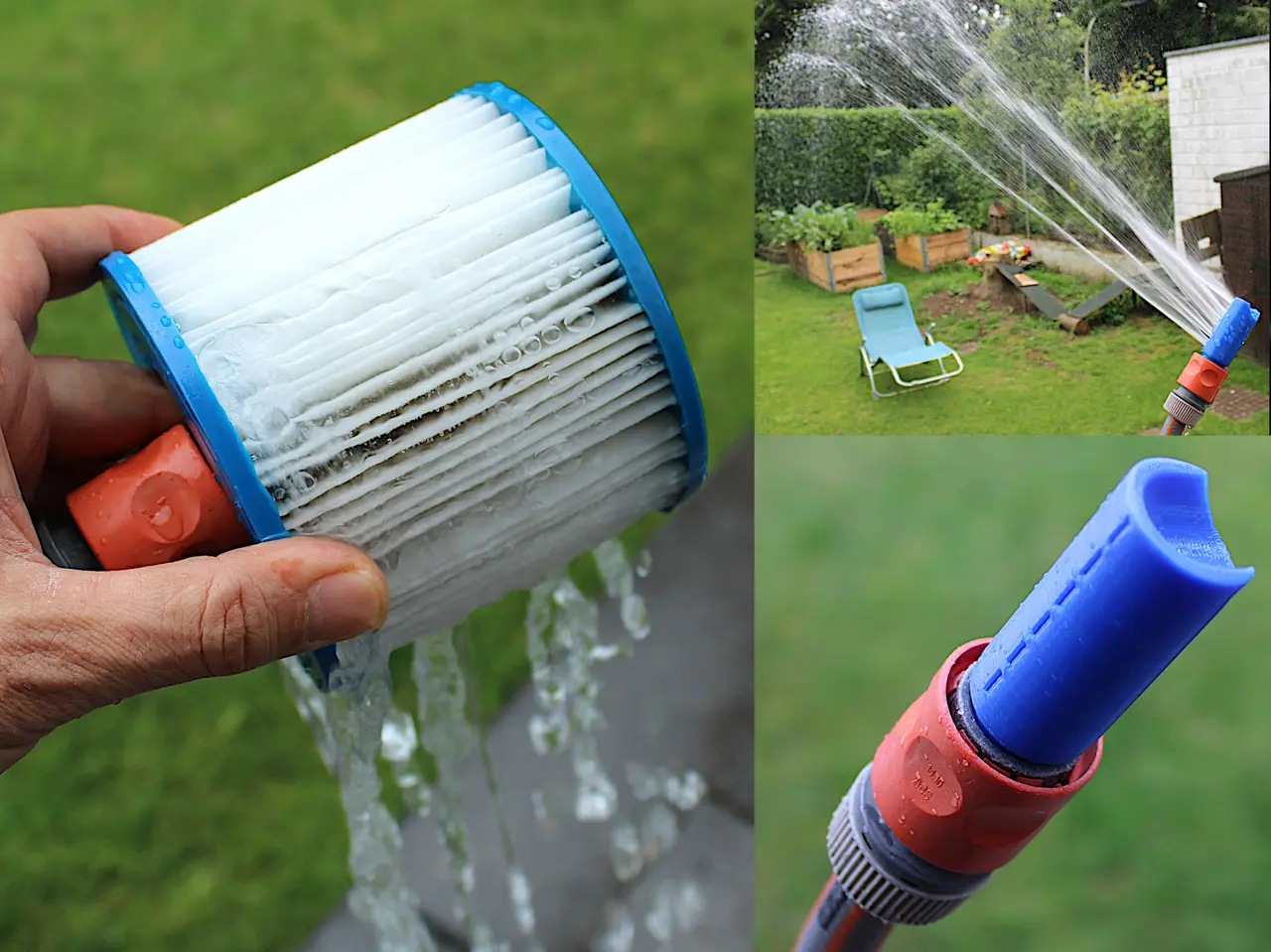

High pressure nozzle to clean your pool filter cartridge from inside out.

There are several commercial cartridge cleaners available. But all those just try to clean in the same direction as the dirt entered the filter. From the outside, partly pressing the dirt deeper into the filter and its corners.

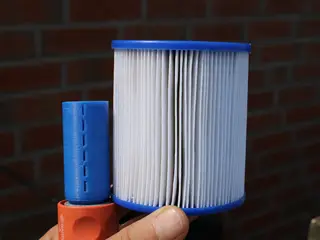

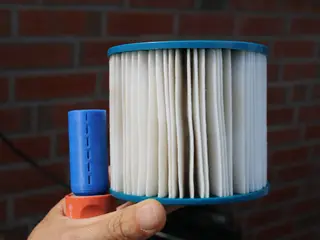

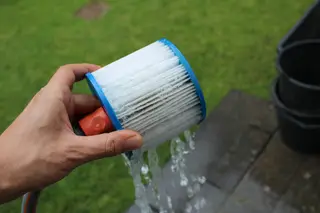

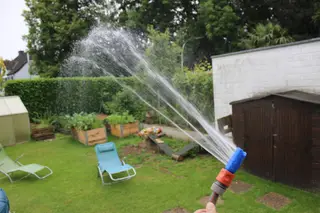

This cartridge cleaner is meant to be put inside the core of filters wider than 3cm, to clean it from the inside out using 6 high pressure outlets of the nozzle. Can also be used as a general high pressure nozzle using the thumb rest. Update: 80mm tall version posted. The original model extends 50mm into filters and the 80mm version is meant for larger filters or to clean 88mm high filters faster. This version has only ~70-80% of the original pressure. But can clean tall filters faster. Assembly: - Print this Gardena 16mm O-Ring Gasket using TPU or other Flex material. - Alternatively salvage an o-ring gasket from another gardena utility and swap it over like shown in the pictures.
