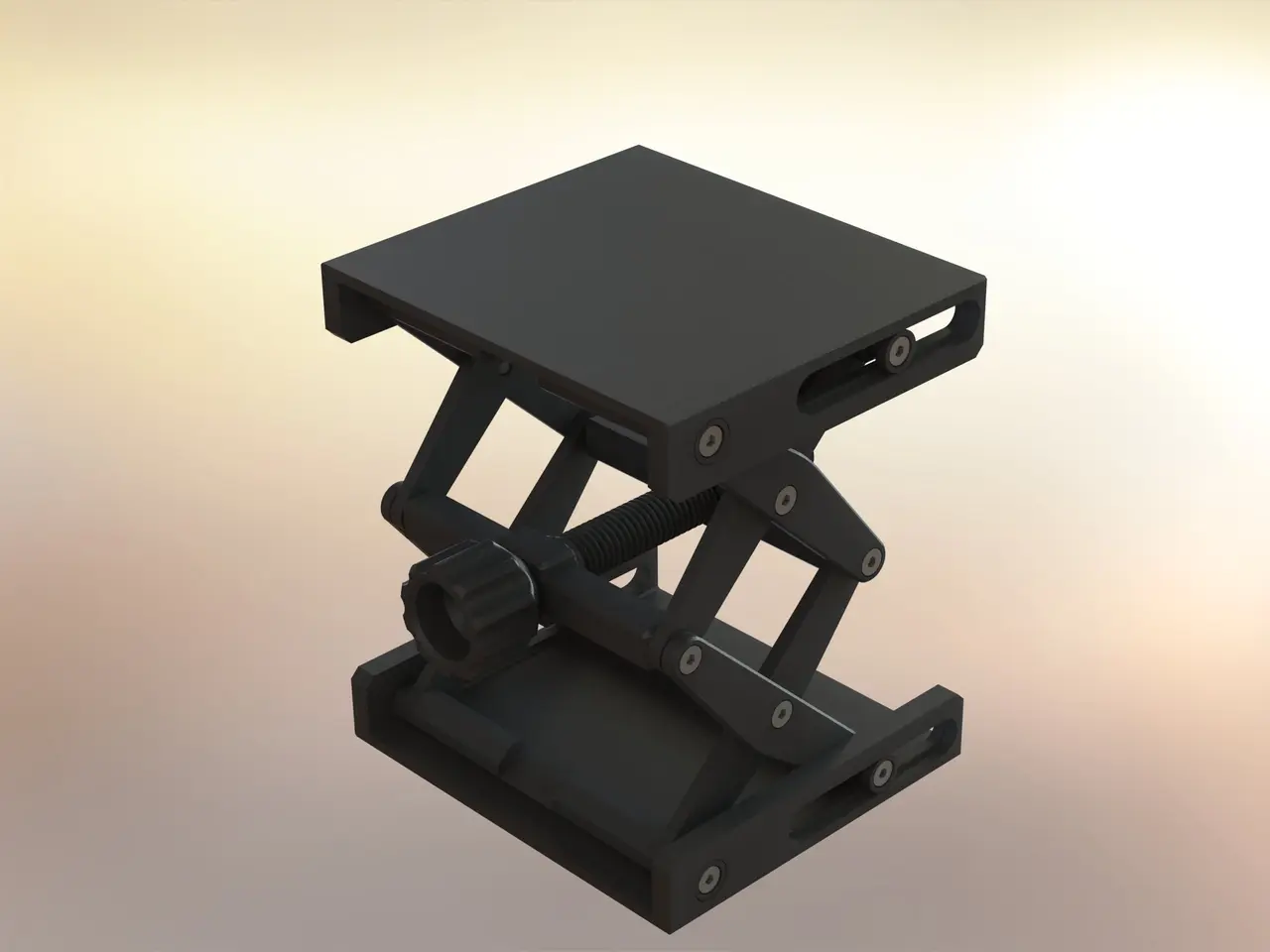

Platform Jack with M3 Screws and Inserts
por Joseph McDonald en Thingiverse
I really liked the original, it printed great. I thought it would be fun to design one with M3 screws and heat set M3 inserts to have a platform jack that is a little more durable. I use mine for positioning a gopro for time lapses and it is quite useful for that. Print with 2 or more outlines. If..
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Joseph McDonald.
Archivos (11)
- Screw_Post_Knob_Side.stl STL · 95 KB
- Scissor_Arm_2.stl STL · 192 KB
- Scissor_Bushing.stl STL · 120 KB
- Scissor_Arm_1.stl STL · 303 KB
- Knob.stl STL · 2,5 MB
- Screw_Post_Threaded_Side.STL STL · 753 KB
- M3_Bushing.stl STL · 144 KB
- Jack_Screw.stl STL · 4,6 MB
- Platform.stl STL · 155 KB
- Platform_Jack.zip ZIP · 4,4 MB
- Jack_Screw_Heat_Set.STL STL · 4,6 MB
- Categoría
- Herramientas
- Formatos
- STL, ZIP
- Descargas
- 15,807
- Publicado
Sobre este modelo

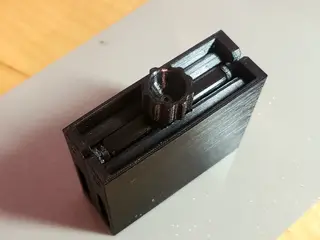

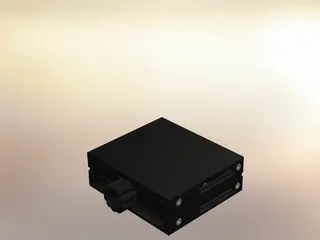

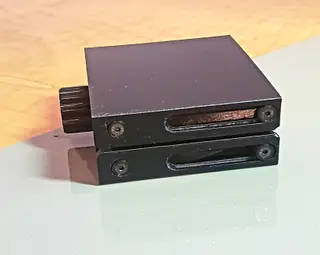

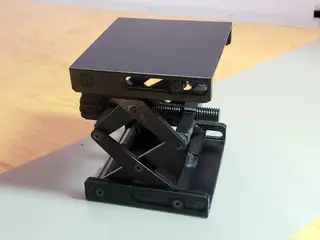

I really liked the original, it printed great. I thought it would be fun to design one with M3 screws and heat set M3 inserts to have a platform jack that is a little more durable. I use mine for positioning a gopro for time lapses and it is quite useful for that. Print with 2 or more outlines. If your printer is bad at bridging the only parts that require support are the scissor arms. Edit: I have included a version of the jack screw that uses a heat set insert instead of a square nut for those that don't own any square nuts.
Descripción original del autor, publicada en Thingiverse.
