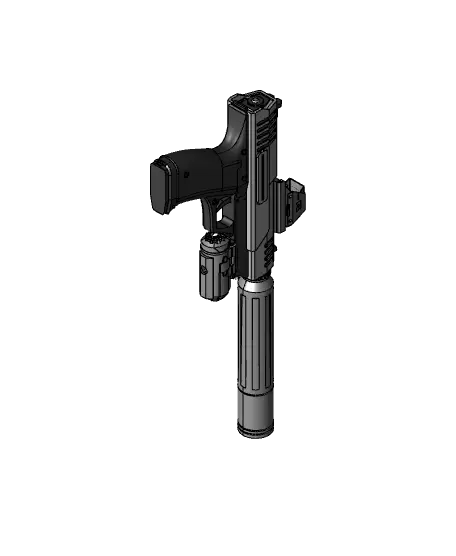

Planetside 2 NS-45 Pilot Prop with Attachments
por Terminal_6 en Thangs
PROP FIREARM, FIRES NO PROJECTILE
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Terminal_6.
Archivos (21)
- NS-45 Pilot 2.1 v21.step STEP · 4,3 MB
- Barrel Detent Cap.stl STL
- Barrel Detent Lever.stl STL
- Barrel.stl STL
- Grip.stl STL
- Mag Catch Cap.stl STL
- Mag Catch Pin.stl STL
- Magazine Catch.stl STL
- Magazine Solid.stl STL
- Slide Lock.stl STL
- Slide Rail.stl STL
- Slide.stl STL
- Trigger Retainer.stl STL
- Trigger.stl STL
- Pilot Suppressor.stl STL
- CCLR Body Pilot 080.stl STL
- CCLR Clamp Pilot 080.stl STL
- NS Laser 2 Pilot Body 2.stl STL
- NS Laser 2 Pilot Clamp.stl STL
- NS-45 Pilot Assembly.pdf PDF
- Barrel Detent Tab.stl STL
- Categoría
- Cosplay y props
- Formatos
- STEP, STL, PDF
- Descargas
- 149
- Publicado
Sobre este modelo

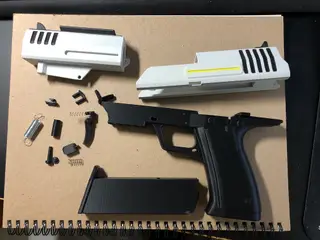

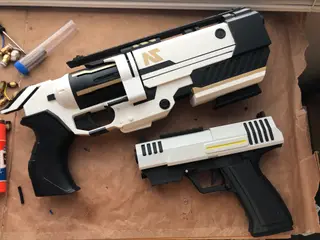

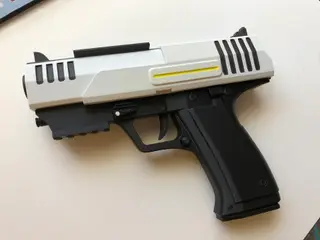

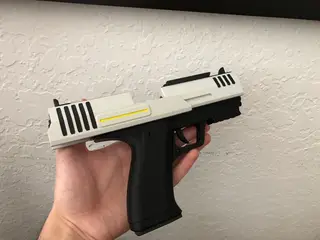

PROP FIREARM, FIRES NO PROJECTILE This is the NS-45 Pilot from the game Planetside 2, with a spring-loaded slide, magazine release, and trigger, as well as a compliment of attachments.
This requires additional hardware to function. You will need an extension spring for the slide and small spring (like you can get from a pen) for the trigger and magazine release. Rods, such as in the breakdown pin in the grip and magazine release button, can be replaced with 3mm brass or steel rod for durability, but this is not necessary.
The attachments require M3 8mm screws and 5.6x2.4mm M3 nut for the sight and laser. I fit a 3V battery, button, and laser diode in the laser, but obviously you don't have to do this. It's modeled fairly specifically for my hardware, so leave a comment if you want the part numbers.
Descripción original del autor, publicada en Thangs.
